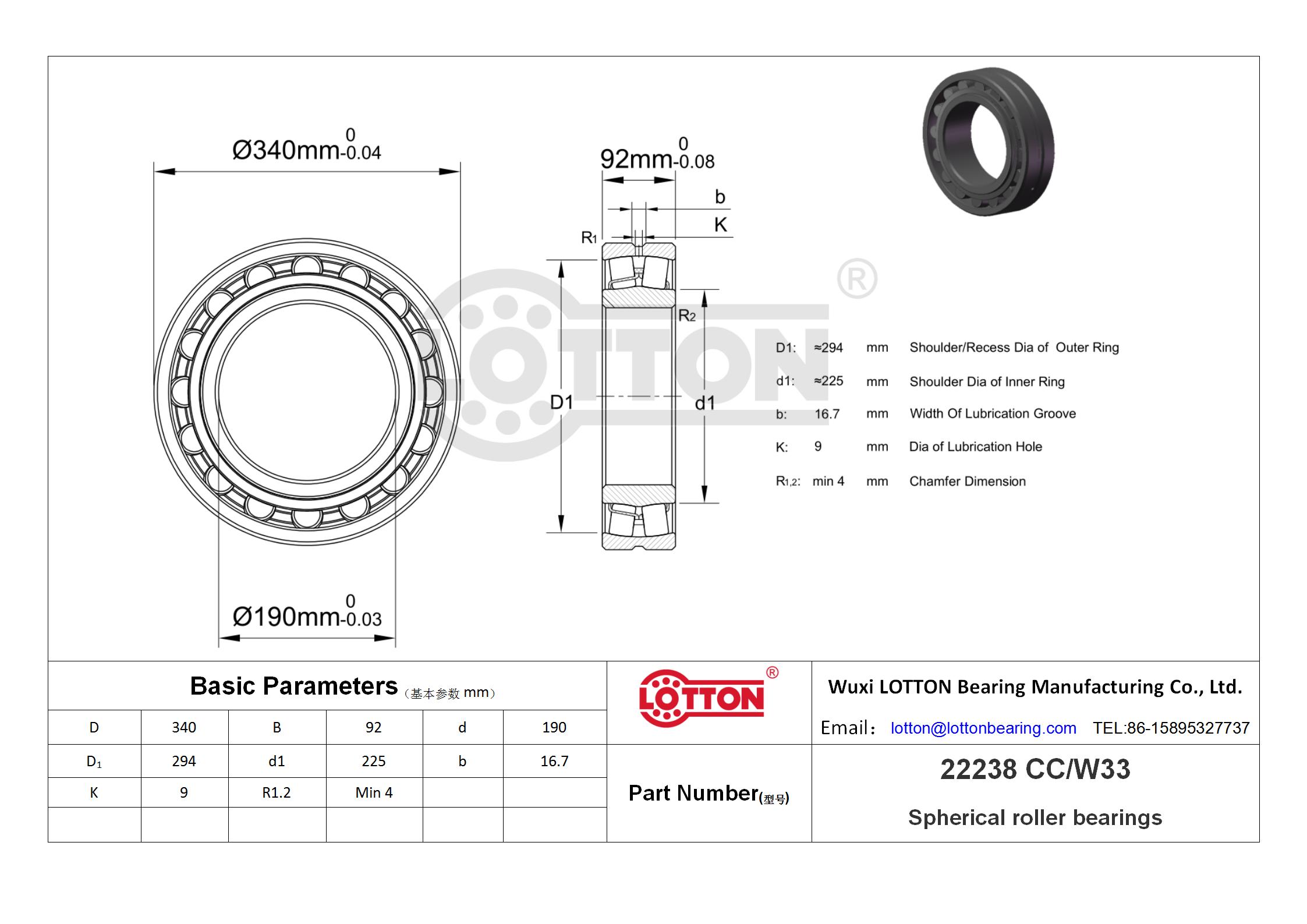

22238 CC/W33 bearing

Product Number	22238 CC/W33
System of Measurement	Metric
Bearing Type	Roller
Roller Bearing Type	Spherical
Bore Type	Straight Bore
For Load Direction	Combined Radial and Thrust
Construction	Double Row
Seal Type	Open
Bore Dia	190 mm
Bore Dia Tolerance	-0.03mm to 0
Outer Dia	340 mm
Outer Dia Tolerance	-0.04mm to 0
Width	92 mm
Width Tolerance	-0.08mm to 0
Shoulder Dia Of Inner Ring	225 mm
Shoulder/Recess Dia Of Outer Ring	294 mm
Width Of Lubrication Groove	16.7 mm
Diameter Of Lubrication Hole	9 mm
Chamfer Dimension	min.4 mm
Ring Material	52100 Chrome Steel
Roller Material	52100 Chrome Steel
Cage Material	Steel
Dynamic Radial Load	1342 kN
Static Radial Load	1700 kN
Max Speed (X1000 rpm)	2.4
Lubrication	Required
Temperature Range	-30° to 110 °C
Radial Clearance	Standard (Available in C3/C4/C5)
RoHs	Compliant
REACH	Compliant
Weight	35.5 kg
