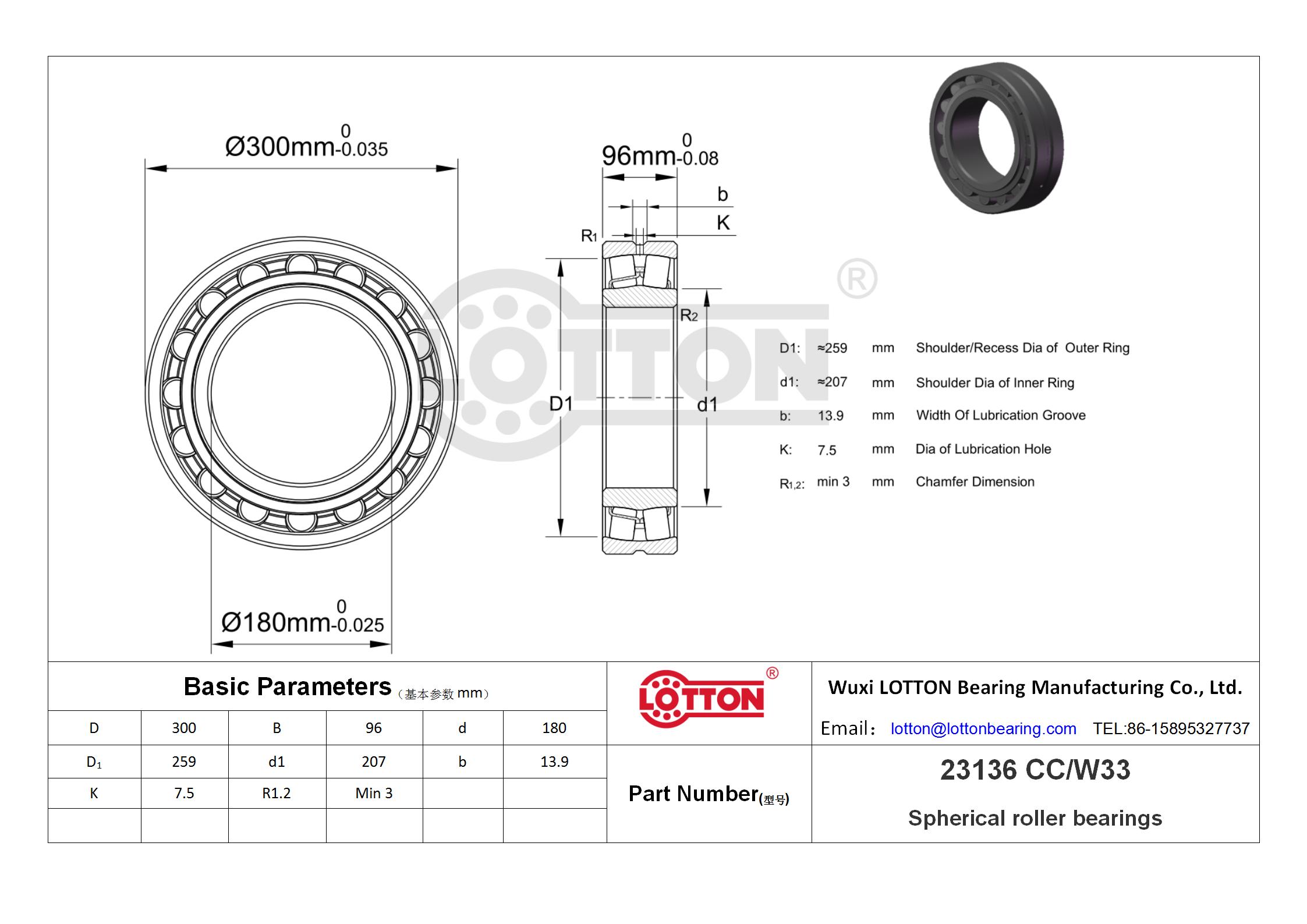

23136 CC/W33 bearing

Product Number	23136 CC/W33
System of Measurement	Metric
Bearing Type	Roller
Roller Bearing Type	Spherical
Bore Type	Straight Bore
For Load Direction	Combined Radial and Thrust
Construction	Double Row
Seal Type	Open
Bore Dia	180 mm
Bore Dia Tolerance	-0.025mm to 0
Outer Dia	300 mm
Outer Dia Tolerance	-0.035mm to 0
Width	96 mm
Width Tolerance	-0.08mm to 0
Shoulder Dia Of Inner Ring	207 mm
Shoulder/Recess Dia Of Outer Ring	259 mm
Width Of Lubrication Groove	13.9 mm
Diameter Of Lubrication Hole	7.5 mm
Chamfer Dimension	min.3 mm
Ring Material	52100 Chrome Steel
Roller Material	52100 Chrome Steel
Cage Material	Steel
Dynamic Radial Load	1263 kN
Static Radial Load	1760 kN
Max Speed (X1000 rpm)	2.2
Lubrication	Required
Temperature Range	-30° to 110 °C
Radial Clearance	Standard (Available in C3/C4/C5)
RoHs	Compliant
REACH	Compliant
Weight	27.5 kg
