| Product Number | SR144 Bearing |
| System of Measurement | imperial |
| Bearing Type | ball |
| For Load Direction | Radial |
| Construction | single column |
| Seal Type | open |

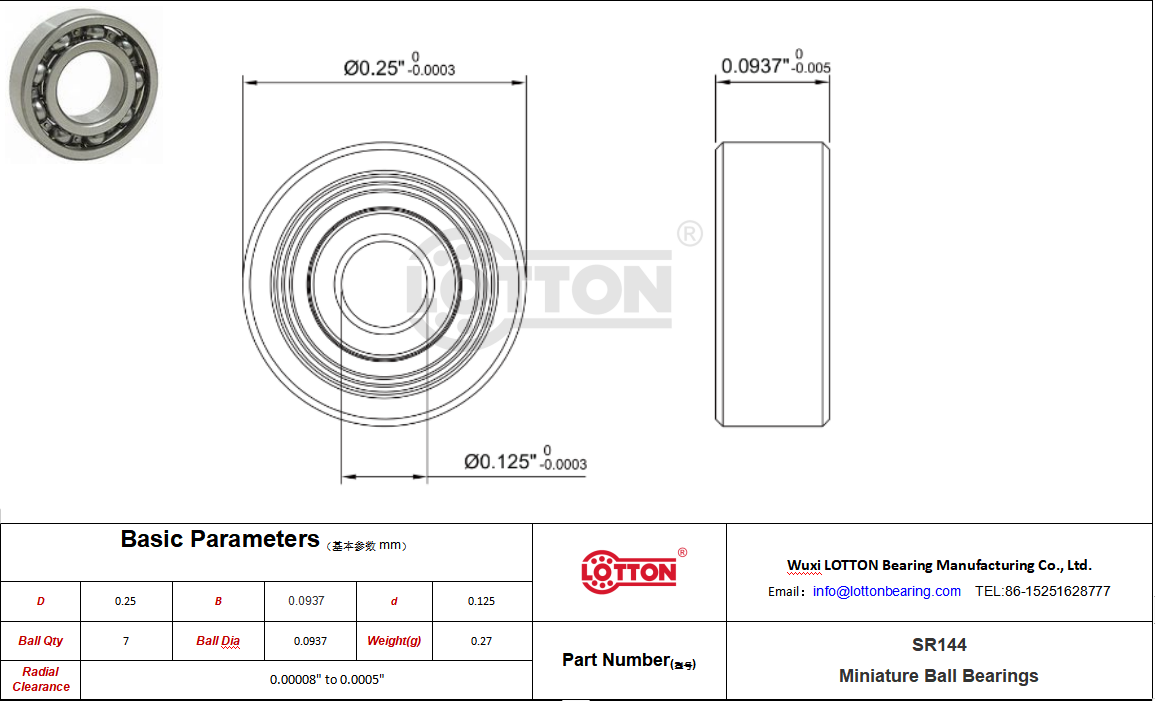

| Bore Dia | 0.125" |
| Bore Dia Tolerance | -0.0003" to 0" |
| Outer Dia | 0.25" |
| Outer Dia Tolerance | -0.0003" to 0" |
| Width(B) | 0.0937" |
| Width Tolerance | -0.005" to 0" |
| Ring Material | 440C stainless steel |
| Ball Material | 440C stainless steel |
| Cage Material | 300 series stainless steel |
| Dynamic Radial Load | 49 lbf |
| Static Radial Load | 15lbf |
| Max Speed (X1000 rpm) | 60.3 |
| Lubrication | Lubricated |
| Shaft Mount Type | push-in |
| Temperature Range | -86 to 230°F |
| ABEC Rating | ABEC1 (ABEC3/5/7 optional) |
| Radial Clearance Trade No. | MC3 (Available in MC1/2/4/5/6) |
| Radial Clearance | 0.00008" to 0.0005" |
| RoHS | conform to |
| REACH | conform to |
| Ball Dia | 0.03941" |
| Ball Qty | 7 |
| Weight | 0.27 |
| Inner ring type | Standard type |
| NMB | DDRI-418 |
| GRW | SS3175 |
| McMaster-Carr ABEC5 | 57155K346 |
| NHBB | SSRI-418 |
| EZO | SR144 |
| McMaster-Carr ABEC7 | 3826T7 5 |
| DYNAROLL | SR144 |
| FAG | SR0816 |
| RMB | UL4008X |
| MPB | S418C |
| LOTTON | SR144 |
| McMaster-Carr ABEC1 | |
| BARDEN | SR144 |
| McMaster-Carr ABEC3 |
| LOTTON | DYNAROLL | EZO | BARDEN | NMB | McMaster-Carr ABEC7 | McMaster-Carr ABEC5 | NHBB | GRW | MPB |
| SR144 | SR144 | SR144 | SR144 | DDRI-418 | 3826T7 | 57155K346 | SSRI-418 | SS3175 | S418C |
| RMB | FAG |
| UL4008X | SR0816 |
