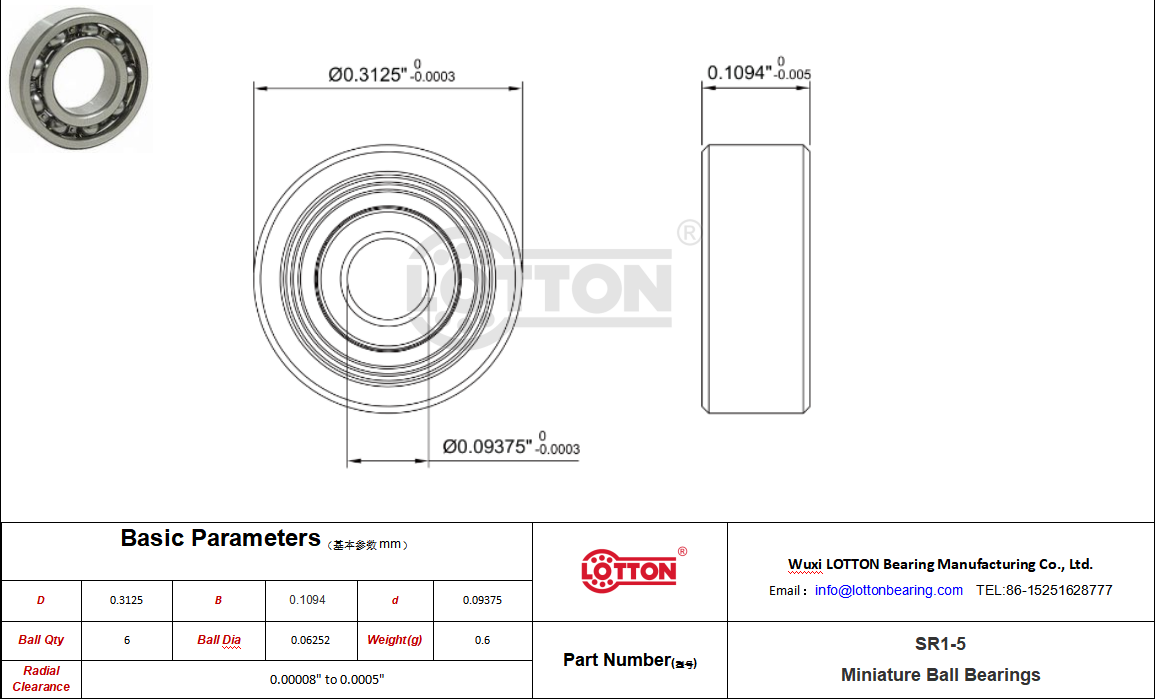

| Product Number | R1-5_Bearing |
| System of Measurement | imperial |
| Bearing Type | ball |
| For Load Direction | Radial |
| Construction | single row |
| Seal Type | open |
| Bore Dia | 0.09375" |
| Bore Dia Tolerance | -0.0003" to 0" |
| Outer Dia | 0.3125" |
| Outer Dia Tolerance | -0.0003" to 0" |
| Width(B) | 0.1094" |
| Width Tolerance | -0.005" to 0" |
| Ring Material | 440C stainless steel |
| Ball Material | 440C stainless steel |
| Cage Material | 300 series stainless steel |
| Dynamic Radial Load | 95lbf |
| Static Radial Load | 29 lbf |
| Max Speed (X1000 rpm) | 54 |
| Lubrication | Lubricated |
| Shaft Mount Type | push-in |
| Temperature Range | -86 to 230°F |
| ABEC Rating | ABEC1 (ABEC3/5/7 optional) |
| Radial Clearance Trade No. | MC3 (Available in MC1/2/4/5/6) |
| Radial Clearance | 0.00008" to 0.0005" |
| RoHS | conform to |
| REACH | conform to |
| Ball Dia | 0.06252" |
| Ball Qty | 6 |
| Weight | 0.6 |
| Inner ring type | Standard type |
| NMB | DDRI-5 |
| GRW | SS3/32 |
| McMaster-Carr ABEC5 | 57155K345 |
| NHBB | SSRI-5 |
| EZO | SR1-5 |
| McMaster-Carr ABEC7 | 3826T6 |
| DYNAROLL | SR1-5 |
| FAG | SR0620 |
| RMB | R3010X |
| MPB | S5C |
| LOTTON | SR1-5 |
| McMaster-Carr ABEC1 | |
| BARDEN | SR1-5 |
| McMaster-Carr ABEC3 |
| LOTTON | DYNAROLL | EZO | BARDEN | NMB | McMaster-Carr ABEC7 | McMaster-Carr ABEC5 | NHBB | GRW | MPB |
| SR1-5 | SR1-5 | SR1-5 | SR1-5 | DDRI-5 | 3826T6 | 57155K345 | SSRI-5 | SS3/32 | S5C |
| RMB | FAG |
| R3010X | SR0620 |
