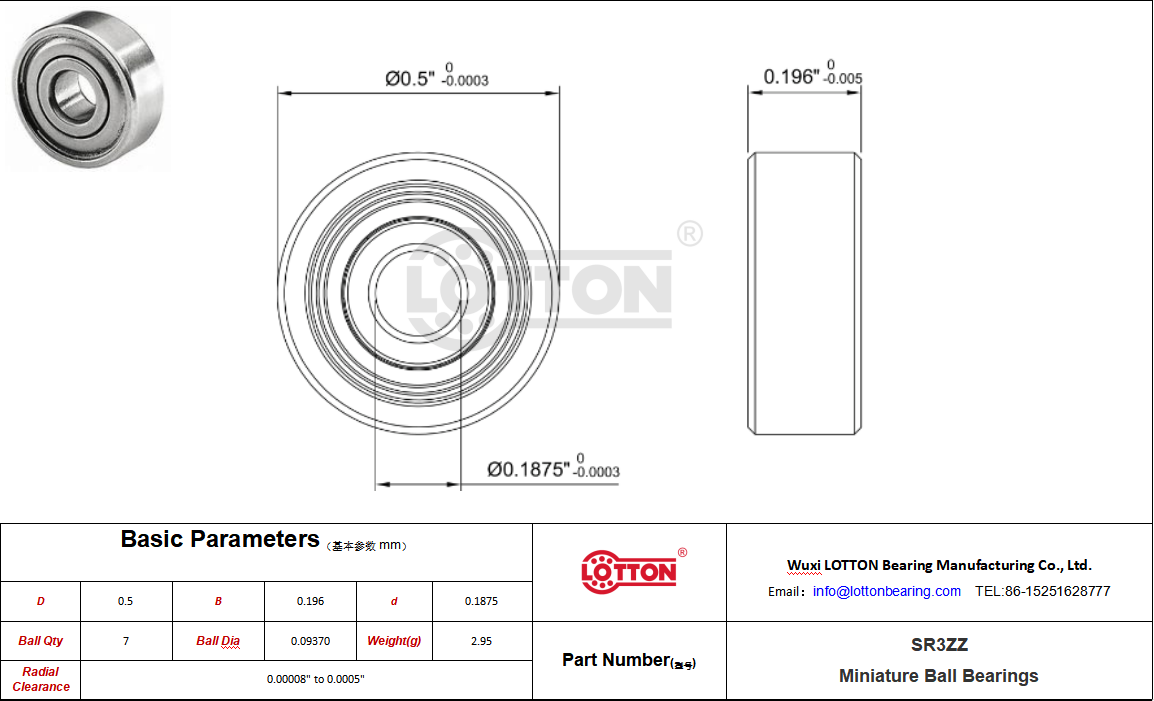

| Product Number | SR3ZZ Bearing |
| System of Measurement | imperial |
| Bearing Type | ball |
| For Load Direction | Radial |
| Construction | single column |
| Seal Type | metal dust cover |
| Bore Dia | 0.1875" |
| Bore Dia Tolerance | -0.0003" to 0" |
| Outer Dia | 0.5" |
| Outer Dia Tolerance | -0.0003" to 0" |
| Width(B) | 0.196" |
| Width Tolerance | -0.005" to 0" |
| Ring Material | 440C stainless steel |
| Ball Material | 440C stainless steel |
| Cage Material | 300 series stainless steel |
| Dynamic Radial Load | 224 lbf |
| Static Radial Load | 79 lbf |
| Max Speed (X1000 rpm) | 38.7 |
| Lubrication | Lubricated |
| Shaft Mount Type | push-in |
| Temperature Range | -86 to 230°F |
| ABEC Rating | ABEC1 (ABEC3/5/7 optional) |
| Radial Clearance Trade No. | MC3 (Available in MC1/2/4/5/6) |
| Radial Clearance | 0.00008" to 0.0005" |
| RoHS | conform to |
| REACH | conform to |
| Ball Dia | 0.09370" |
| Ball Qty | 7 |
| Weight | 2.95g |
| Inner ring type | Standard type |
| NMB | DDR-3ZZ |
| GRW | SS3/16-2Z |
| McMaster-Carr ABEC5 | |
| NHBB | SSR-3ZZ |
| EZO | SR3ZZ |
| McMaster-Carr ABEC7 | 3759T55 |
| DYNAROLL | SR3ZZ |
| FAG | SR32Z |
| RMB | RV6016X |
| MPB | SR3CHH |
| LOTTON | SR3ZZ |
| McMaster-Carr ABEC1 | 6138K53 |
| BARDEN | SR3ZZ |
| McMaster-Carr ABEC3 |
| LOTTON | DYNAROLL | EZO | BARDEN | NMB | McMaster-Carr ABEC7 | NHBB | McMaster-Carr ABEC1 | GRW | MPB |
SR3ZZ | SR3ZZ | SR3ZZ | SR3ZZ | DDR-3ZZ | 3759T55 | SSR-3ZZ | 6138K53 | SS3/16-2Z | SR3CHH |
RMB | FAG |
| RV6016X | SR32Z |
