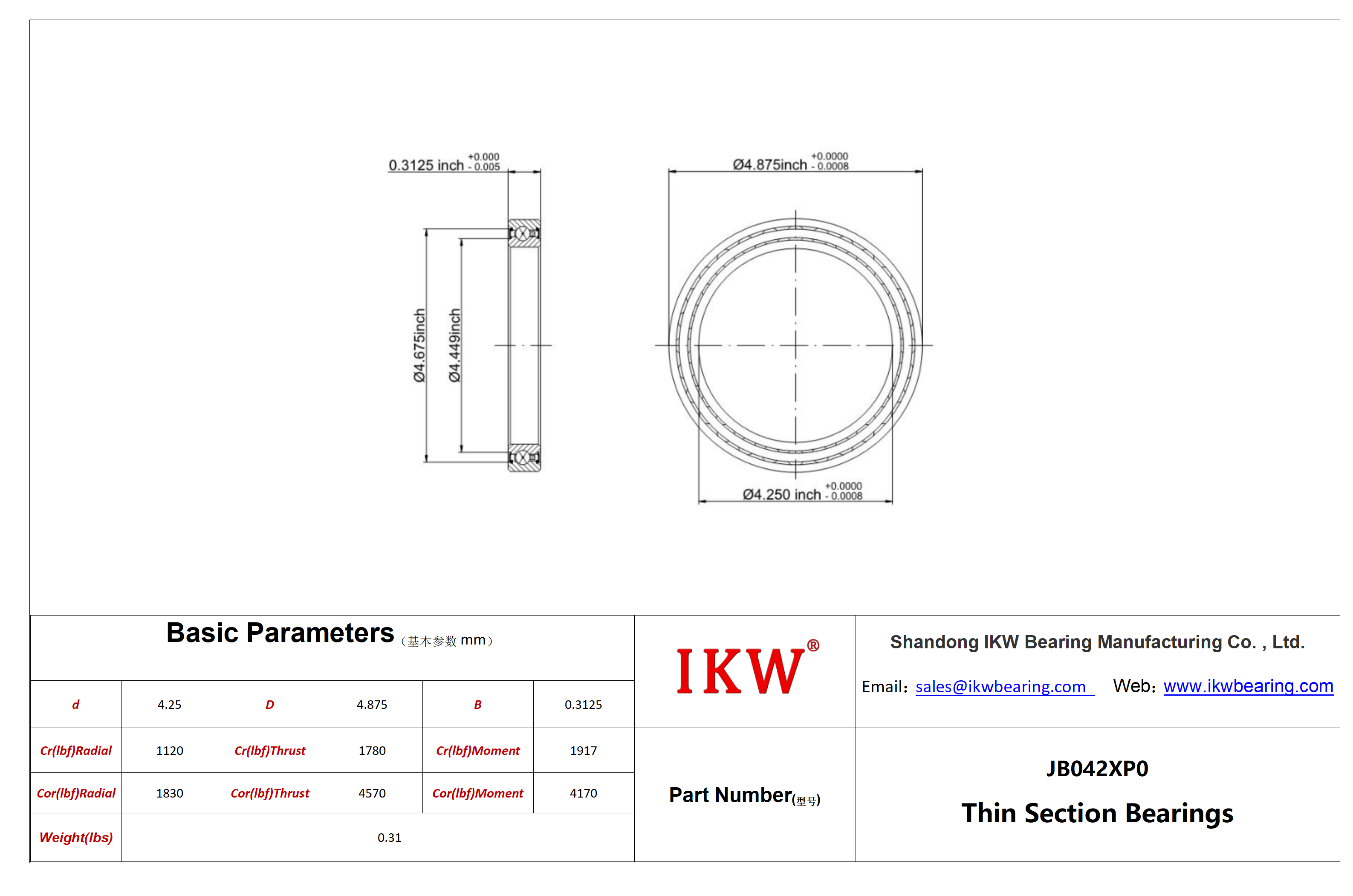

| Product Number | JB042XP0 Bearing |
| Bearing Type | Ball |
| For Load Direction | Four Point |
| Construction | Single Row |
| Seal Type | Sealed |
| Cross Section | 5/16" x 5/16" |
| Part Number | JB042XP0 |
| For Shaft Diameter | 4.250" |
| Bore Dia (d) | 4.250" |
| Bore Dia Tolerance | -0.0008"– 0" |
| For Housing ID | 4.875" |
| Outer Dia (D) | 4.875" |
| Outer Dia Tolerance | -0.0008"– 0" |
| Width (B) | 0.3125" |
| Width Tolerance | +.000 –.005" |
| Land dia.L1 | 4.449" |
| Land dia.L2 | 4.675" |
| Ring Material | 52100 Chrome steel |
| Ball Material | 52100 Chrome steel |
| Cage Material | Brass |
| Dynamic Radial(lbs) | 1,120 |
| Dynamic Thrust(lbs) | 1,780 |
| Dynamic Moment(lbs) | 1,917 |
| Static Radial(lbs) | 1,830 |
| Static Thrust(lbs) | 4,570 |
| Static Moment(lbs) | 4,170 |
| Lubrication | Lubricated |
| Shaft Mount Type | Press Fit |
| Temperature Range | -30° to 110 °C |
| ABEC Rating | ABEC-1 |
| Radial Clearance | 0.0000 – 0.0005" |
| RoHS | Compliant |
| Weight (lbs) | 0.310 |
JB042XP0 Bearings/Inch Size RealiSlim Sealed Bearings/Thin Section Bearings/JB042XP0 Bearings
