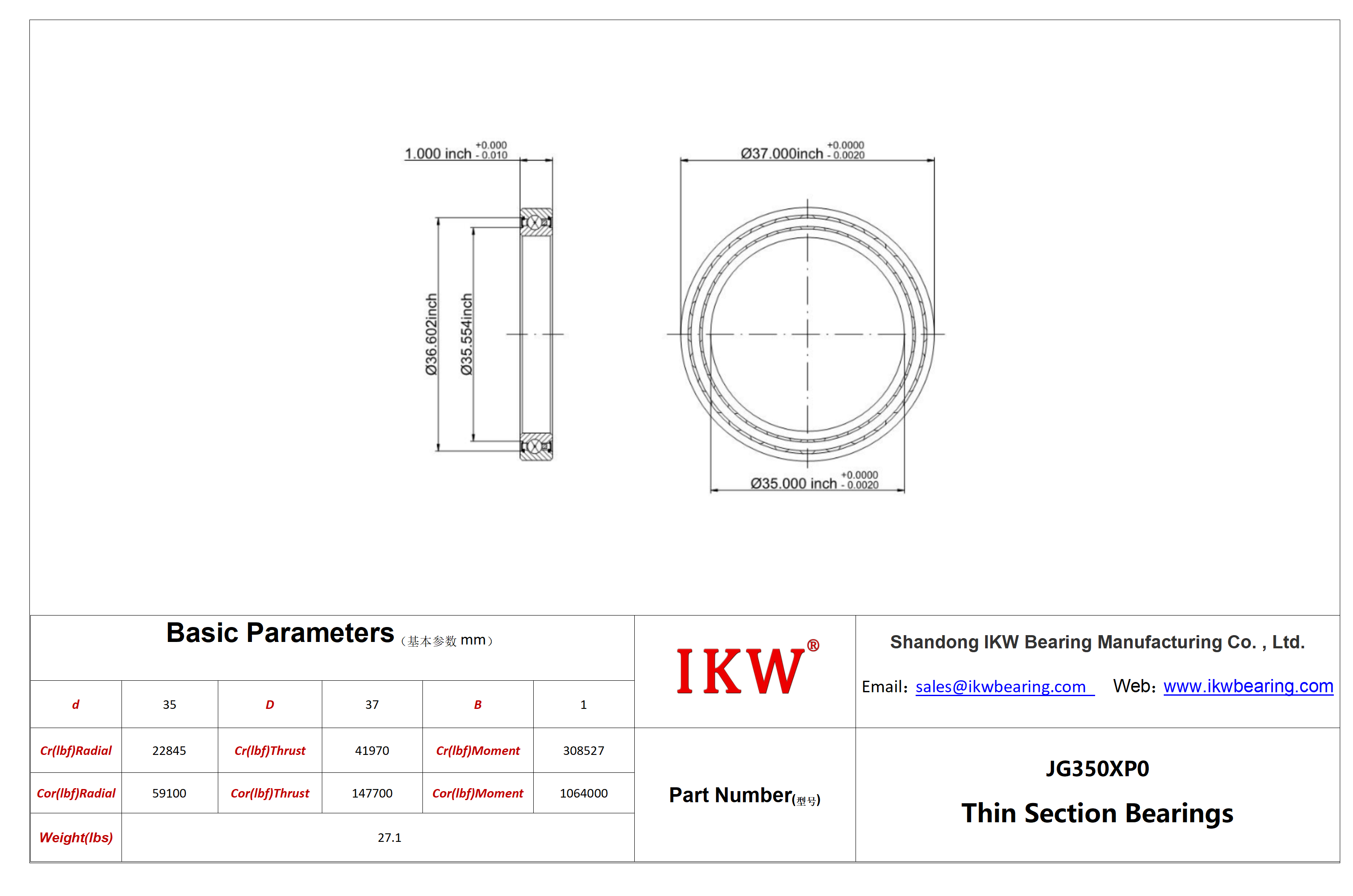

| Product Number | JG350XP0 Bearing |
| Bearing Type | Ball |
| For Load Direction | Four Point |
| Construction | Single Row |
| Seal Type | Sealed |
| Cross Section | 1" x 1" |
| Part Number | JG350XP0 |
| For Shaft Diameter | 35.000" |
| Bore Dia (d) | 35.000" |
| Bore Dia Tolerance | -0.0020"- 0" |
| For Housing ID | 37.000" |
| Outer Dia (D) | 37.000" |
| Outer Dia Tolerance | -0.0020"- 0" |
| Width (B) | 1" |
| Width Tolerance | +.000 –.010" |
| Land dia.L1 | 35.554 |
| Land dia.L2 | 36.602" |
| Ring Material | 52100 Chrome steel |
| Ball Material | 52100 Chrome steel |
| Cage Material | Brass |
| Dynamic Radial(lbs) | 22,845 |
| Dynamic Thrust(lbs) | 41,970 |
| Dynamic Moment(lbs) | 308,527 |
| Static Radial(lbs) | 59,100 |
| Static Thrust(lbs) | 147,700 |
| Static Moment(lbs) | 1,064,000 |
| Lubrication | Lubricated |
| Shaft Mount Type | Press Fit |
| Temperature Range | -30° to 110 °C |
| ABEC Rating | ABEC-1 |
| Radial Clearance | 0.0000 – 0.0005" |
| RoHS | Compliant |
| Weight (lbs) | 27.100 |
JG350XP0 Bearings/Inch Size RealiSlim Sealed Bearings/Thin Section Bearings/JG350XP0 Bearings
