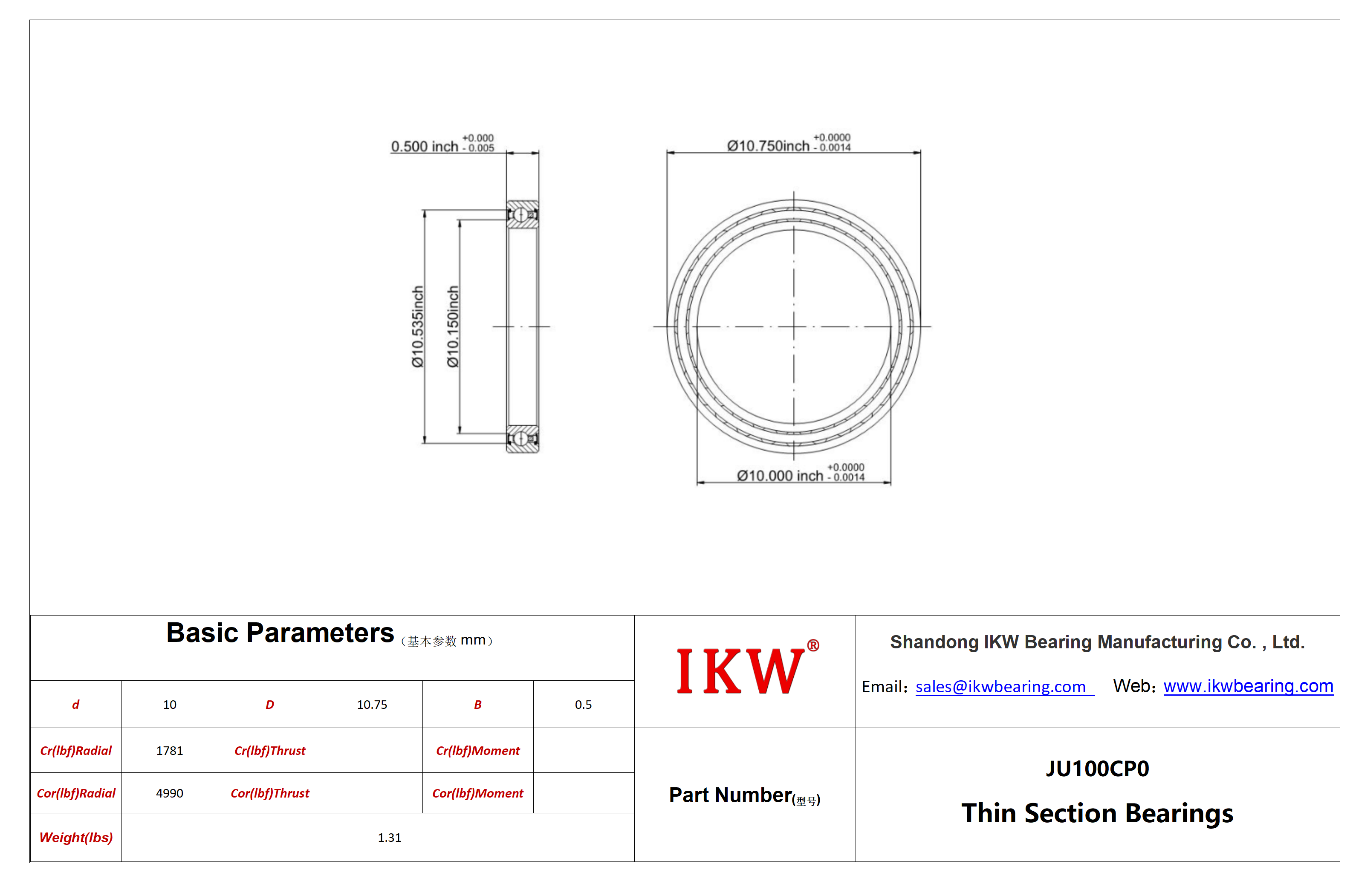

| Product Number | JU100CP0 Bearing |
| Bearing Type | Ball |
| For Load Direction | Radial |
| Construction | Single Row |
| Seal Type | Sealed |
| Cross Section | 1/2" x 3/8" |
| Part Number | JU100CP0 |
| For Shaft Diameter | 10.000" |
| Bore Dia (d) | 10.000" |
| Bore Dia Tolerance | -0.0014"– 0" |
| For Housing ID | 10.750" |
| Outer Dia (D) | 10.750" |
| Outer Dia Tolerance | -0.0014"– 0" |
| Width (B) | 0.5" |
| Width Tolerance | +.000 –.005" |
| Land dia.L1 | 10.150" |
| Land dia.L2 | 10.150" |
| Ring Material | 52100 Chrome steel |
| Ball Material | 52100 Chrome steel |
| Cage Material | Brass |
| Dynamic Radial(lbs) | 1781 |
| Dynamic Thrust(lbs) | |
| Dynamic Moment(lbs) | |
| Static Radial(lbs) | 4990 |
| Static Thrust(lbs) | |
| Static Moment(lbs) | |
| Lubrication | Lubricated |
| Shaft Mount Type | Press Fit |
| Temperature Range | -30° to 110 °C |
| ABEC Rating | ABEC-1 |
| Radial Clearance | 0.0000 – 0.0005" |
| RoHS | Compliant |
| Weight (lbs) | 1.310 |
JU100CP0 Bearings/Inch Size RealiSlim Sealed Bearings/Thin Section Bearings/JU100CP0 Bearings
