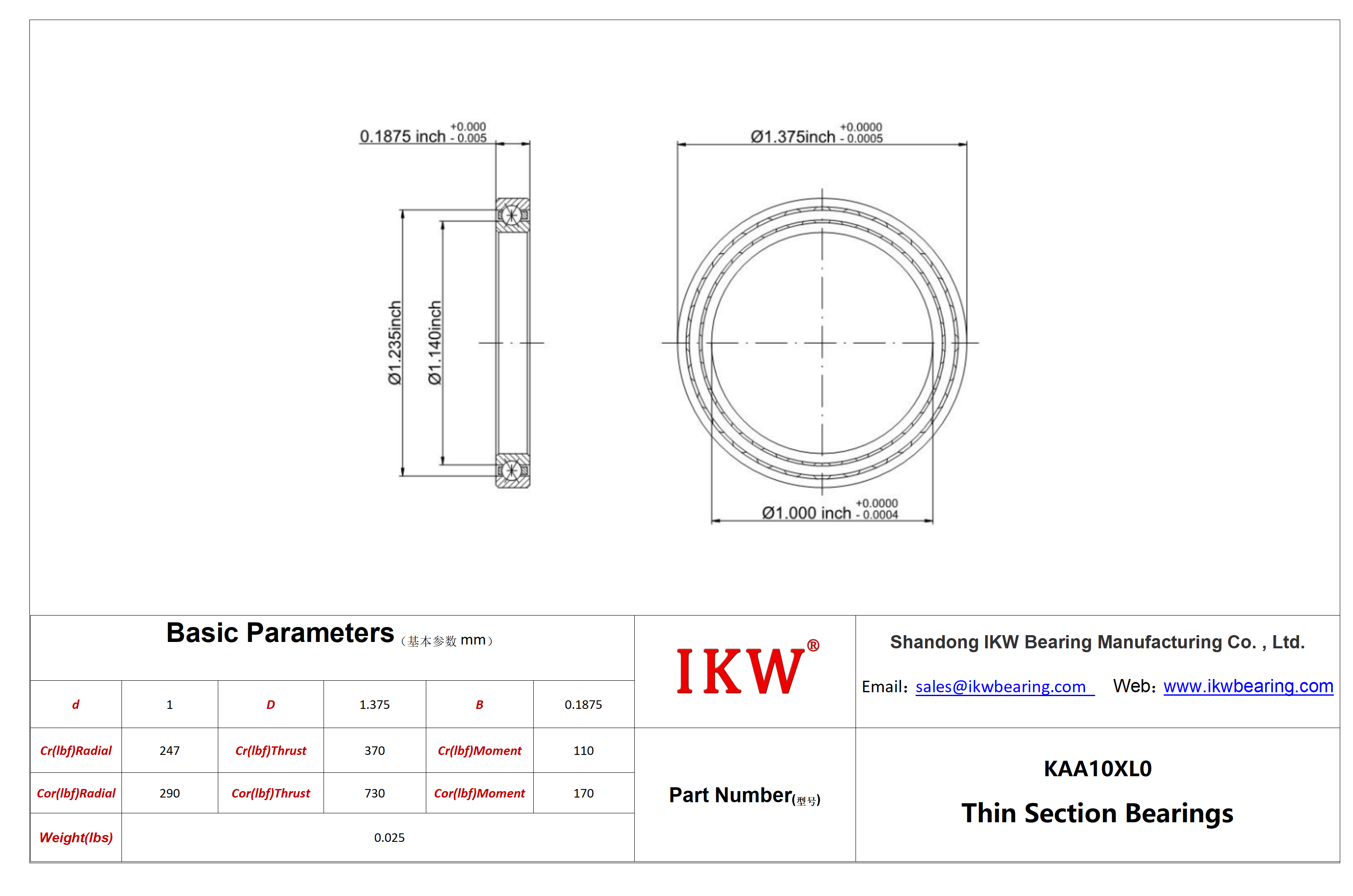

| Product Number | KAA10XL0 Bearing |
| Bearing Type | Ball |
| For Load Direction | Four Point |
| Construction | Single Row |
| Contact Angle | |
| Seal Type | Open |
| Cross Section | 3/16" x 3/16" |
| Part Number | KAA10XL0 |
| For Shaft Diameter | 1.000" |
| Bore Dia (d) | 1.000" |
| Bore Dia Tolerance | -0.0004"– 0" |
| For Housing ID | 1.375" |
| Outer Dia (D) | 1.375" |
| Outer Dia Tolerance | -0.0005"– 0" |
| Width (B) | 0.1875" |
| Width Tolerance | +.000 –.005" |
| Land dia.L1 | 1.140" |
| Land dia.L2 | 1.235" |
| C'Bore dia.L3 | |
| Ring Material | 52100 Chrome steel |
| Ball Material | 52100 Chrome steel |
| Cage Material | Nylon |
| Dynamic(lbf)Radial | 247 |
| Dynamic(lbf)Thrust | 370 |
| Dynamic(lbf)Moment | 110 |
| Static (lbf)Radial | 290 |
| Static (lbf)Thrust | 730 |
| Static (lbf)Moment | 170 |
| Lubrication | Lubricated |
| Shaft Mount Type | Press Fit |
| Temperature Range | -30° to 110 °C |
| ABEC Rating | ABEC-1 |
| Radial Clearance | 0.0000 – 0.0005" |
| RoHS | Compliant |
| Weight (lbs) | 0.025 |
KAA10XL0 Bearings /Inch Size RealiSlim Open Bearings/Thin Section Bearings/KAA10XL0 Bearings
