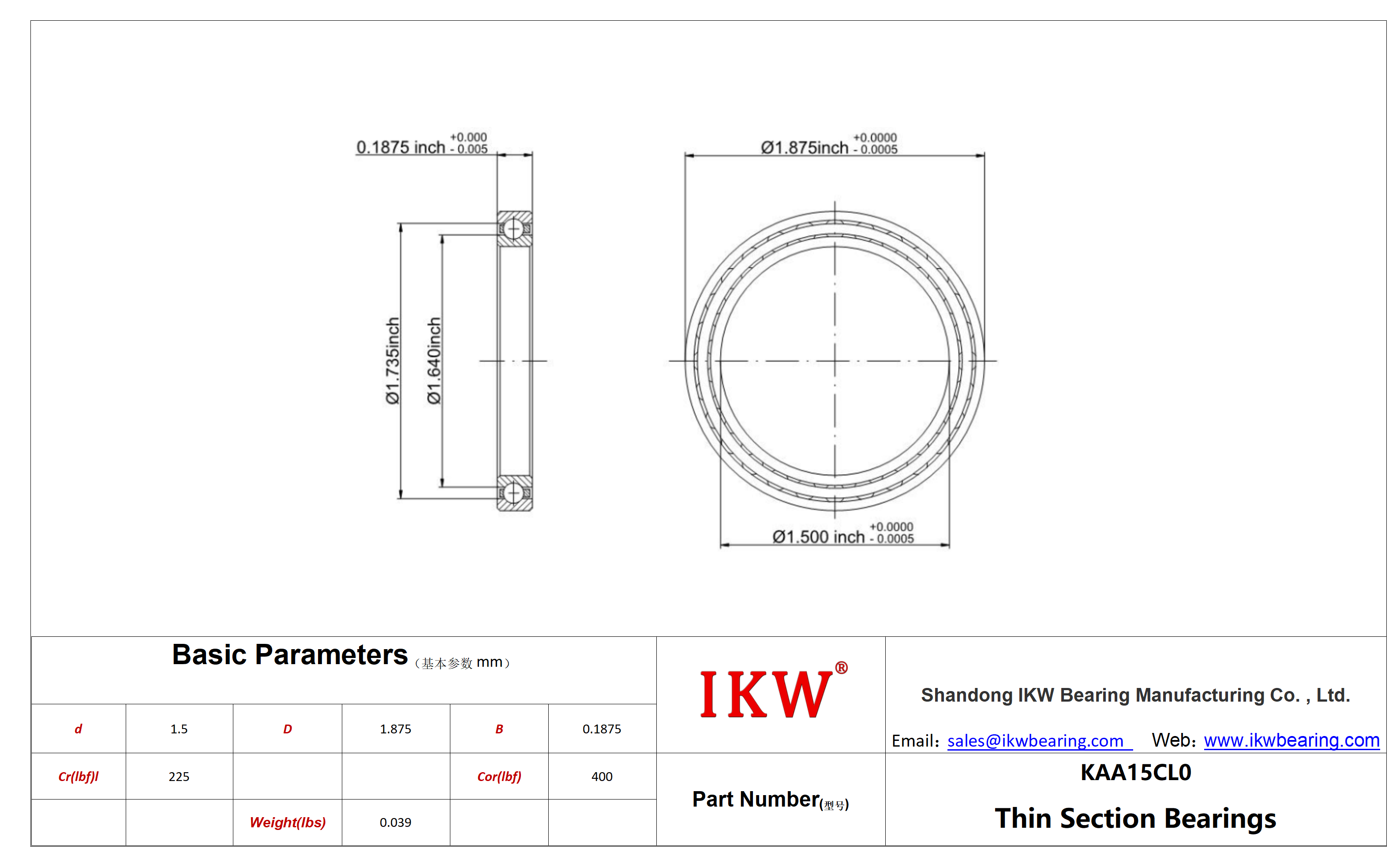

| Product Number | KAA15CL0 Bearing |
| Bearing Type | Ball |
| For Load Direction | Radial |
| Construction | Single Row |
| Contact Angle | |
| Seal Type | Open |
| Cross Section | 3/16" x 3/16" |
| Part Number | KAA15CL0 |
| For Shaft Diameter | 1.500" |
| Bore Dia (d) | 1.500" |
| Bore Dia Tolerance | -0.0005" – 0" |
| For Housing ID | 1.875" |
| Outer Dia (D) | 1.875" |
| Outer Dia Tolerance | -0.0005" – 0" |
| Width (B) | 0.1875" |
| Width Tolerance | +.000 –.005" |
| Land dia.L1 | 1.640" |
| Land dia.L2 | 1.735" |
| C'Bore dia.L3 | |
| Ring Material | 52100 Chrome steel |
| Ball Material | 52100 Chrome steel |
| Cage Material | Nylon |
| Dynamic(lbf)Radial | 225 |
| Dynamic(lbf)Thrust | |
| Dynamic(lbf)Moment | |
| Static (lbf)Radial | 400 |
| Static (lbf)Thrust | |
| Static (lbf)Moment | |
| Lubrication | Lubricated |
| Shaft Mount Type | Press Fit |
| Temperature Range | -30° to 110 °C |
| ABEC Rating | ABEC-1 |
| Radial Clearance | 0.0000 – 0.0005" |
| RoHS | Compliant |
| Weight (lbs) | 0.039 |
KAA15CL0 Bearings /Inch Size RealiSlim Open Bearings/Thin Section Bearings/KAA15CL0 Bearings
