| Product Number | KC040CP0 Bearing |
| Bearing Type | Ball |
| For Load Direction | Radial |
| Construction | Single Row |
| Contact Angle | Open |
| Seal Type | |
| Cross Section | 3/8" x 3/8" |
| Part Number | KC040CP0 |
| For Shaft Diameter | 4.000" |
| Bore Dia (d) | 4.000" |
| Bore Dia Tolerance | -0.0008"- 0" |
| For Housing ID | 4.750" |
| Outer Dia (D) | 4.750" |
| Outer Dia Tolerance | -0.0006"- 0" |
| Width (B) | 0.375" |
| Width Tolerance | +.000 –.005" |
| Land dia.L1 | 4.277" |
| Land dia.L2 | 4.473" |
| C'Bore dia.L3 | |
| Ring Material | 52100 Chrome steel |
| Ball Material | 52100 Chrome steel |
| Cage Material | Brass |
| Dynamic(lbf)Radial | 1073 |
| Dynamic(lbf)Thrust | |
| Dynamic(lbf)Moment | |
| Static (lbf)Radial | 2100 |
| Static (lbf)Thrust | |
| Static (lbf)Moment | |
| Lubrication | Lubricated |
| Shaft Mount Type | Press Fit |
| Temperature Range | -30° to 110 °C |
| ABEC Rating | ABEC-1 |
| Radial Clearance | 0.0000 – 0.0005" |
| RoHS | Compliant |
| Weight (lbs) | 0.450 |

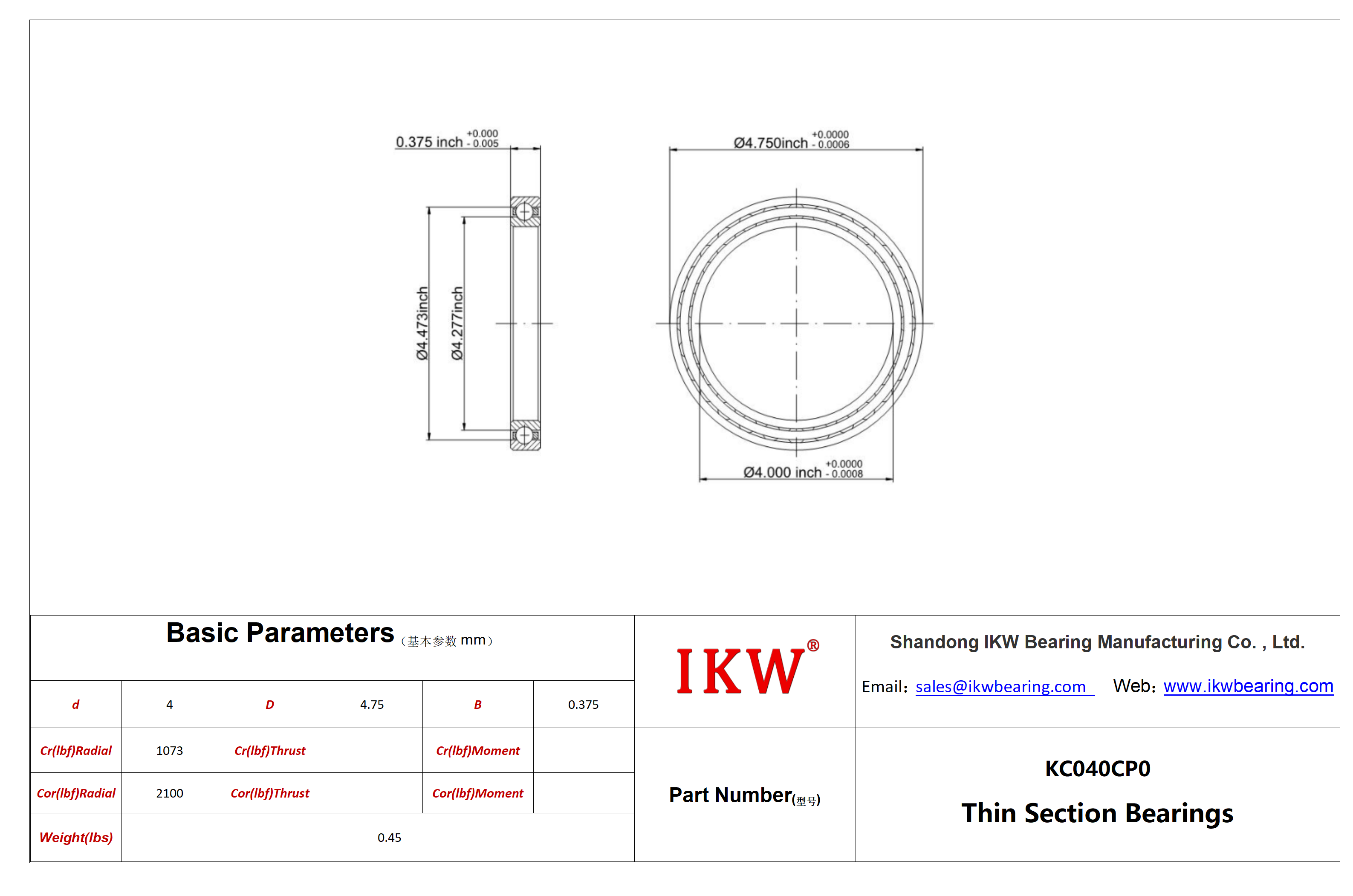

KC040CP0 Bearings/Inch Size RealiSlim Open Bearings/Thin Section Bearings/KC040CP0 Bearings
