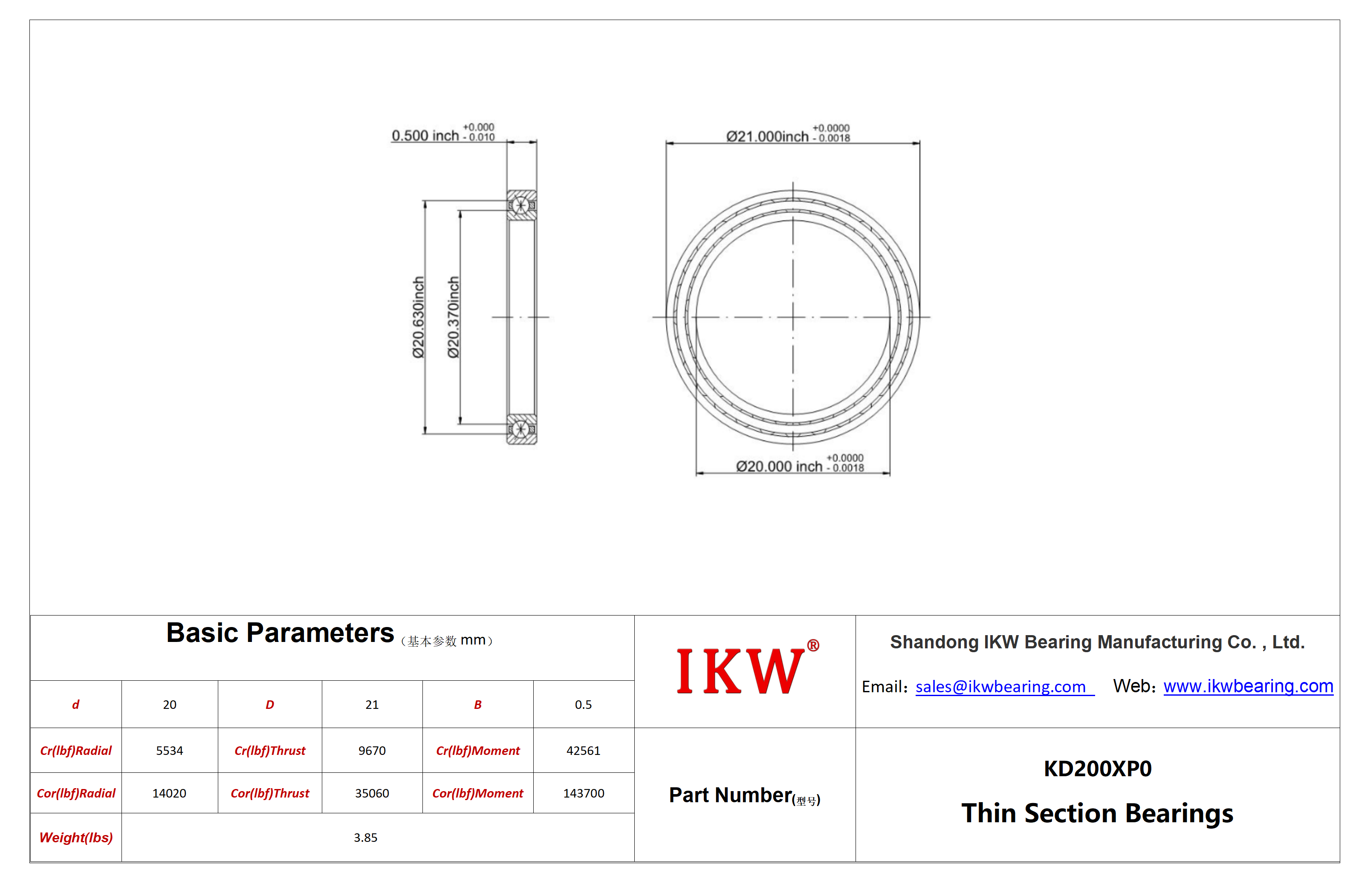

| Product Number | KD200XP0 Bearing |
| Bearing Type | Ball |
| For Load Direction | Four Point |
| Construction | Single Row |
| Contact Angle | |
| Seal Type | Open |
| Cross Section | 1/2" x 1/2" |
| Part Number | KD200XP0 |
| For Shaft Diameter | 20.000" |
| Bore Dia (d) | 20.000" |
| Bore Dia Tolerance | -0.0018"– 0" |
| For Housing ID | 21.000" |
| Outer Dia (D) | 21.000" |
| Outer Dia Tolerance | -0.0018"– 0" |
| Width (B) | 0.5" |
| Width Tolerance | +.000 –.010" |
| Land dia.L1 | 20.370" |
| Land dia.L2 | 20.630" |
| C'Bore dia.L3 | |
| Ring Material | 52100 Chrome steel |
| Ball Material | 52100 Chrome steel |
| Cage Material | Brass |
| Dynamic(lbf)Radial | 5,534 |
| Dynamic(lbf)Thrust | 9,670 |
| Dynamic(lbf)Moment | 42,561 |
| Static (lbf)Radial | 14,020 |
| Static (lbf)Thrust | 35,060 |
| Static (lbf)Moment | 143,700 |
| Lubrication | Lubricated |
| Shaft Mount Type | Press Fit |
| Temperature Range | -30° to 110 °C |
| ABEC Rating | ABEC-1 |
| Radial Clearance | 0.0000 – 0.0005" |
| RoHS | Compliant |
| Weight (lbs) | 3.850 |
KD200XP0 Bearings/Inch Size RealiSlim Open Bearings/Thin Section Bearings/KD200XP0 Bearings
