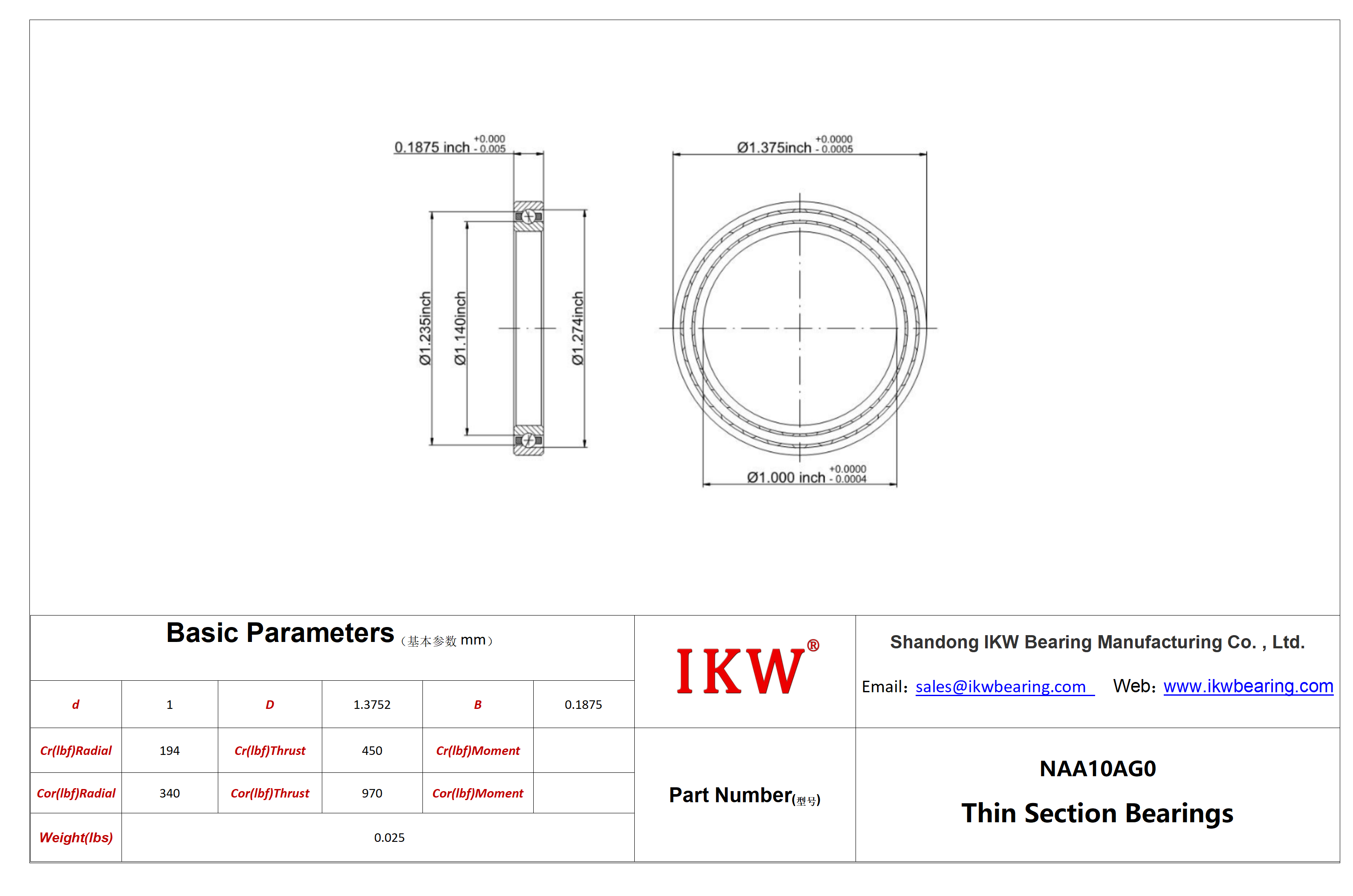

| Product Number | NAA10AG0 Bearing |
| Bearing Type | Ball |
| For Load Direction | Angular |
| Construction | Single Row |
| Contact Angle | 30° |
| Seal Type | Open |
| Surface | Chromium Plating |
| Cross Section | 3/16" x 3/16" |
| Part Number | NAA10AG0 |
| For Shaft Diameter | 1.000" |
| Bore Dia (d) | 1.000" |
| Bore Dia Tolerance | -0.0004"– 0" |
| For Housing ID | 1.3752" |
| Outer Dia (D) | 1.3752" |
| Outer Dia Toleranc | -0.0005"– 0" |
| Width (B) | 0.1875" |
| Width Tolerance | +.000 –.005" |
| Land dia.L1 | 1.140" |
| Land dia.L2 | 1.235" |
| C'Bore dia.L3 | 1.274" |
| Ring Material | 52100 Chrome steel |
| Ball Material | 52100 Chrome steel |
| Cage Material | Nylon |
| Dynamic Radial(lbs) | 194 |
| Dynamic Thrust(lbs) | |
| Dynamic Moment(lbs) | |
| Static Radial(lbs) | 450 |
| Static Thrust(lbs) | 340 |
| Static Moment(lbs) | 970 |
| Lubrication | Lubricated |
| Shaft Mount Type | Press Fit |
| Temperature Range | -30° to 110 °C |
| ABEC Rating | ABEC-1 |
| Radial Clearance | 0.0000 – 0.0005" |
| RoHS | Compliant |
| Weight (lbs) | 0.025 |
