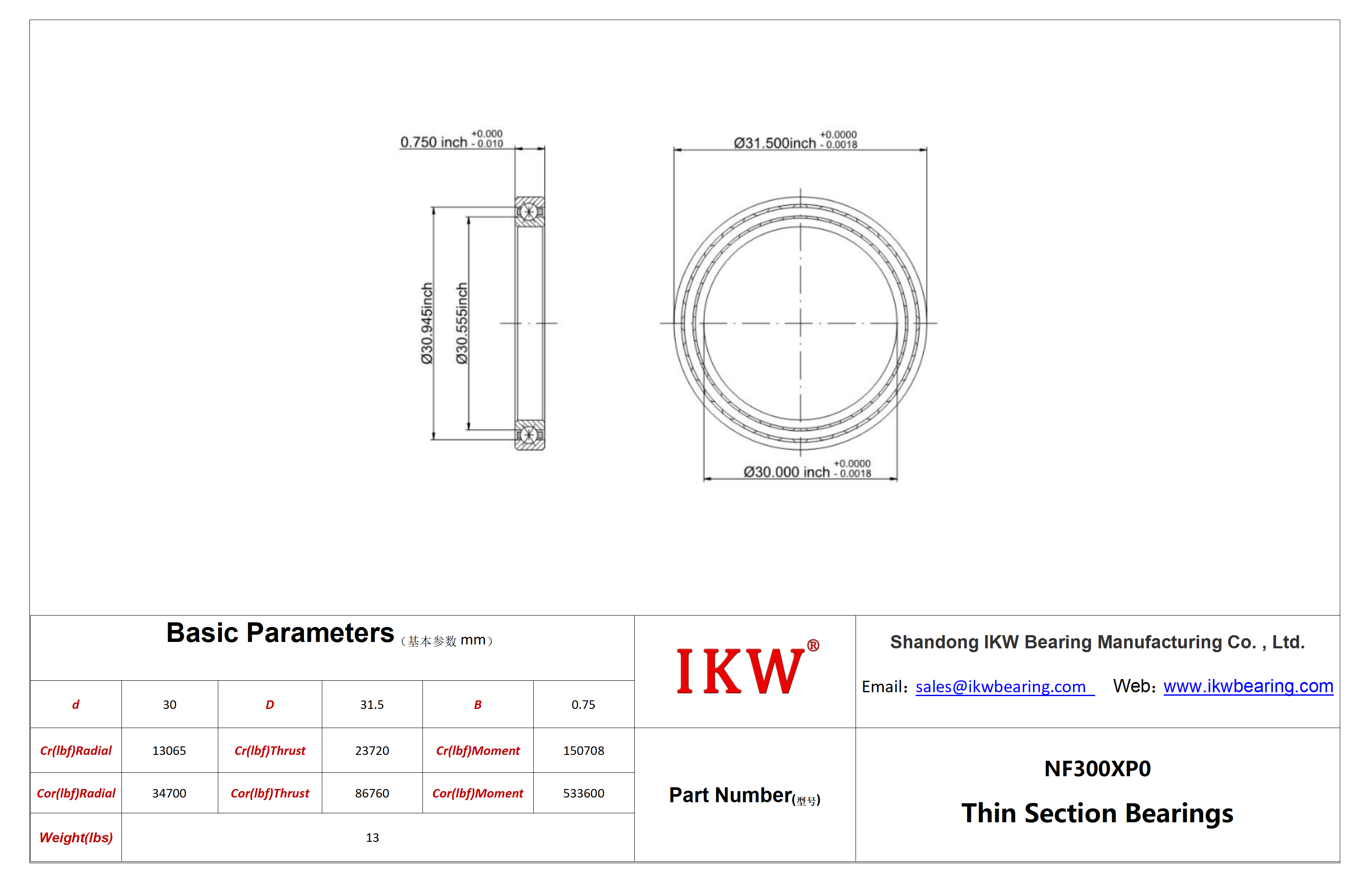

| Product Number | NF300XP0 Bearing |
| Bearing Type | Ball |
| For Load Direction | Four Point |
| Construction | Single Row |
| Contact Angle | |
| Seal Type | Open |
| Surface | Chromium Plating |
| Cross Section | 3/4" x 3/4" |
| Part Number | NF300XP0 |
| For Shaft Diameter | 29.9998" |
| Bore Dia (d) | 29.9998" |
| Bore Dia Tolerance | -0.0018"– 0" |
| For Housing ID | 31.5003" |
| Outer Dia (D) | 31.5003" |
| Outer Dia Toleranc | -0.0018"– 0" |
| Width (B) | 0.75" |
| Width Tolerance | +.000 –.010" |
| Land dia.L1 | 30.555' |
| Land dia.L2 | 30.945" |
| C'Bore dia.L3 | |
| Ring Material | 52100 Chrome steel |
| Ball Material | 52100 Chrome steel |
| Cage Material | Brass |
| Dynamic Radial(lbs) | 13,065 |
| Dynamic Thrust(lbs) | 23,720 |
| Dynamic Moment(lbs) | 150,708 |
| Static Radial(lbs) | 34,700 |
| Static Thrust(lbs) | 86,760 |
| Static Moment(lbs) | 533,600 |
| Lubrication | Lubricated |
| Shaft Mount Type | Press Fit |
| Temperature Range | -30° to 110 °C |
| ABEC Rating | ABEC-1 |
| Radial Clearance | 0.0000 – 0.0005" |
| RoHS | Compliant |
| Weight (lbs) | 13.000 |
