| Product Number | NJ1896MA |
| System of Measurement | Metric |

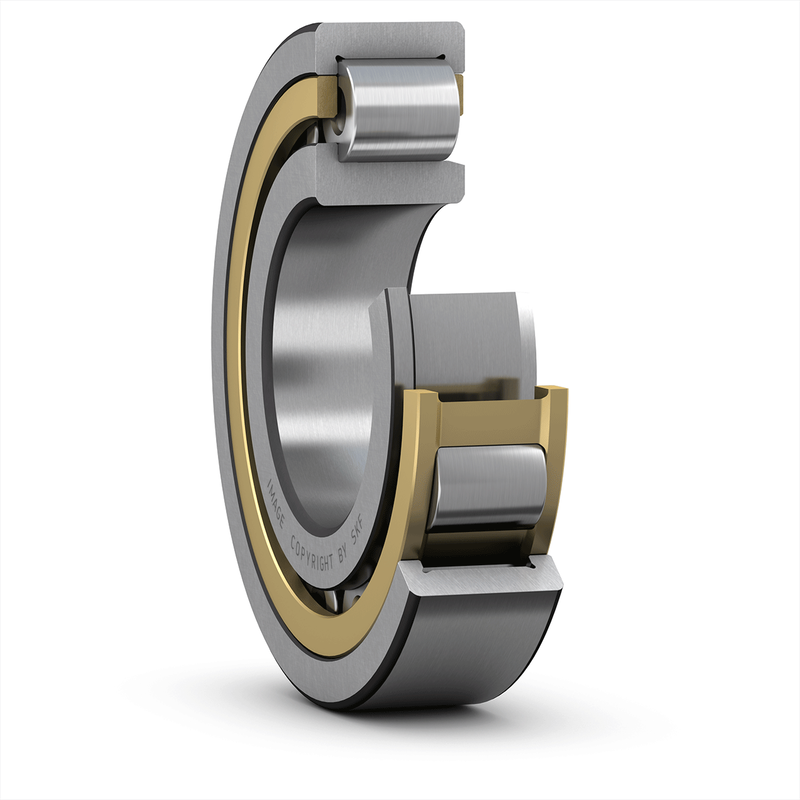

| Roller Bearing Type | Cylindrical |
| For Load Direction | Combined Radial and Thrust |
| Construction | Single Row |
| Inner Ring Type | With Inner Ring |
| Seal Type | Open |

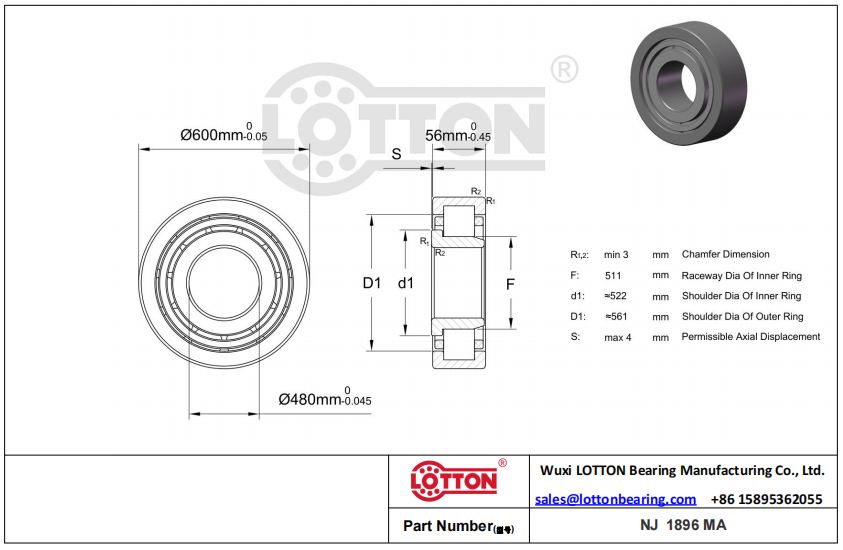

| Bore Dia | 480 mm |
| Bore Dia Tolerance | -0.045mm to 0 |
| Outer Dia | 600 mm |
| Outer Dia Tolerance | -0.05mm to 0 |
| Width | 56 mm |
| Width Tolerance | -0.45mm to 0 |
| Shoulder Diameter Of Inner Ring | |
| Shoulder Diameter Of Outer Ring | 522 mm |
| Raceway Diameter Of Inner Ring | 561 mm |
| Chamfer Dimension r1,2 | 3 mm |
| Chamfer Dimension r3,4 | |
| Permissible Axial Displacement | 4 mm |
| Ring Material | 52100 Chrome Steel |
| Roller Material | 52100 Chrome Steel |
| Dynamic Load Rating | 737 kN |
| Static Load Rating | 1560 kN |
| Max Speed (X1000 rpm) | 1 |
| Lubrication | Grease, Oil |
| Temperature Range | -30° to 110 °C |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 39.5kg |
