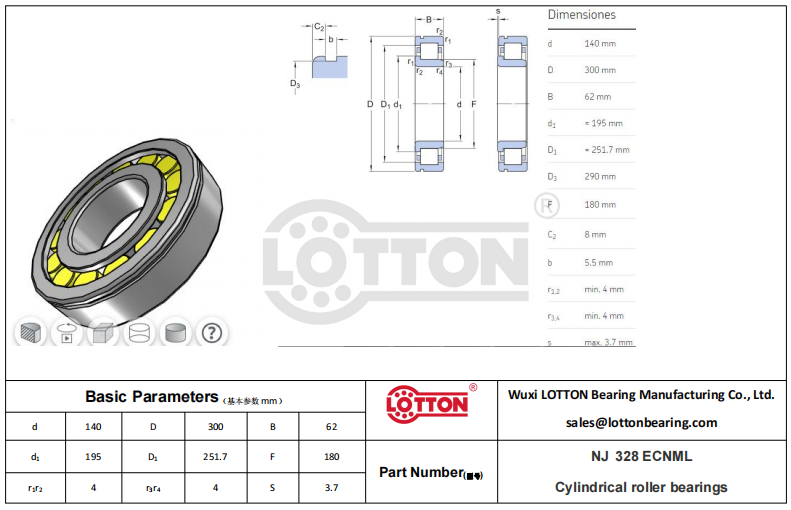

| Product Number | NJ328ECNML |
| System of Measurement | Metric |
| Roller Bearing Type | Cylindrical |
| For Load Direction | Combined Radial and Thrust |
| Construction | Single Row |
| Inner Ring Type | With Inner Ring |
| Seal Type | Open |
| Bore Dia | 140 mm |
| Bore Dia Tolerance | -0.025mm to 0 |
| Outer Dia | 300 mm |
| Outer Dia Tolerance | -0.035mm to 0 |
| Width | 62 mm |
| Width Tolerance | -0.25mm to 0 |
| Shoulder Diameter Of Inner Ring | 195 mm |
| Shoulder Diameter Of Outer Ring | 251.7 mm |
| Raceway Diameter Of Inner Ring | 180 mm |
| Chamfer Dimension r1,2 | 4 mm |
| Chamfer Dimension r3,4 | 4 mm |
| Permissible Axial Displacement | 3.7 mm |
| Ring Material | 52100 Chrome Steel |
| Roller Material | 52100 Chrome Steel |
| Dynamic Load Rating | 780 kN |
| Static Load Rating | 830 kN |
| Max Speed (X1000 rpm) | 4 |
| Lubrication | Grease, Oil |
| Temperature Range | -30° to 110 °C |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 22.4 kg |
| D3 | 290mm |
| C2 | 8 mm |
| b | 5.5 mm |
