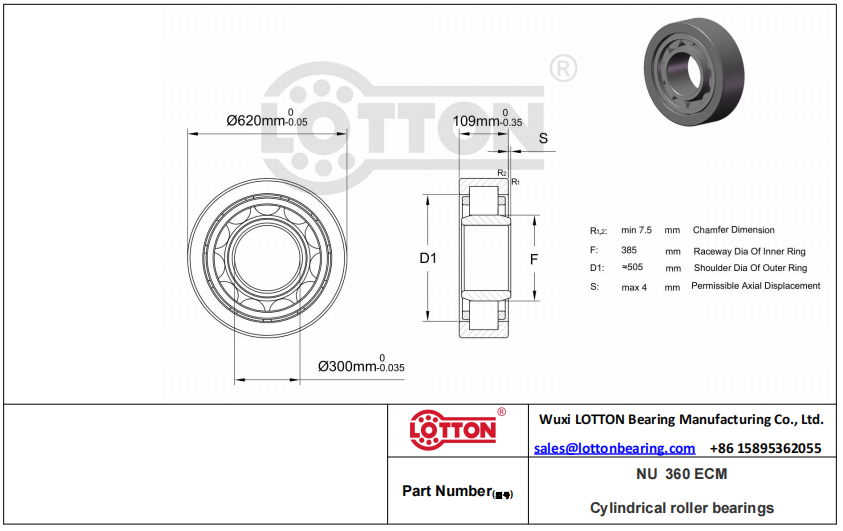

| Product Number | NU360ECM |
| System of Measurement | Metric |
| Roller Bearing Type | Cylindrical |
| For Load Direction | Combined Radial and Thrust |
| Construction | Single Row |
| Inner Ring Type | With Inner Ring |
| Seal Type | Open |
| Bore Dia | 300 mm |
| Bore Dia Tolerance | -0.035mm to 0 |
| Outer Dia | 620 mm |
| Outer Dia Tolerance | -0.050mm to 0 |
| Width | 109 mm |
| Width Tolerance | -0.35mm to 0 |
| Shoulder Diameter Of Inner Ring | |
| Shoulder Diameter Of Outer Ring | 505 mm |
| Raceway Diameter Of Inner Ring | 385 mm |
| Chamfer Dimension r1,2 | 7.5 mm |
| Chamfer Dimension r3,4 | |
| Permissible Axial Displacement | 4 mm |
| Ring Material | 52100 Chrome Steel |
| Roller Material | 52100 Chrome Steel |
| Dynamic Load Rating | 2330 kN |
| Static Load Rating | 3350 kN |
| Max Speed (X1000 rpm) | 1 |
| Lubrication | Grease, Oil |
| Temperature Range | -30° to 110 °C |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 174 kg |
