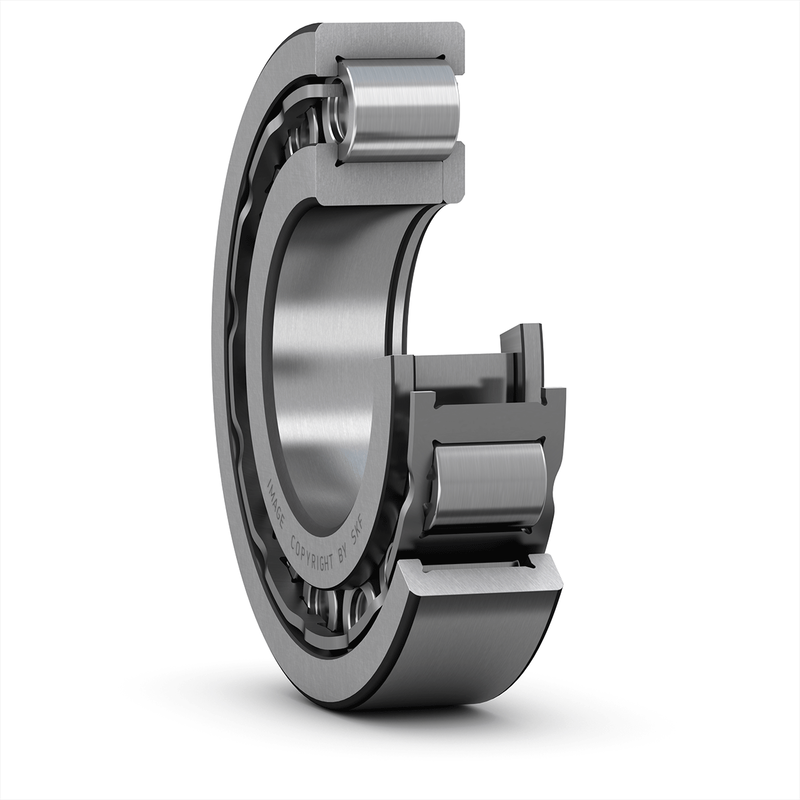

| Product Number | NUP2208ECJ |
| System of Measurement | Metric |
| Roller Bearing Type | Cylindrical |
| For Load Direction | Combined Radial and Thrust |
| Construction | Single Row |
| Inner Ring Type | With Inner Ring |
| Seal Type | Open |
| Bore Dia | 40mm |
| Bore Dia Tolerance | -0.012mm to 0 |
| Outer Dia | 80mm |
| Outer Dia Tolerance | -0.013mm to 0 |
| Width | 23mm |
| Width Tolerance | -0.12mm to 0 |

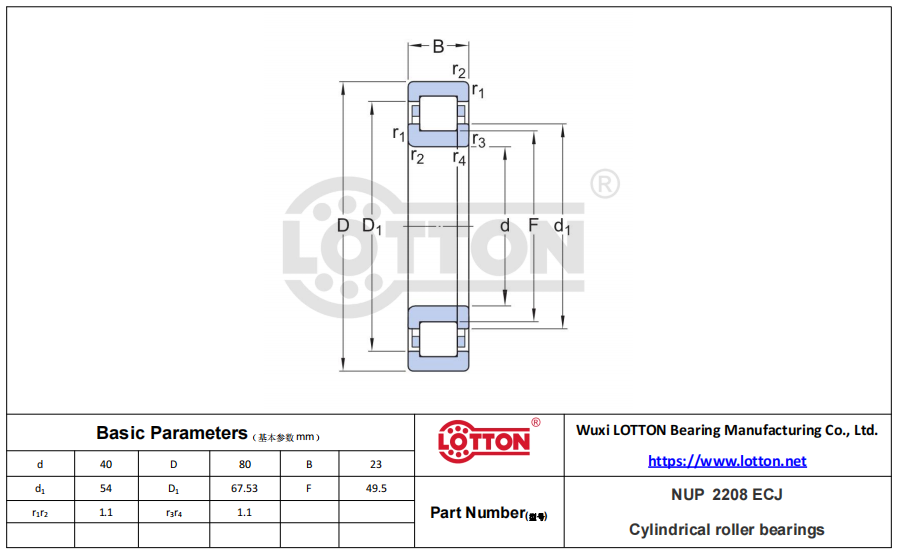

| Shoulder Diameter Of Inner Ring | 54 mm |
| Shoulder Diameter Of Outer Ring | 67.53 mm |
| Raceway Diameter Of Inner Ring | 49.5 mm |
| Chamfer Dimension r1,2 | 1.1mm |
| Chamfer Dimension r3,4 | 1.1mm |
| Ring Material | 52100 Chrome Steel |
| Roller Material | 52100 Chrome Steel |
| Dynamic Load Rating | 81.5kN |
| Static Load Rating | 75kN |
| Max Speed (X1000 rpm) | 11 |
| Lubrication | Grease, Oil |
| Temperature Range | -30° to 110 °C |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 0.52kg |
