| Product Number | NUP2214ECNM |
| System of Measurement | Metric |
| Roller Bearing Type | Cylindrical |
| For Load Direction | Combined Radial and Thrust |
| Construction | Single Row |
| Inner Ring Type | With Inner Ring |
| Seal Type | Open |

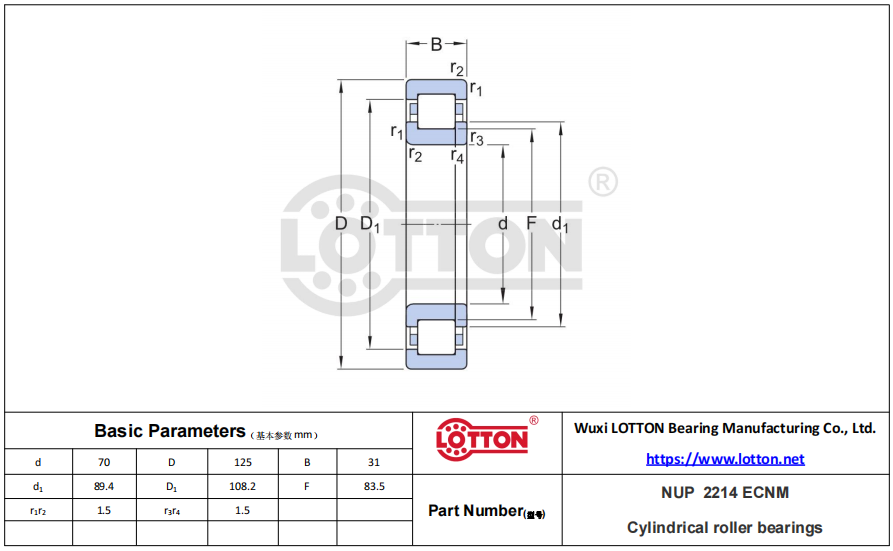

| Bore Dia | 70 mm |
| Bore Dia Tolerance | -0.15mm to 0 |
| Outer Dia | 125 mm |
| Outer Dia Tolerance | -0.018mm to 0 |
| Width | 31 mm |
| Width Tolerance | -0.15mm to 0 |
| Shoulder Diameter Of Inner Ring | 89.4 mm |
| Shoulder Diameter Of Outer Ring | 108.2 mm |
| Raceway Diameter Of Inner Ring | 83.5 mm |
| Chamfer Dimension r1,2 | 1.5 mm |
| Chamfer Dimension r3,4 | 1.5 mm |
| Permissible Axial Displacement | |
| Ring Material | 52100 Chrome Steel |
| Roller Material | 52100 Chrome Steel |
| Dynamic Load Rating | 180 kN |
| Static Load Rating | 193 kN |
| Max Speed (X1000 rpm) | 6 |
| Lubrication | Grease, Oil |
| Temperature Range | -30° to 110 °C |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 1.8 kg |
| Diameter of snap ring groove(D3) | 120.22 mm |
| Distance from outer ring side face to snap ring groove(C2) | 4.06 mm |
| Width of snap ring groove(b) | 3.1 mm |
