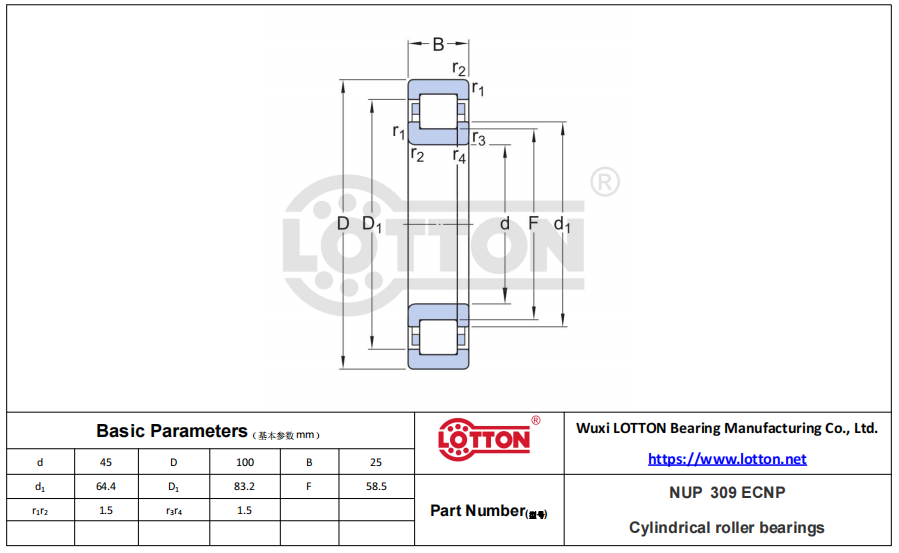

| Product Number | NUP309ECNP |
| System of Measurement | Metric |
| Roller Bearing Type | Cylindrical |
| For Load Direction | Combined Radial and Thrust |
| Construction | Single Row |
| Inner Ring Type | With Inner Ring |
| Seal Type | Open |
| Bore Dia | 45mm |
| Bore Dia Tolerance | -0.012mm to 0 |
| Outer Dia | 100mm |
| Outer Dia Tolerance | -0.015mm to 0 |
| Width | 25mm |
| Width Tolerance | -0.12mm to 0 |
| Shoulder Diameter Of Inner Ring | 64.4 mm |
| Shoulder Diameter Of Outer Ring | 83.2 mm |
| Raceway Diameter Of Inner Ring | 58.5 mm |
| Chamfer Dimension r1,2 | 1.5mm |
| Chamfer Dimension r3,4 | 1.5mm |
| Ring Material | 52100 Chrome Steel |
| Roller Material | 52100 Chrome Steel |
| Dynamic Load Rating | 112kN |
| Static Load Rating | 100kN |
| Max Speed (X1000 rpm) | 8 |
| Lubrication | Grease, Oil |
| Temperature Range | -30° to 110 °C |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 0.9kg |
| Diameter of snap ring groove(D3) | 96.8mm |
| Distance from outer ring side face to snap ring groove(C2) | 3.28mm |
| Width of snap ring groove(b) | 2.7mm |
