| Product Number | NUP3984ECMA |
| System of Measurement | Metric |

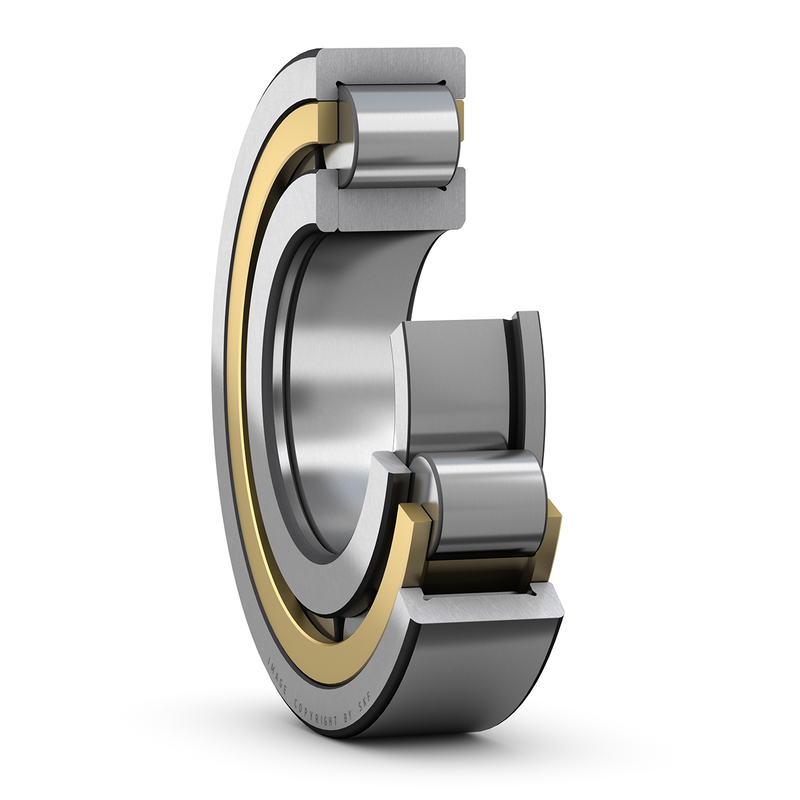

| Roller Bearing Type | Cylindrical |
| For Load Direction | Combined Radial and Thrust |
| Construction | Single Row |
| Inner Ring Type | With Inner Ring |
| Seal Type | Open |

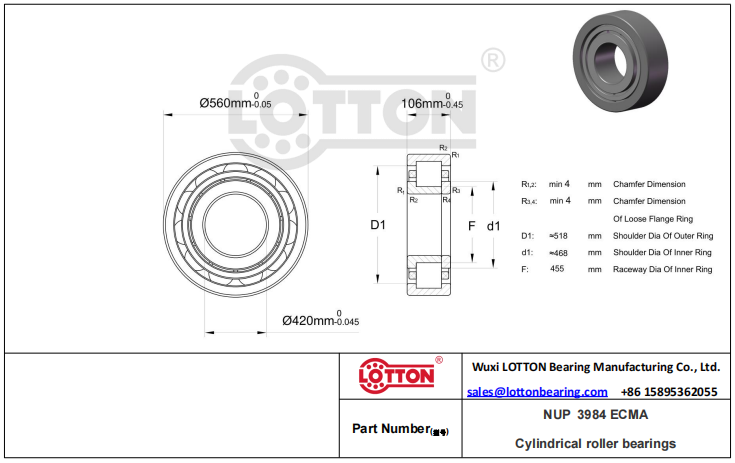

| Bore Dia | 420 mm |
| Bore Dia Tolerance | -0.045mm to 0 |
| Outer Dia | 560 mm |
| Outer Dia Tolerance | -0.05mm to 0 |
| Width | 106 mm |
| Width Tolerance | -0.45mm to 0 |
| Shoulder Diameter Of Inner Ring | 468 mm |
| Shoulder Diameter Of Outer Ring | 518 mm |
| Raceway Diameter Of Inner Ring | 455 mm |
| Chamfer Dimension r1,2 | 4 mm |
| Chamfer Dimension r3,4 | |
| Permissible Axial Displacement | |
| Ring Material | 52100 Chrome Steel |
| Roller Material | 52100 Chrome Steel |
| Dynamic Load Rating | 1680 kN |
| Static Load Rating | 3650 kN |
| Max Speed (X1000 rpm) | 2 |
| Lubrication | Grease, Oil |
| Temperature Range | -30° to 110 °C |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 79.7 kg |
