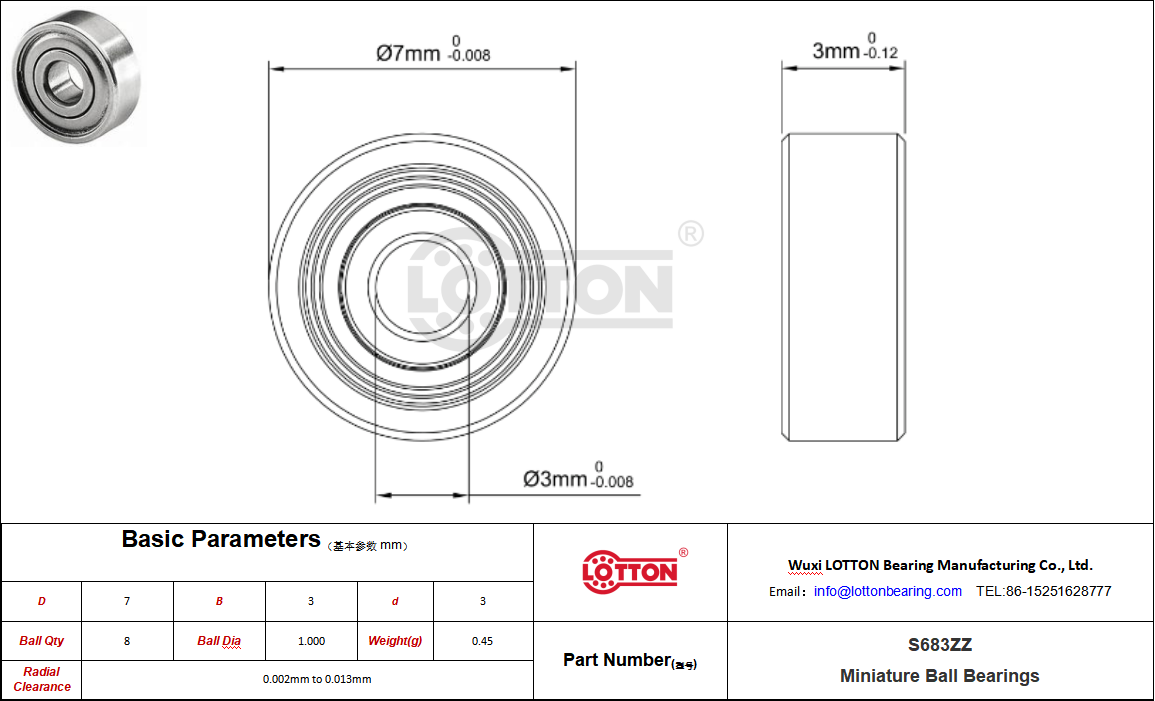

| Product Number | S683ZZ Bearing |
| metering system | Metric system |
| Bearing type | ball |
| load direction | Radial |
| structure | single row |
| Inner ring type | Standard type |
| Seal type | metal dust cover |
| inside diameter | 3 mm |
| Inner diameter tolerance | -0.008mm to 0 |
| outer diameter | 7 mm |
| outer diameter tolerance | -0.008mm to 0 |
| width | 3 mm |
| Width Tolerance | -0.12mm to 0 |
| ferrule material | 440C stainless steel |
| ball material | 440C stainless steel |
| cage material | 300 series stainless steel |
| dynamic radial load | 53.55 lbf |
| static radial load | 18.225 lbf |
| Maximum speed | 56.7 |
| lubricant | Lubricated |
| installation method | push-in |
| temperature range | -30° to 110°C |
| ABEC grade | ABEC1 (ABEC3/5/7 optional) |
| Radial clearance class | MC3 (available in MC1/2/4/5/6) |
| Clearance range | 0.002mm to 0.013mm |
| RoHS | conform to |
| REACH | conform to |
| Ball diameter | 1.0000 mm |
| number of balls | 8 |
| weight | 0.45g |
| NMB | DDL-730ZZ |
| GRW | |
| McMaster-Carr ABEC5 | 6153K27 |
| NHBB | DDL-730ZZ |
| EZO | 683ZZ |
| McMaster-Carr ABEC7 | 7487N47 |
| DYNAROLL | 683ZZ |
| FAG | |
| RMB | |
| MPB | |
| LOTTON | S683ZZ |
| McMaster-Carr ABEC1 | |
| BARDEN | |
| McMaster-Carr ABEC3 |
| LOTTON | DYNAROLL | EZO | NMB | McMaster-Carr ABEC7 | McMaster-Carr ABEC5 | NHBB |
S683ZZ | 683ZZ | 683ZZ | DDL-730ZZ | 7487N47 | 6153K27 | DDL-730ZZ |
