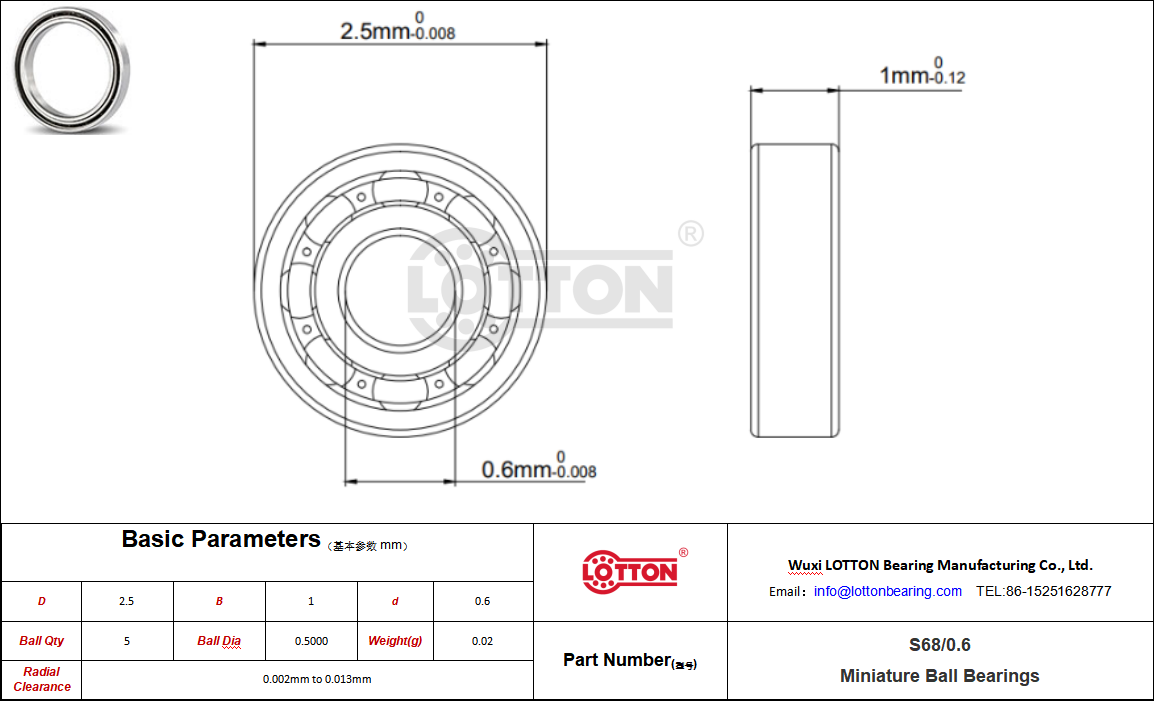

| Product Number | S68/0.6 Bearing |
| metering system | Metric system |
| Bearing type | ball |
| load direction | Radial |
| structure | single row |
| Inner ring type | Standard type |
| Seal type | open |
| inside diameter | 0.6 mm |
| Inner diameter tolerance | -0.008mm to 0 |
| outer diameter | 2.5 mm |
| outer diameter tolerance | -0.008mm to 0 |
| width | 1 mm |
| Width Tolerance | -0.12mm to 0 |
| ferrule material | 440C stainless steel |
| ball material | 440C stainless steel |
| cage material | 300 series stainless steel |
| dynamic radial load | 11.925 lbf |
| static radial load | 2.925 lbf |
| Maximum speed | 128 |
| lubricant | Lubricated |
| installation method | push-in |
| temperature range | -30° to 110°C |
| ABEC grade | ABEC1 (ABEC3/5/7 optional) |
| Radial clearance class | MC3 (available in MC1/2/4/5/6) |
| Clearance range | 0.002mm to 0.013mm |
| RoHS | conform to |
| REACH | conform to |
| Ball diameter | 0.5000mm |
| number of balls | 5 |
| weight | 0.02g |
