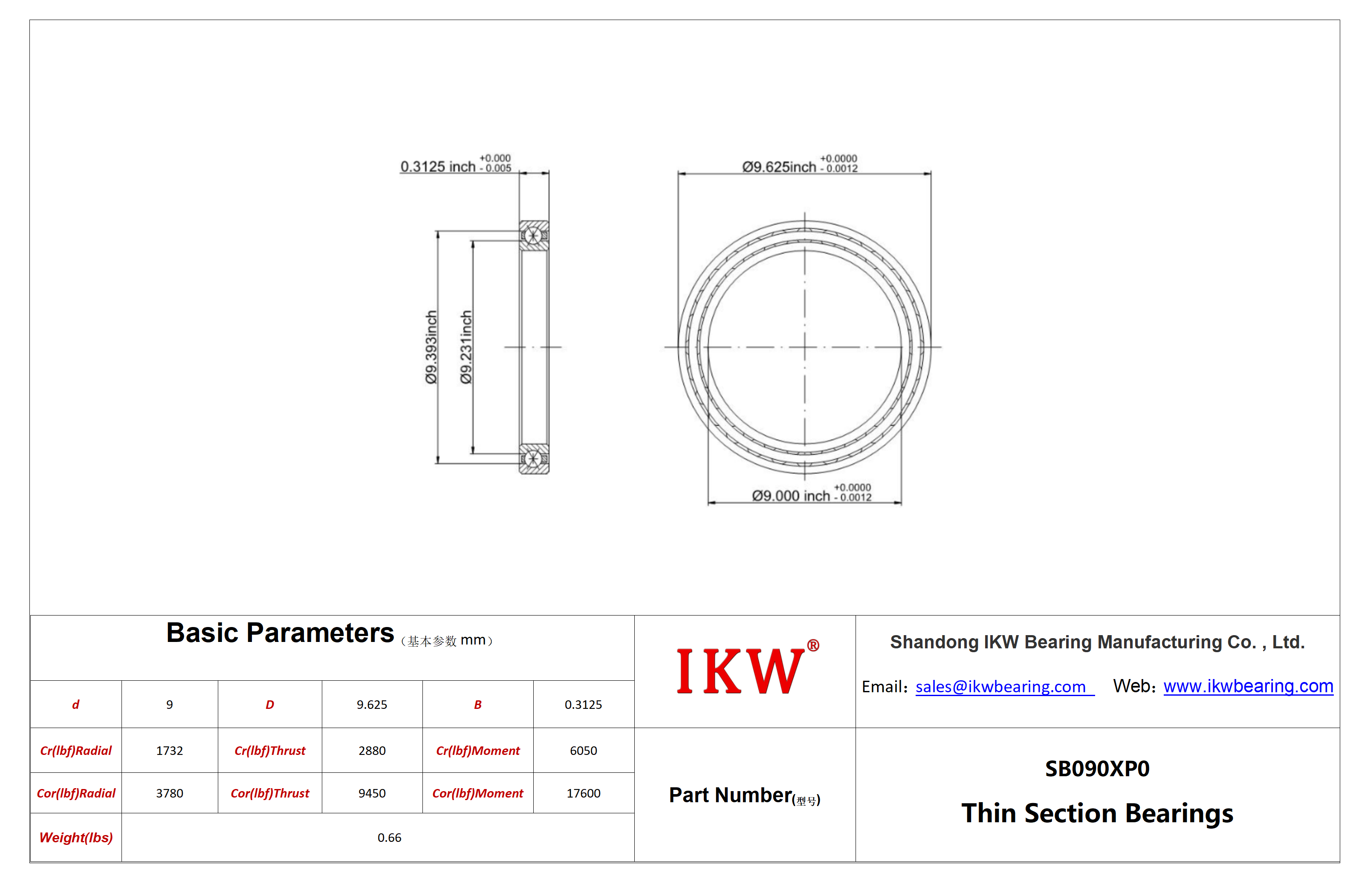

| Product Number | SB090XP0 Bearing |
| Bearing Type | Ball |
| For Load Direction | Four Point |
| Construction | Single Row |
| Contact Angle | |
| Seal Type | Open |
| Cross Section | 5/16" x 5/16" |
| Part Number | SB090XP0 |
| For Shaft Diameter | 9.000" |
| Bore Dia (d) | 9.000" |
| Bore Dia Tolerance | -0.0012"- 0" |
| For Housing ID | 9.625" |
| Outer Dia (D) | 9.625" |
| Outer Dia Tolerance | -0.0012"- 0" |
| Width (B) | 0.3125" |
| Width Tolerance | +.000 –.005" |
| Land dia.L1 | 9.231" |
| Land dia.L2 | 9.393" |
| C'Bore dia.L3 | |
| Ring Material | Aisi440c Stainless Steel |
| Ball Material | Aisi440c Stainless Steel |
| Cage Material | Brass |
| Dynamic radial(lbs) | 1,732 |
| Dynamic Thrust(lbs) | 2,880 |
| Dynamic Moment(lbs) | 6,050 |
| Static Radial(lbs) | 3,780 |
| Static Thrust(lbs) | 9,450 |
| Static Moment(lbs) | 17,600 |
| Lubrication | Lubricated |
| Shaft Mount Type | Press Fit |
| Temperature Range | -30° to 110 °C |
| ABEC Rating | ABEC-1 |
| Radial Clearance | 0.0000 – 0.0005" |
| RoHS | Compliant |
| Weight (lbs) | 0.660 |
