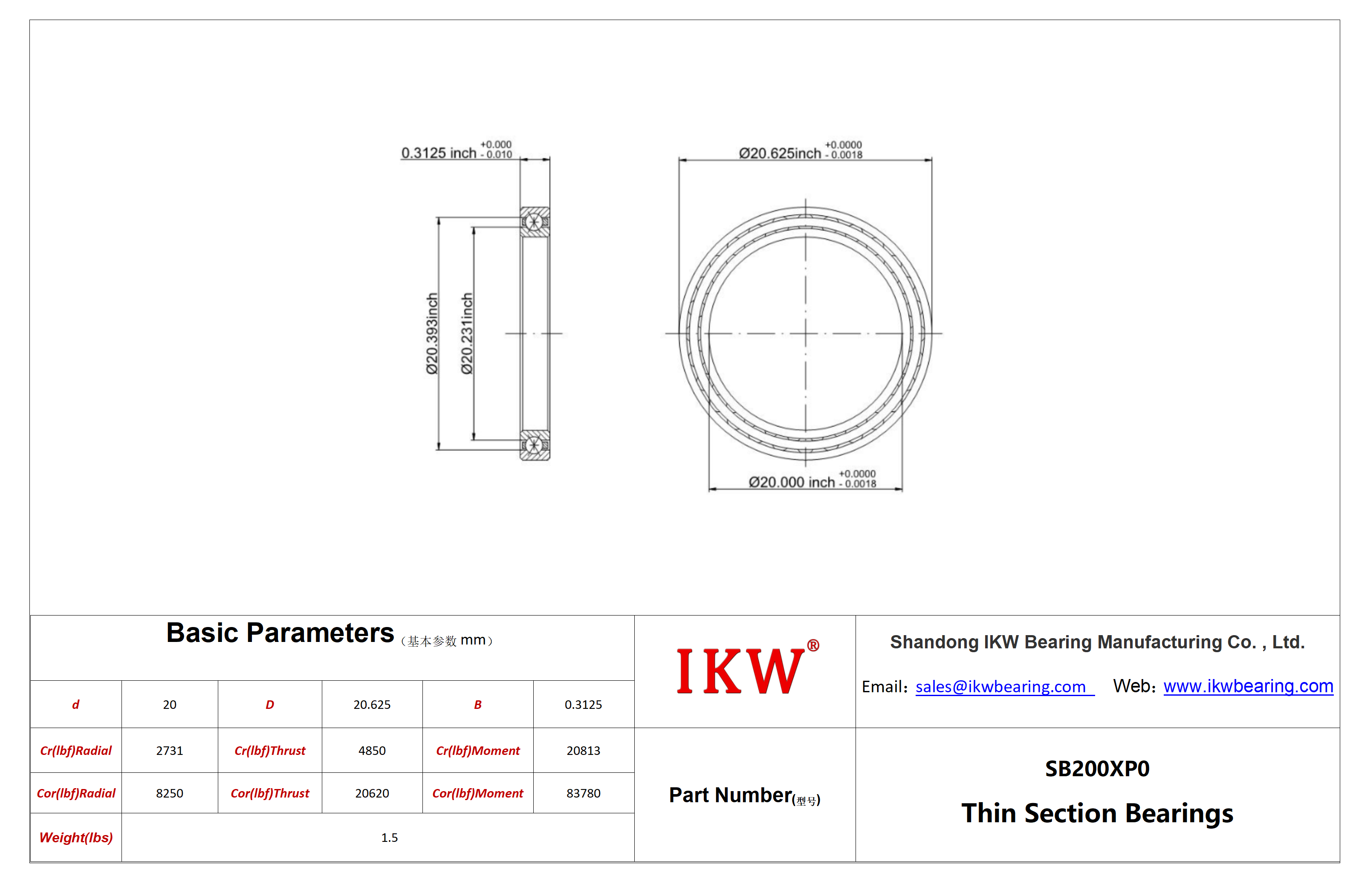

| Product Number | SB200XP0 Bearing |
| Bearing Type | Ball |
| For Load Direction | Four Point |
| Construction | Single Row |
| Contact Angle | |
| Seal Type | Open |
| Cross Section | 5/16" x 5/16" |
| Part Number | SB200XP0 |
| For Shaft Diameter | 20.000" |
| Bore Dia (d) | 20.000" |
| Bore Dia Tolerance | -0.0018"- 0" |
| For Housing ID | 20.625" |
| Outer Dia (D) | 20.625" |
| Outer Dia Tolerance | -0.0018"- 0" |
| Width (B) | 0.3125" |
| Width Tolerance | +.000 –.010" |
| Land dia.L1 | 20.231" |
| Land dia.L2 | 20.393" |
| C'Bore dia.L3 | |
| Ring Material | Aisi440c Stainless Steel |
| Ball Material | Aisi440c Stainless Steel |
| Cage Material | Brass |
| Dynamic radial(lbs) | 2,731 |
| Dynamic Thrust(lbs) | 4,850 |
| Dynamic Moment(lbs) | 20,813 |
| Static Radial(lbs) | 8,250 |
| Static Thrust(lbs) | 20,620 |
| Static Moment(lbs) | 83,780 |
| Lubrication | Lubricated |
| Shaft Mount Type | Press Fit |
| Temperature Range | -30° to 110 °C |
| ABEC Rating | ABEC-1 |
| Radial Clearance | 0.0000 – 0.0005" |
| RoHS | Compliant |
| Weight (lbs) | 1.500 |
