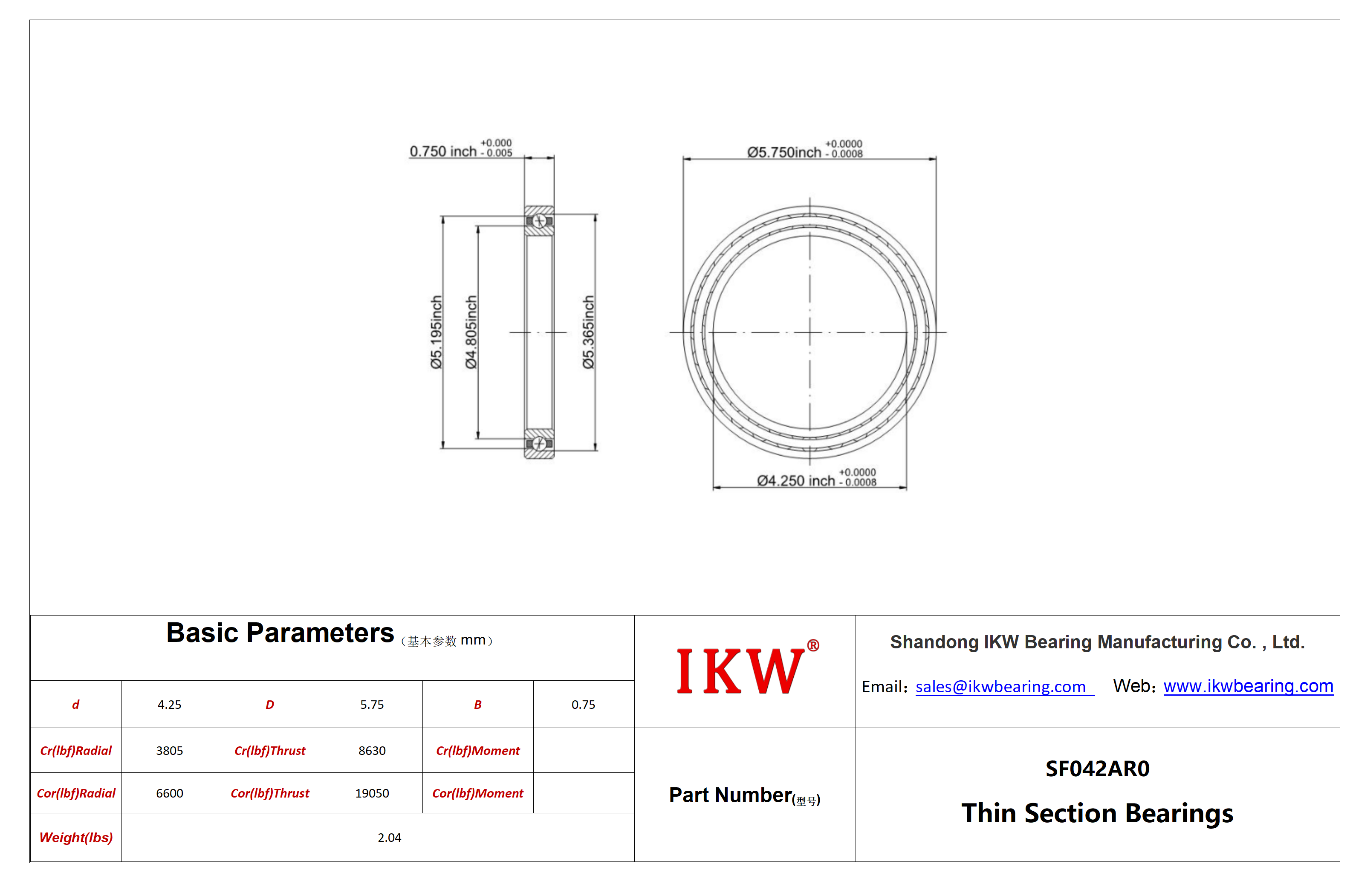

| Product Number | SF042AR0 Bearing |
| Bearing Type | Ball |
| For Load Direction | Angular |
| Construction | Single Row |
| Contact Angle | 30° |
| Seal Type | Open |
| Cross Section | 3/4" x 3/4" |
| Part Number | SF042AR0 |
| For Shaft Diameter | 4.250" |
| Bore Dia (d) | 4.250" |
| Bore Dia Tolerance | -0.0008"– 0" |
| For Housing ID | 5.750" |
| Outer Dia (D) | 5.750" |
| Outer Dia Tolerance | -0.0008"– 0" |
| Width (B) | 0.75" |
| Width Tolerance | +.000 –.005" |
| Land dia.L1 | 4.805" |
| Land dia.L2 | 5.195" |
| C'Bore dia.L3 | 5.365" |
| Ring Material | Aisi440c Stainless Steel |
| Ball Material | Aisi440c Stainless Steel |
| Cage Material | Brass |
| Dynamic radial(lbs) | 3805 |
| Dynamic Thrust(lbs) | 8630 |
| Dynamic Moment(lbs) | |
| Static Radial(lbs) | 6600 |
| Static Thrust(lbs) | 19050 |
| Static Moment(lbs) | |
| Lubrication | Lubricated |
| Shaft Mount Type | Press Fit |
| Temperature Range | -30° to 110 °C |
| ABEC Rating | ABEC-1 |
| Radial Clearance | 0.0000 – 0.0005" |
| RoHS | Compliant |
| Weight (lbs) | 2.040 |
SF042AR0 Bearings/RealiSlim Stainless Steel Thin Section Bearings/Thin Section Bearings/SF042AR0 Bearings
