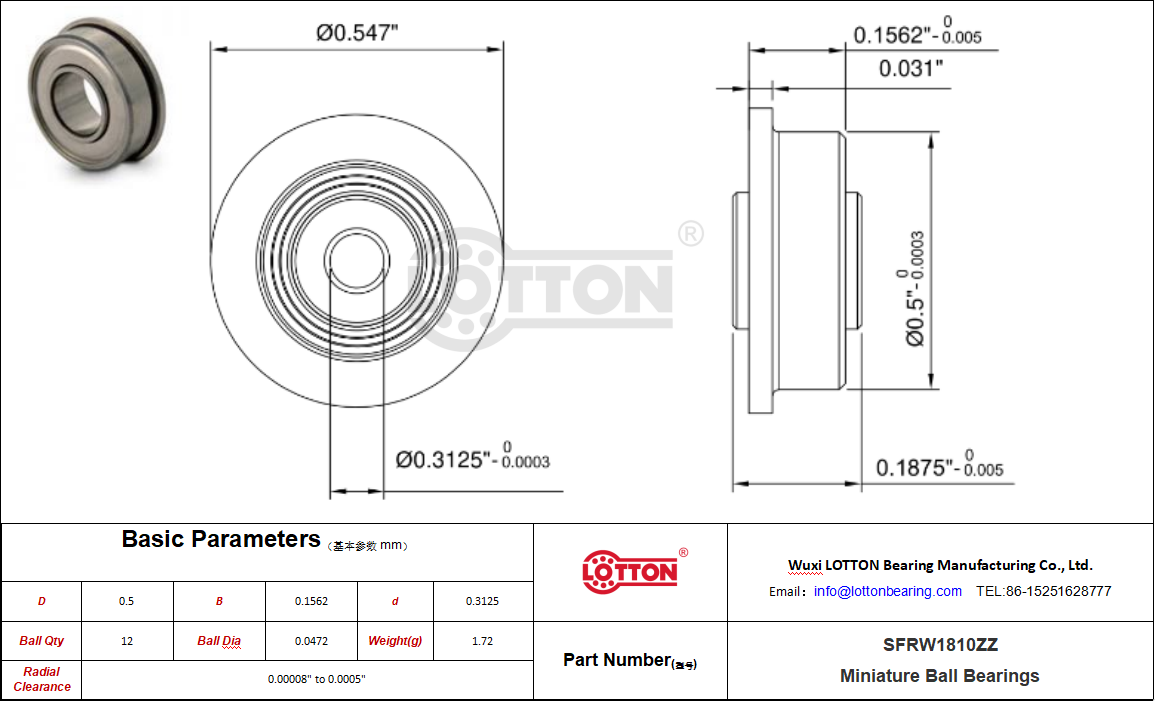

| Product Number | SFRW1810ZZ Bearing |
| metering system | imperial |
| Bearing type | ball |
| load direction | Radial |
| structure | single row |
| Inner ring type | lengthen |
| Seal type | metal dust cover |
| inside diameter | 0.3125" |
| Inner diameter tolerance | -0.0003" to 0" |
| outer diameter | 0.5" |
| outer diameter tolerance | -0.0003" to 0" |
| width | 0.1562" |
| Width Tolerance | -0.005" to 0" |
| Flange outer diameter | 0.547" |
| Flange thickness | 0.031" |
| Inner ring outer diameter | 0.362" |
| inner ring width | 0.1875" |
| ferrule material | 440C stainless steel |
| ball material | 440C stainless steel |
| cage material | 300 series stainless steel |
| dynamic radial load | 94 lbf |
| static radial load | 45lbf |
| Maximum speed | 36 |
| lubricant | Lubricated |
| installation method | push-in |
| temperature range | -86 to 230°F |
| ABEC grade | ABEC1 (ABEC3/5/7 optional) |
| Radial clearance class | MC3 (available in MC1/2/4/5/6) |
| Clearance range | 0.00008" to 0.0005" |
| RoHS | conform to |
| REACH | conform to |
| Ball diameter | 0.0472" |
| number of balls | 12 |
| weight | 1.72g |
| NMB | DDRIF-8516ZZEE |
| GRW | |
| McMaster-Carr ABEC5 | |
| NHBB | SSRIF-8516ZZEE |
| EZO | SFRW1810ZZS |
| McMaster-Carr ABEC7 | |
| DYNAROLL | SFRW1810ZZS |
| FAG | |
| RMB | |
| MPB | S8516FCHHE |
| LOTTON | SFRW1810ZZ |
| McMaster-Carr ABEC1 | 57155K338 |
| BARDEN | |
| McMaster-Carr ABEC3 |
| LOTTON | DYNAROLL | EZO | NMB | NHBB | MPB | McMaster-Carr |
| SFRW1810ZZ | SFRW1810ZZS | SFRW1810ZZS | DDRIF-8516ZZEE | SSRIF-8516ZZEE | S8516FCHHE | 57155K338 |
