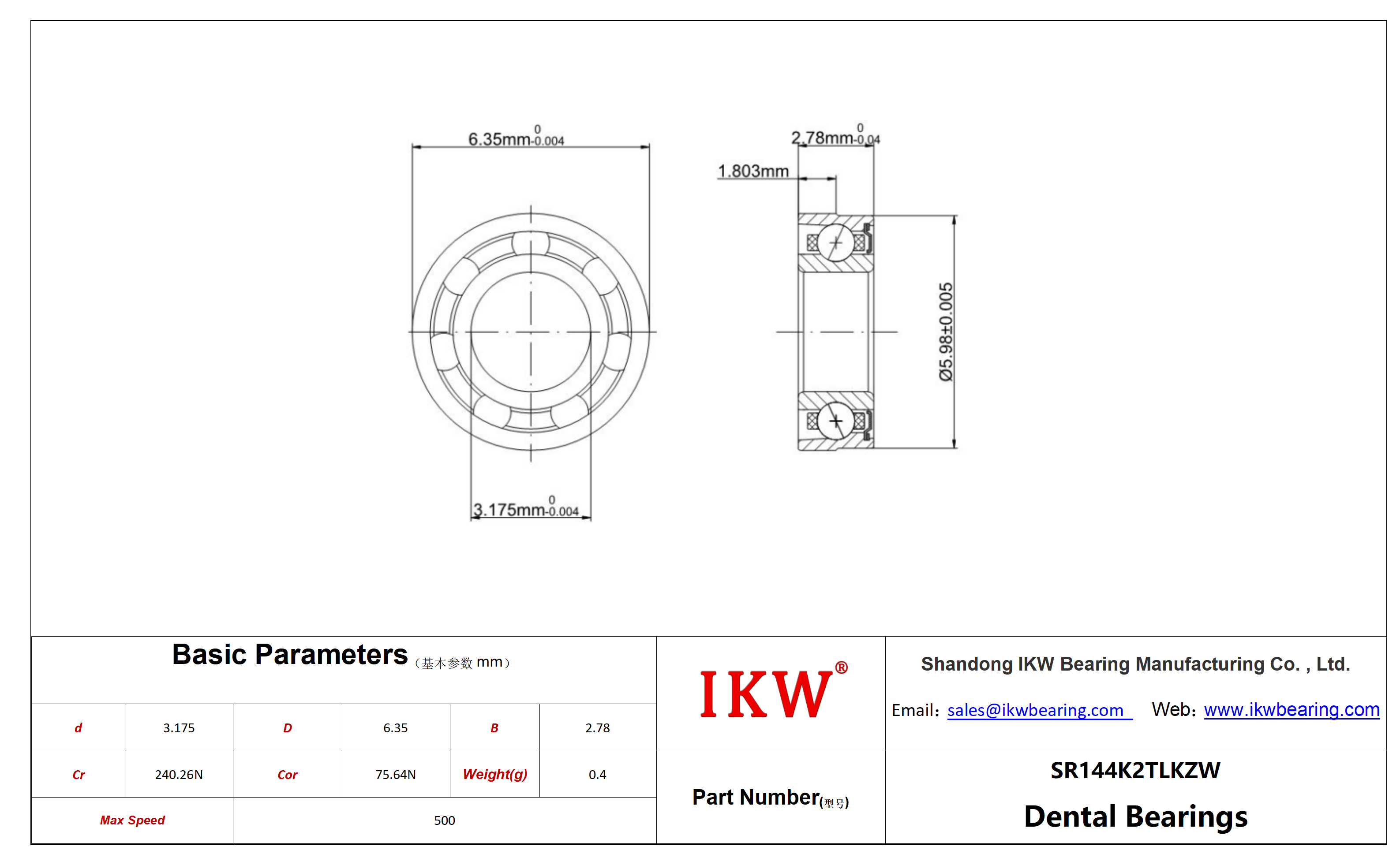

| Product Number | SR144K2TLKZW Bearing |
| Bearing Type | Ball |
| Bearing Type | Ball |
| Seal Type | Single shield |
| Seal Type | Single shield |
| Precision Rating | Single shield |
| Precision Rating | Single shield |
| Structure | Stepped |
| Structure | Stepped |
| Ball Bearing Type | Angular contact |
| Ball Bearing Type | Angular contact |
| Part Number | SR144K2TLKZW |
| Part Number | SR144K2TLKZW |
| Other MFG Code | |
| Other MFG Code | |
| Bore Dia (d) | 3.175mm |
| Bore Dia (d) | 3.175mm |
| Bore Dia Tolerance | -0.004mm to 0 |
| Bore Dia Tolerance | -0.004mm to 0 |
| Outer Dia (D) | 6.35mm |
| Outer Dia (D) | 6.35mm |
| Outer Dia Tolerance | -0.004mm to 0 |
| Outer Dia Tolerance | -0.004mm to 0 |
| Width (B) | 2.78mm |
| Width (B) | 2.78mm |
| Width Tolerance | -0.04mm to 0 |
| Width Tolerance | -0.04mm to 0 |
| Mass (grams) | 0.4 |
| Mass (grams) | 0.4 |
SR144K2TLKZW Bearing|Dental bearings | High speed bearings | High precision bearings | Silent dental bearings | SR dental bearings, SFR dental bearings, SFFR series dental bearings|SR144K2TLKZW_Bearing
