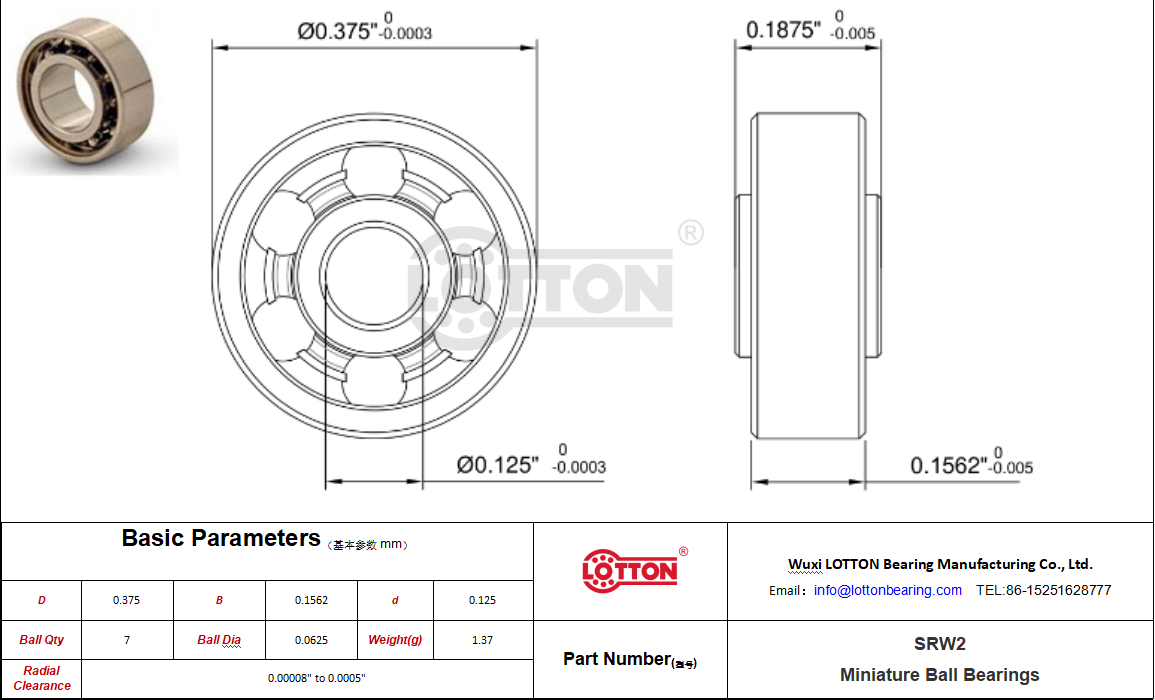

SRW2 Bearing

Product Number	SRW2 Bearing
metering system	imperial
Bearing type	ball
load direction	Radial
structure	single column
Inner ring type	lengthen
Seal type	open
inside diameter	0.125"
Inner diameter tolerance	-0.0003" to 0"
outer diameter	0.375"
outer diameter tolerance	-0.0003" to 0"
width	0.1562"
Width Tolerance	-0.005" to 0"
Inner ring outer diameter	0.2"
inner ring width	0.1875"
ferrule material	440C stainless steel
ball material	440C stainless steel
cage material	300 series stainless steel
dynamic radial load	109 lbf
static radial load	35lbf
Maximum speed	50.4
lubricant	Lubricated
installation method	push-in
temperature range	-86 to 230°F
ABEC grade	ABEC1 (ABEC3/5/7 optional)
Radial clearance class	MC3 (available in MC1/2/4/5/6)
Clearance range	0.00008" to 0.0005"
RoHS	conform to
REACH	conform to
Ball diameter	0.0625"
number of balls	7
weight	1.37g
