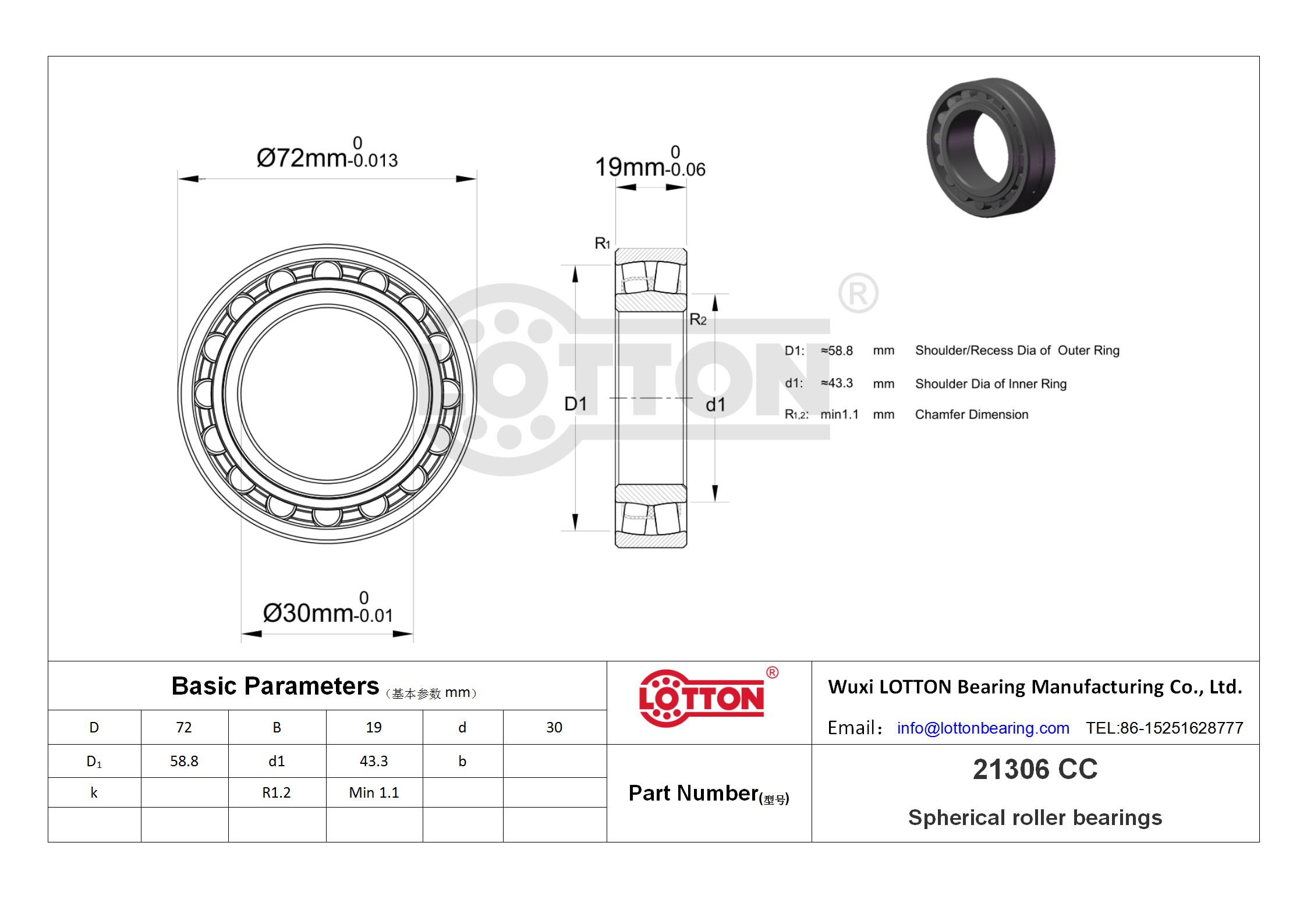

| Product Number | 21306 CC |
| System of Measurement | Metric |
| Bearing Type | Roller |
| Roller Bearing Type | Spherical |
| Bore Type | Straight Bore |
| For Load Direction | Combined Radial and Thrust |
| Construction | Double Row |
| Seal Type | Open |
| Bore Dia | 30 mm |
| Bore Dia Tolerance | -0.01mm to 0 |
| Outer Dia | 72 mm |
| Outer Dia Tolerance | -0.013mm to 0 |
| Width | 19 mm |
| Width Tolerance | -0.06mm to 0 |
| Shoulder Dia Of Inner Ring | 43.3 mm |
| Shoulder/Recess Dia Of Outer Ring | 58.8 mm |
| Width Of Lubrication Groove | min.1.1 mm |
| Diameter Of Lubrication Hole | |
| Chamfer Dimension | min.1.1 mm |
| Ring Material | 52100 Chrome Steel |
| Roller Material | 52100 Chrome Steel |
| Cage Material | Steel |
| Dynamic Radial Load | 65.7 kN |
| Static Radial Load | 61 kN |
| Max Speed (X1000 rpm) | 10 |
| Lubrication | Required |
| Temperature Range | -30° to 110 °C |
| Radial Clearance | Standard (Available in C3/C4/C5) |
| RoHs | Compliant |
| REACH | Compliant |
| Weight | 0.41 kg |
