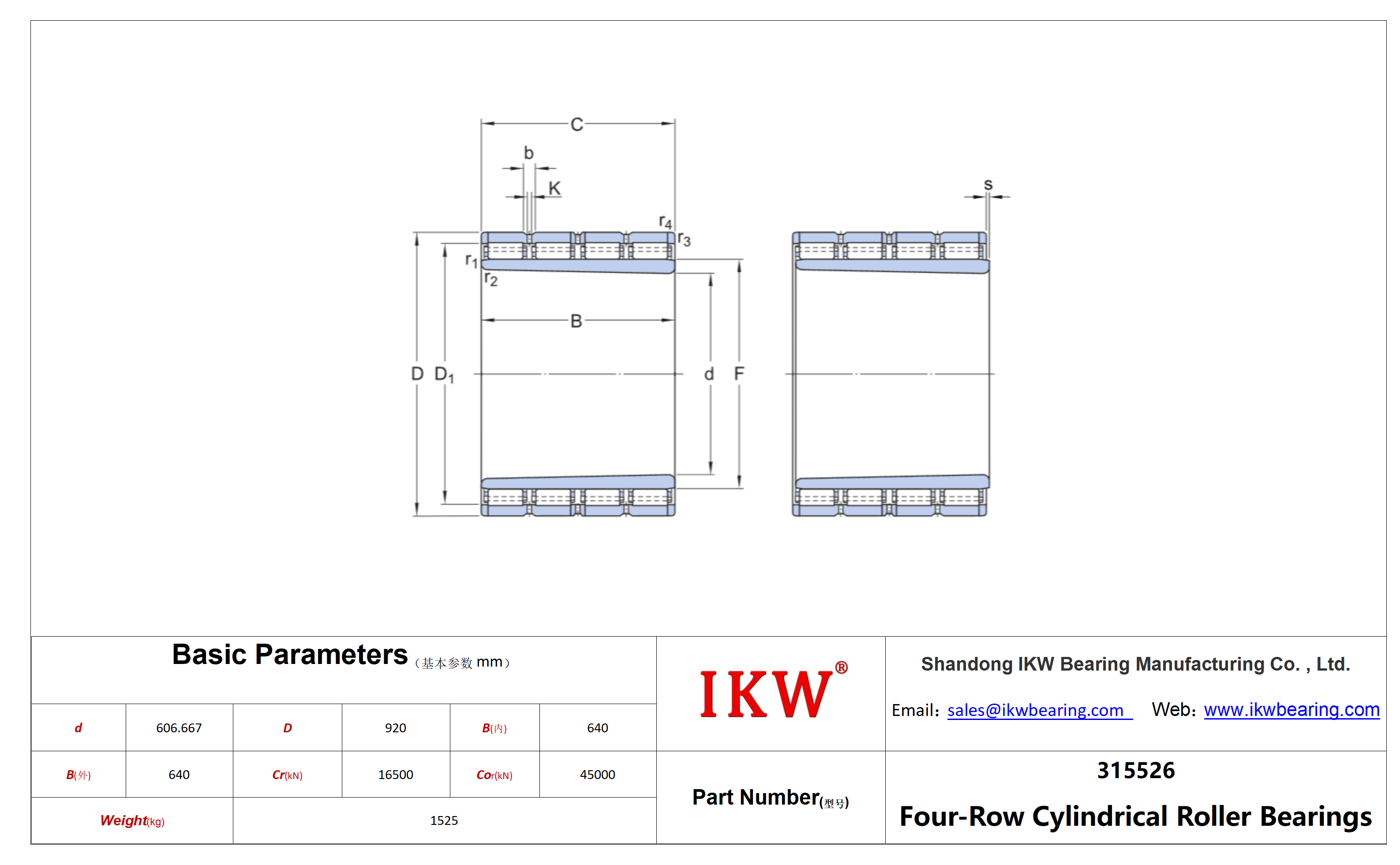

| Product Number | 315526 Bearing |
| System of Measurement | Metric |
| Roller Bearing Type | Cylindrical |
| For Load Direction | Combined Radial and Thrust |
| Bore Dia (d) | 606.667 mm |
| Outer Dia (D) | 920 mm |
| Total Bearing Width Over Inner Ring(S)(B) | 640 mm |
| Total Bearing Width Over Outer Ring(S)(C) | 640 mm |
| Dynamic Radial Load | 16500 kN |
| Static Radial Load | 45000 kN |
| Lubrication | Grease, Oil |
| Temperature Range | -30° to 110 °C |
| RoHS | Compliant |
| REACH | Compliant |
| Corner Radius/Chamfer Inner Ring(r1,2)(min#) | 4 mm |
| Chamfer Dimension On The Outer Ring(r3,4)(min#) | 5 mm |
| Dynamic Load Rating | 16500 kN |
| Static Load Rating | 45000 kN |
| Fatigue Load Limit(Pu) | 3100 kN |
| Static Load Rating | 10000 kN greater |
| Calculation Factor(Kr) | 740 |
| Mass Bearing | 1525 kg |
| Raceway Diameter Inner Ring(F) | 715.8 mm |
| Design Variant/Feature | BC4T.5/W33 |
| Width of Annular Groove(B) | 39 mm |
| Chamfer Angle Inner Ring(α) | 818 mm |
| Diameter Lubrication Hole(Outer Ring)(K) | 12 mm |
315526 Bearing|Rolling mill bearings|Four row cylindrical roller bearings|Cylindrical roller bearings|315526_Bearing
