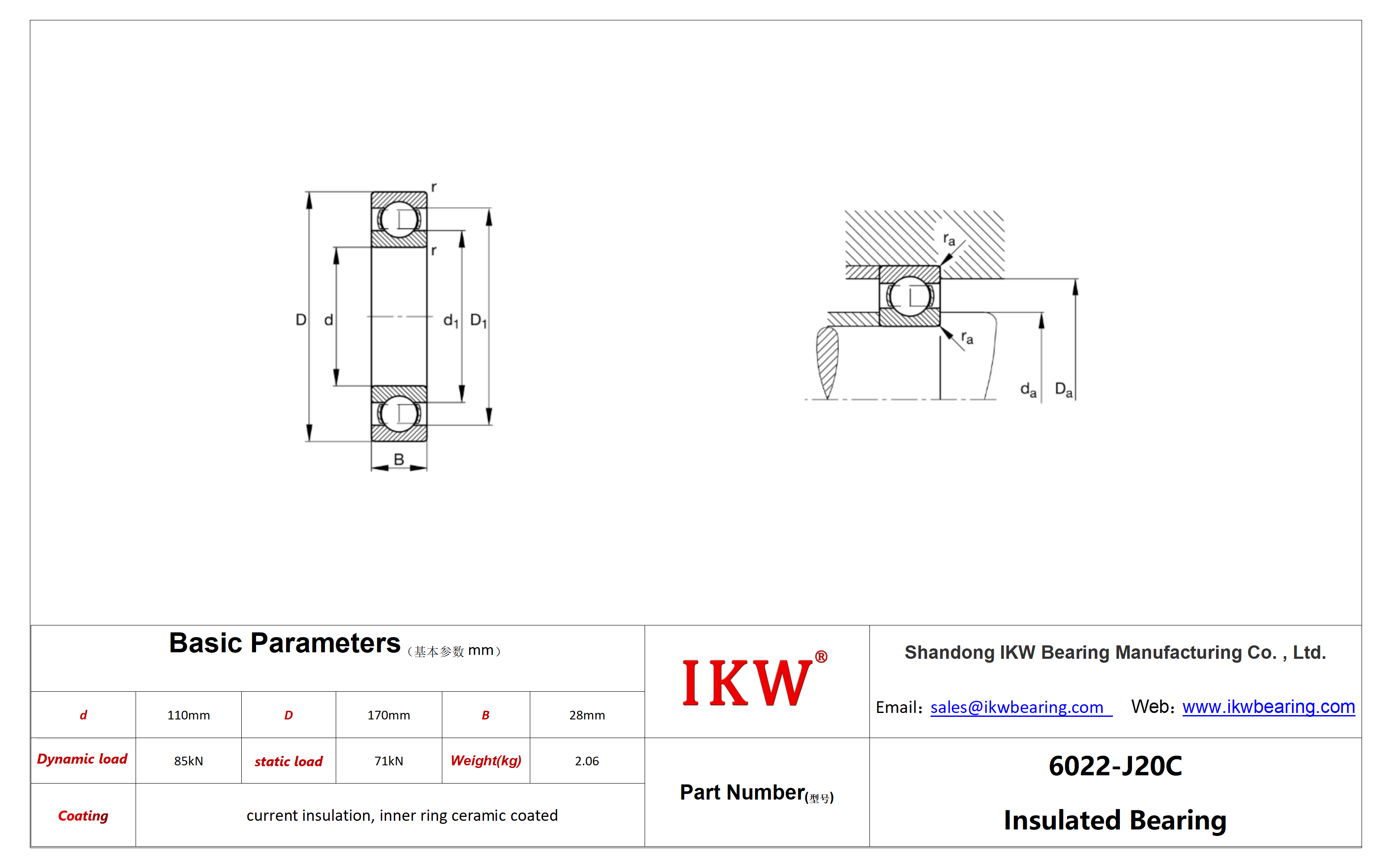

| Product Number | 6022-J20C Bearing |
| Bore diameter(d) | 110 mm |
| Outside diameter(D) | 170 mm |
| Width(B) | 28 mm |
| Basic dynamic load rating(Cr) | 85.000 N |
| Basic static load rating(Cor) | 71.000 N |
| Limiting speed(nG) | 5.300 1/min |
| Reference speed(nϑr) | 4.850 1/min |
| Weight(mass) | 2,06 kg |
| Cage | JN |
| Lubricant | without |
| Radial internal clearance | CN |
| Coating | J20C |
| da | 118,8 mm |
| Da | 161,2 mm |
6022-J20C Bearing|Insulated deep groove ball bearings|deep groove ball bearings|Insulated bearing|current insulation bearing| 6022.J20C bearing
