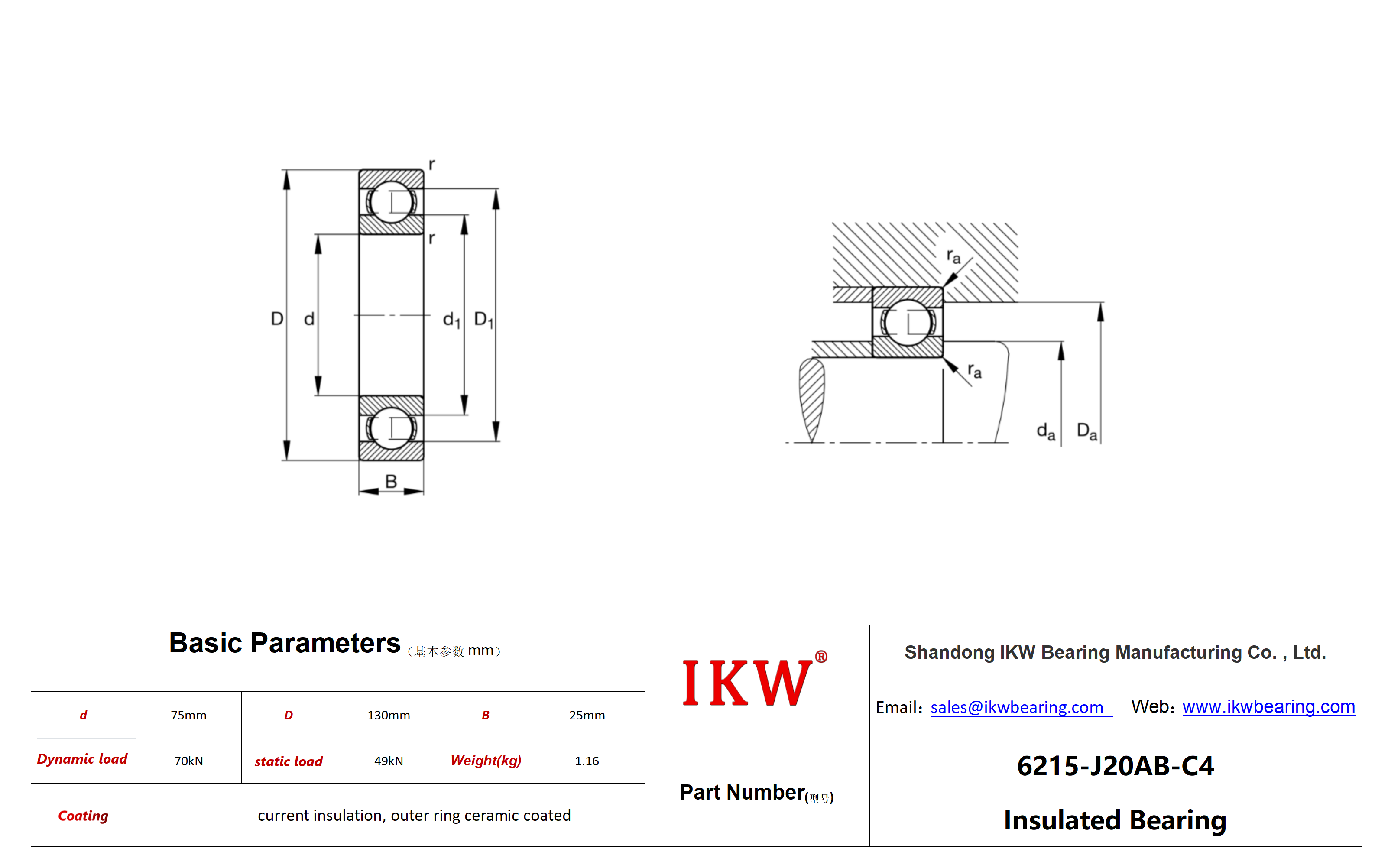

| Product Number | 6215-J20AB-C4 Bearing |
| Bore diameter(d) | 75 mm |
| Bore diameter(d) | 75 mm |
| Outside diameter(D) | 130 mm |
| Outside diameter(D) | 130 mm |
| Width(B) | 25 mm |
| Width(B) | 25 mm |
| Basic dynamic load rating(Cr) | 70.000 N |
| Basic dynamic load rating(Cr) | 70.000 N |
| Basic static load rating(Cor) | 49.000 N |
| Basic static load rating(Cor) | 49.000 N |
| Limiting speed(nG) | 7.800 1/min |
| Limiting speed(nG) | 7.800 1/min |
| Reference speed(nϑr) | 5.900 1/min |
| Reference speed(nϑr) | 5.900 1/min |
| Weight(mass) | 1,16 kg |
| Weight(mass) | 1,16 kg |
| Cage | JN |
| Cage | JN |
| Lubricant | without |
| Lubricant | without |
| Radial internal clearance | C4 |
| Radial internal clearance | C4 |
| Coating | J20AB |
| Coating | J20AB |
| da | 84 mm |
| da | 84 mm |
| Da | 121 mm |
| Da | 121 mm |
6215-J20AB-C4 Bearing|Insulated deep groove ball bearings|deep groove ball bearings|Insulated bearing|current insulation bearing| 6215.J20AB.C4 Bearing
