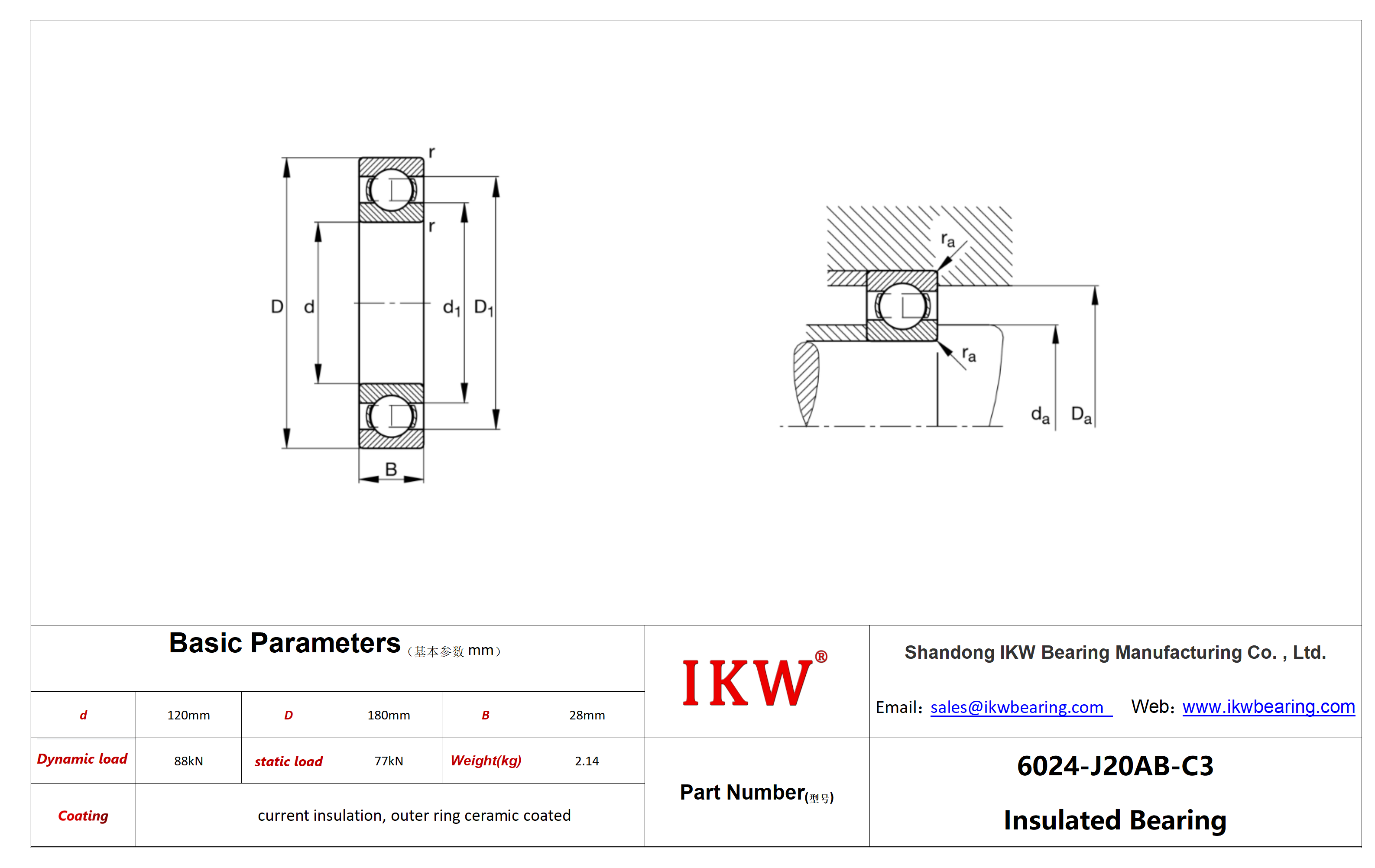

| Product Number | 6024-J20AB-C3 Bearing |
| Bore diameter(d) | 120 mm |
| Outside diameter(D) | 180 mm |
| Width(B) | 28 mm |
| Basic dynamic load rating(Cr) | 88.000 N |
| Basic static load rating(Cor) | 77.000 N |
| Limiting speed(nG) | 5.000 1/min |
| Reference speed(nϑr) | 4.450 1/min |
| Weight(mass) | 2,14 kg |
| Cage | JN |
| Lubricant | without |
| Radial internal clearance | C3 |
| Coating | J20AB |
| da | 128,8 mm |
| Da | 171,2 mm |
6024-J20AB-C3 Bearing|Insulated deep groove ball bearings|deep groove ball bearings|Insulated bearing|current insulation bearing| 6024.J20AB.C3 Bearing
