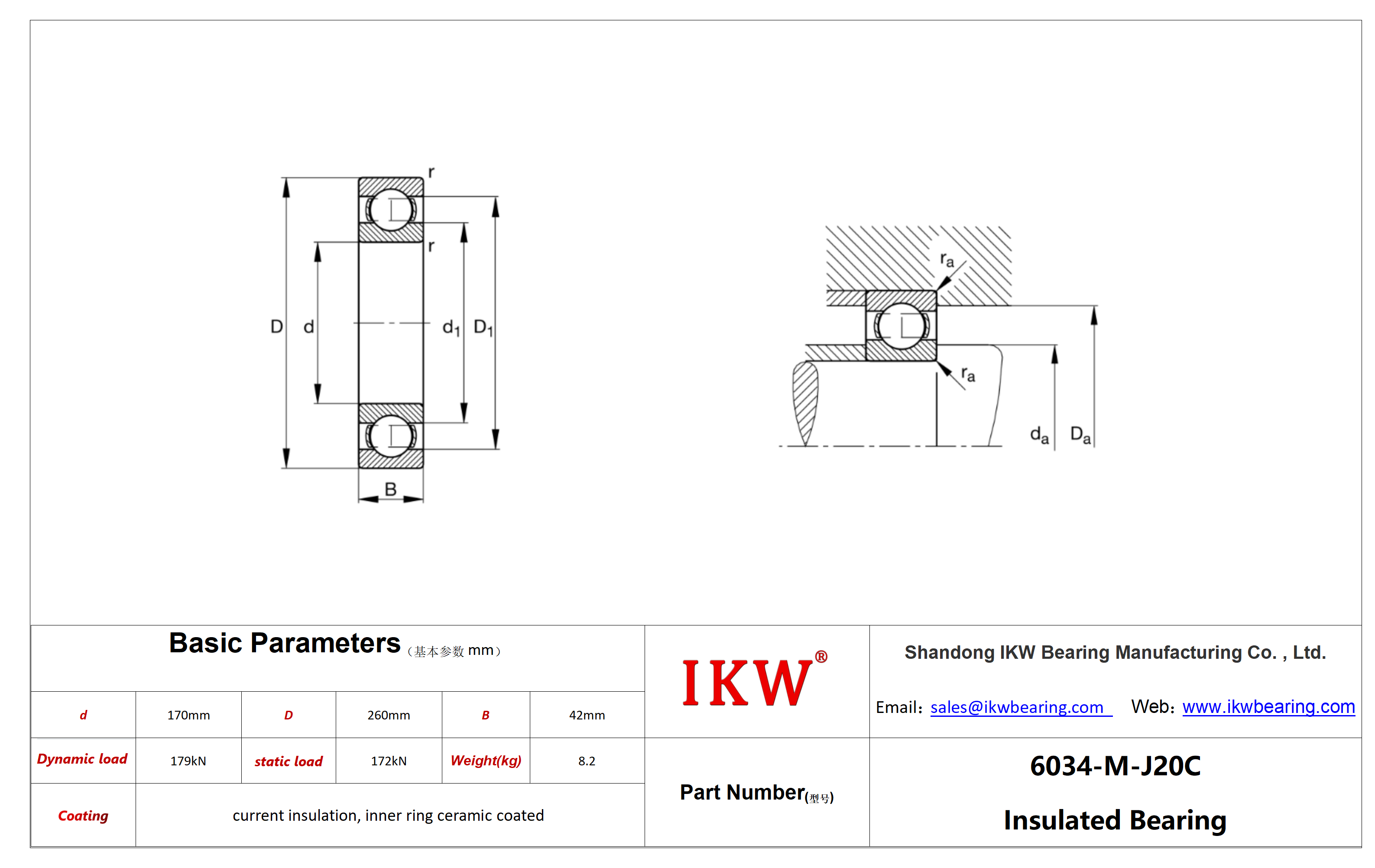

| Product Number | 6034-M-J20C Bearing |
| Bore diameter(d) | 170 mm |
| Outside diameter(D) | 260 mm |
| Width(B) | 42 mm |
| Basic dynamic load rating(Cr) | 179.000 N |
| Basic static load rating(Cor) | 172.000 N |
| Limiting speed(nG) | 4.400 1/min |
| Reference speed(nϑr) | 3.550 1/min |
| Weight(mass) | 8,2 kg |
| Cage | M |
| Lubricant | without |
| Radial internal clearance | CN |
| Coating | J20C |
| da | 180,2 mm |
| Da | 249,8 mm |
