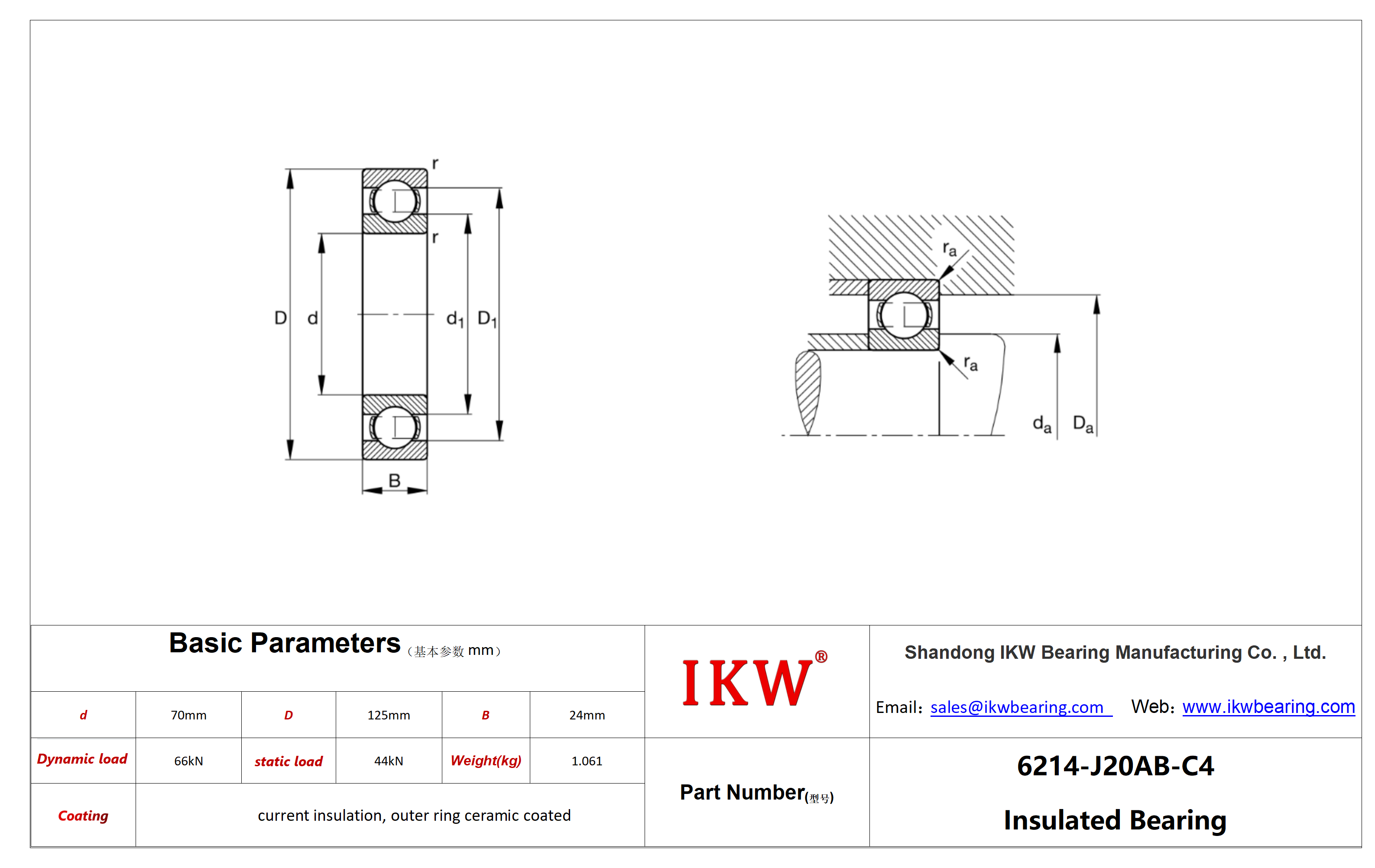

| Product Number | 6214-J20AB-C4 Bearing |
| Bore diameter(d) | 70 mm |
| Outside diameter(D) | 125 mm |
| Width(B) | 24 mm |
| Basic dynamic load rating(Cr) | 66.000 N |
| Basic static load rating(Cor) | 44.000 N |
| Limiting speed(nG) | 8.200 1/min |
| Reference speed(nϑr) | 6.100 1/min |
| Weight(mass) | 1,061 kg |
| Cage | JN |
| Lubricant | without |
| Radial internal clearance | C4 |
| Coating | J20AB |
| da | 79 mm |
| Da | 116 mm |
6214-J20AB-C4 Bearing|Insulated deep groove ball bearings|deep groove ball bearings|Insulated bearing|current insulation bearing| 6214.J20AB.C4 Bearing
