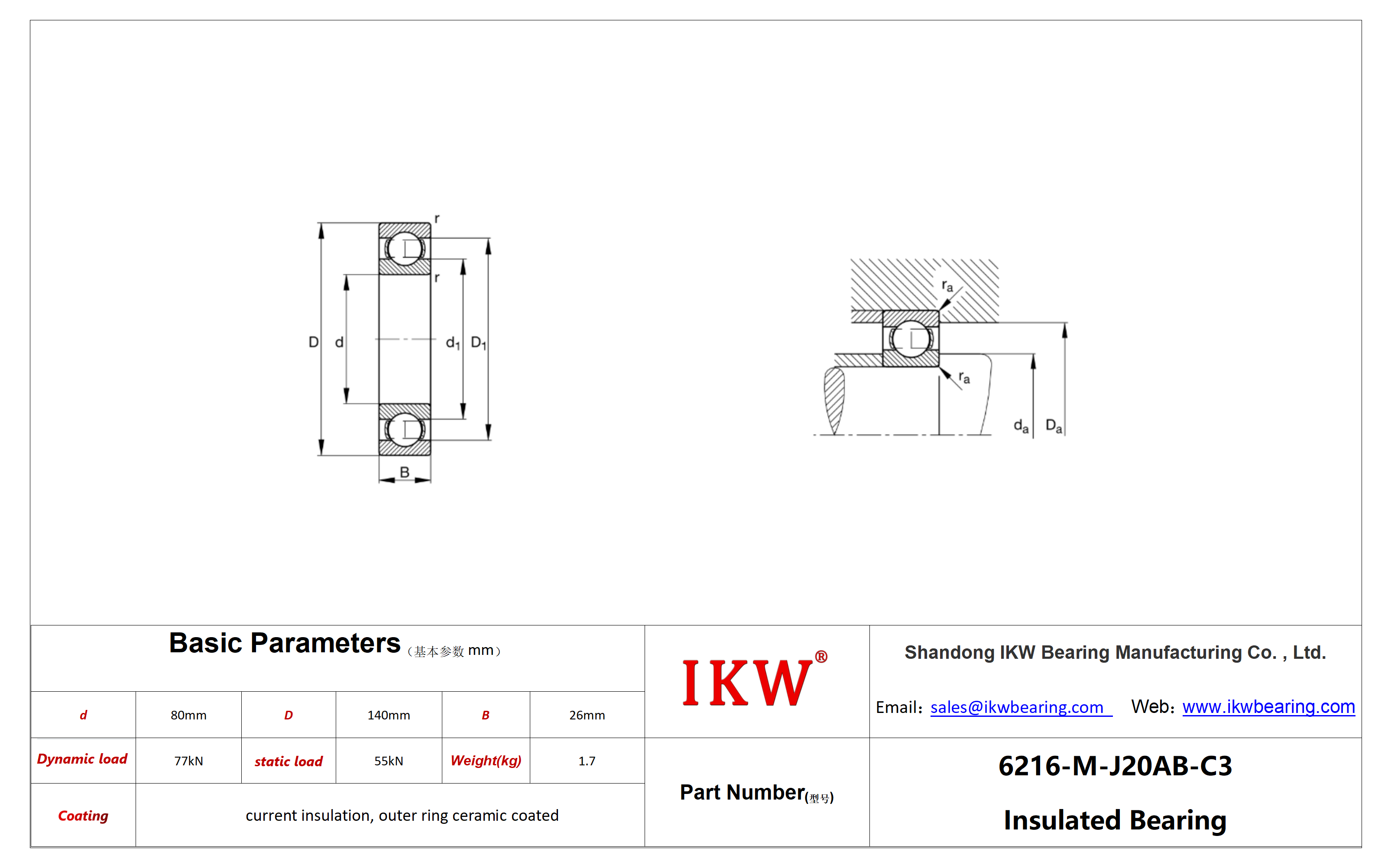

| Product Number | 6216-M-J20AB-C3 Bearing |
| Bore diameter(d) | 80 mm |
| Bore diameter(d) | 80 mm |
| Outside diameter(D) | 140 mm |
| Outside diameter(D) | 140 mm |
| Width(B) | 26 mm |
| Width(B) | 26 mm |
| Basic dynamic load rating(Cr) | 77.000 N |
| Basic dynamic load rating(Cr) | 77.000 N |
| Basic static load rating(Cor) | 55.000 N |
| Basic static load rating(Cor) | 55.000 N |
| Limiting speed(nG) | 9.500 1/min |
| Limiting speed(nG) | 9.500 1/min |
| Reference speed(nϑr) | 5.500 1/min |
| Reference speed(nϑr) | 5.500 1/min |
| Weight(mass) | 1,7 kg |
| Weight(mass) | 1,7 kg |
| Cage | M |
| Cage | M |
| Lubricant | without |
| Lubricant | without |
| Radial internal clearance | C3 |
| Radial internal clearance | C3 |
| Coating | J20AB |
| Coating | J20AB |
| da | 91 mm |
| da | 91 mm |
| Da | 129 mm |
| Da | 129 mm |
6216-M-J20AB-C3 Bearing|Insulated deep groove ball bearings|deep groove ball bearings|Insulated bearing|current insulation bearing| 6216.M.J20AB.C3 Bearing
