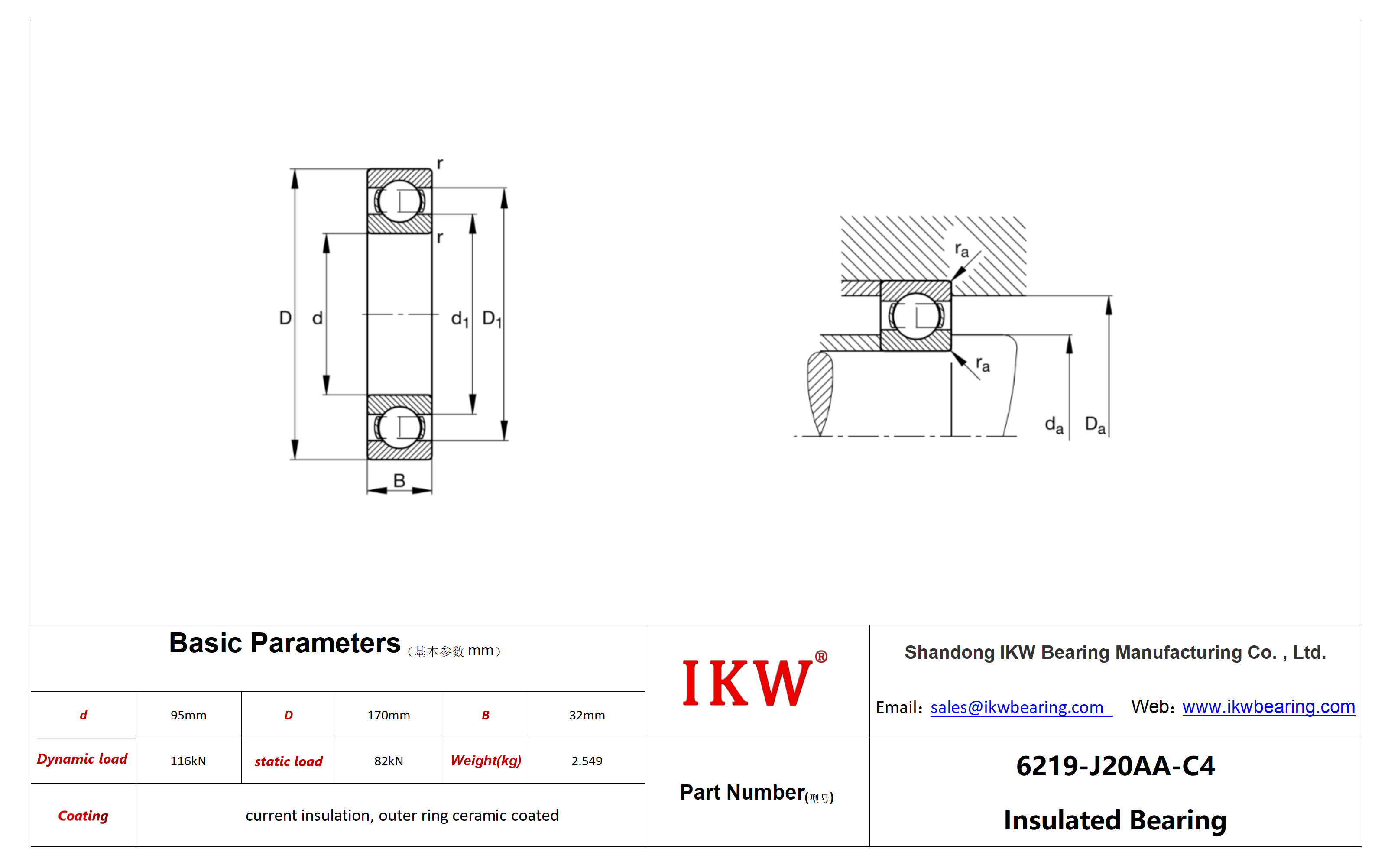

| Product Number | 6219-J20AA-C4 Bearing |
| Bore diameter(d) | 95 mm |
| Bore diameter(d) | 95 mm |
| Bore diameter(d) | 95 mm |
| Outside diameter(D) | 170 mm |
| Outside diameter(D) | 170 mm |
| Outside diameter(D) | 170 mm |
| Width(B) | 32 mm |
| Width(B) | 32 mm |
| Width(B) | 32 mm |
| Basic dynamic load rating(Cr) | 116.000 N |
| Basic dynamic load rating(Cr) | 116.000 N |
| Basic dynamic load rating(Cr) | 116.000 N |
| Basic static load rating(Cor) | 82.000 N |
| Basic static load rating(Cor) | 82.000 N |
| Basic static load rating(Cor) | 82.000 N |
| Limiting speed(nG) | 5.300 1/min |
| Limiting speed(nG) | 5.300 1/min |
| Limiting speed(nG) | 5.300 1/min |
| Reference speed(nϑr) | 4.950 1/min |
| Reference speed(nϑr) | 4.950 1/min |
| Reference speed(nϑr) | 4.950 1/min |
| Weight(mass) | 2,549 kg |
| Weight(mass) | 2,549 kg |
| Weight(mass) | 2,549 kg |
| Cage | JN |
| Cage | JN |
| Cage | JN |
| Lubricant | without |
| Lubricant | without |
| Lubricant | without |
| Radial internal clearance | C4 |
| Radial internal clearance | C4 |
| Radial internal clearance | C4 |
| Coating | J20AA |
| Coating | J20AA |
| Coating | J20AA |
| da | 107 mm |
| da | 107 mm |
| da | 107 mm |
| Da | 158 mm |
| Da | 158 mm |
| Da | 158 mm |
6219-J20AA-C4 Bearing|Insulated deep groove ball bearings|deep groove ball bearings|Insulated bearing|current insulation bearing| 6219.J20AA.C4 Bearing
