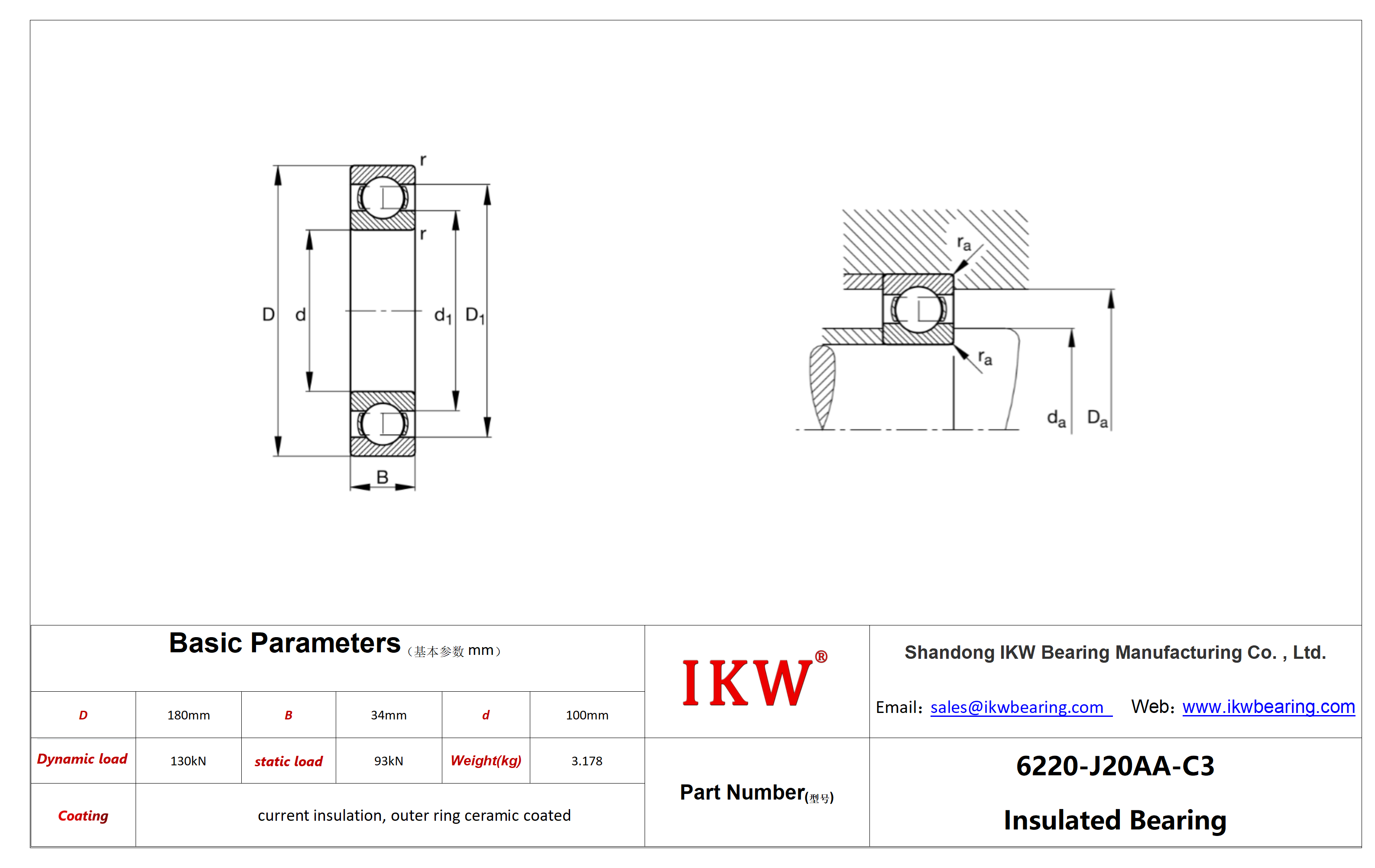

| Product Number | 6220-J20AA-C3 Bearing |
| Bore diameter(d) | 100 mm |
| Bore diameter(d) | 100 mm |
| Outside diameter(D) | 180 mm |
| Outside diameter(D) | 180 mm |
| Width(B) | 34 mm |
| Width(B) | 34 mm |
| Basic dynamic load rating(Cr) | 130.000 N |
| Basic dynamic load rating(Cr) | 130.000 N |
| Basic static load rating(Cor) | 93.000 N |
| Basic static load rating(Cor) | 93.000 N |
| Limiting speed(nG) | 5.000 1/min |
| Limiting speed(nG) | 5.000 1/min |
| Reference speed(nϑr) | 4.800 1/min |
| Reference speed(nϑr) | 4.800 1/min |
| Weight(mass) | 3,178 kg |
| Weight(mass) | 3,178 kg |
| Cage | JN |
| Cage | JN |
| Lubricant | without |
| Lubricant | without |
| Radial internal clearance | C3 |
| Radial internal clearance | C3 |
| Coating | J20AA |
| Coating | J20AA |
| da | 112 mm |
| da | 112 mm |
| Da | 168 mm |
| Da | 168 mm |
6220-J20AA-C3 Bearing|Insulated deep groove ball bearings|deep groove ball bearings|Insulated bearing|current insulation bearing| 6220.J20AA.C3 Bearing
