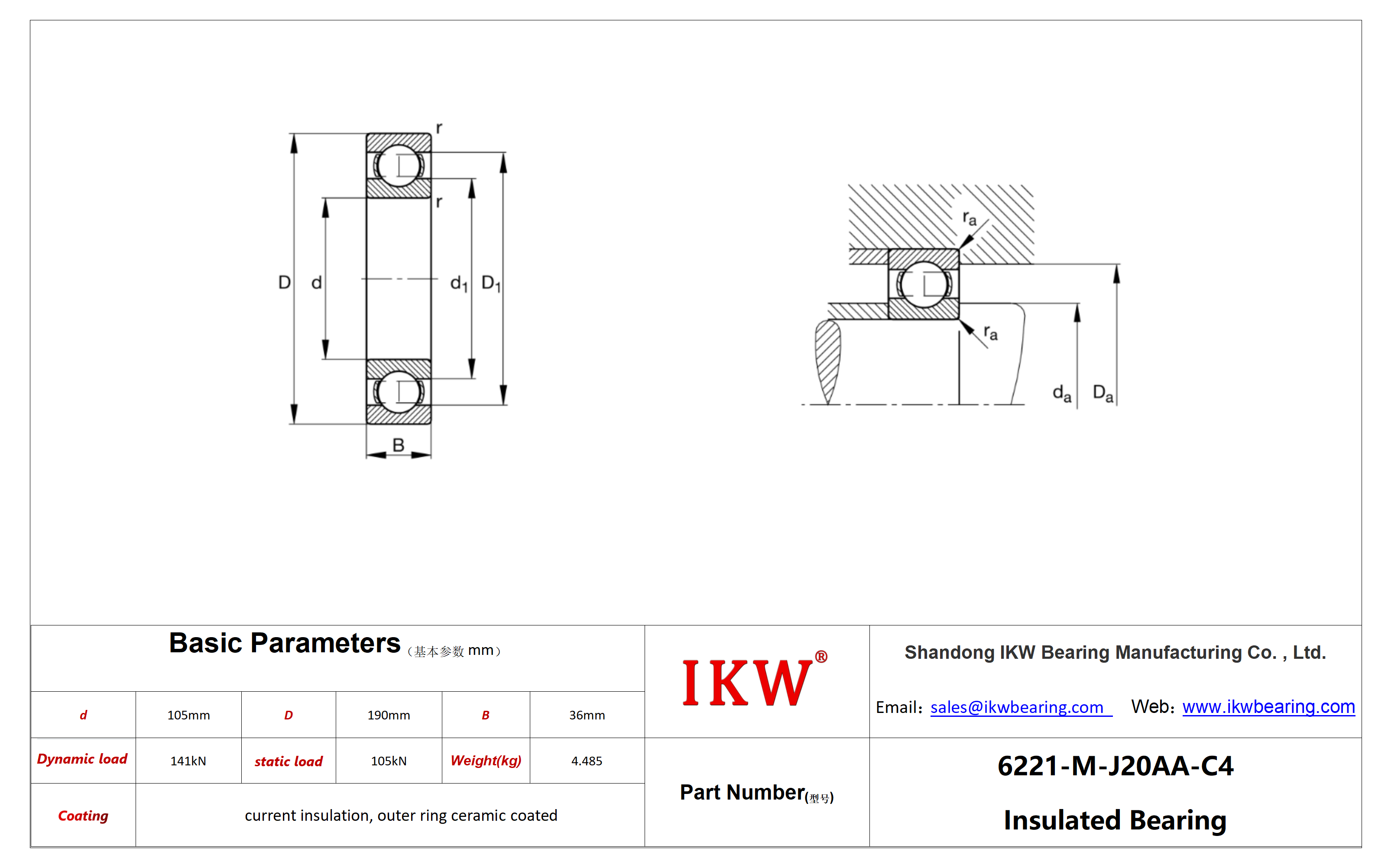

| Product Number | 6221-M-J20AA-C4 Bearing |
| Bore diameter(d) | 105 mm |
| Bore diameter(d) | 105 mm |
| Outside diameter(D) | 190 mm |
| Outside diameter(D) | 190 mm |
| Width(B) | 36 mm |
| Width(B) | 36 mm |
| Basic dynamic load rating(Cr) | 141.000 N |
| Basic dynamic load rating(Cr) | 141.000 N |
| Basic static load rating(Cor) | 105.000 N |
| Basic static load rating(Cor) | 105.000 N |
| Limiting speed(nG) | 6.100 1/min |
| Limiting speed(nG) | 6.100 1/min |
| Reference speed(nϑr) | 4.650 1/min |
| Reference speed(nϑr) | 4.650 1/min |
| Weight(mass) | 4,485 kg |
| Weight(mass) | 4,485 kg |
| Cage | M |
| Cage | M |
| Lubricant | without |
| Lubricant | without |
| Radial internal clearance | C4 |
| Radial internal clearance | C4 |
| Coating | J20AA |
| Coating | J20AA |
| da | 117 mm |
| da | 117 mm |
| Da | 178 mm |
| Da | 178 mm |
6221-M-J20AA-C4 Bearing|Insulated deep groove ball bearings|deep groove ball bearings|Insulated bearing|current insulation bearing| 6221.M.J20AA.C4 Bearing
