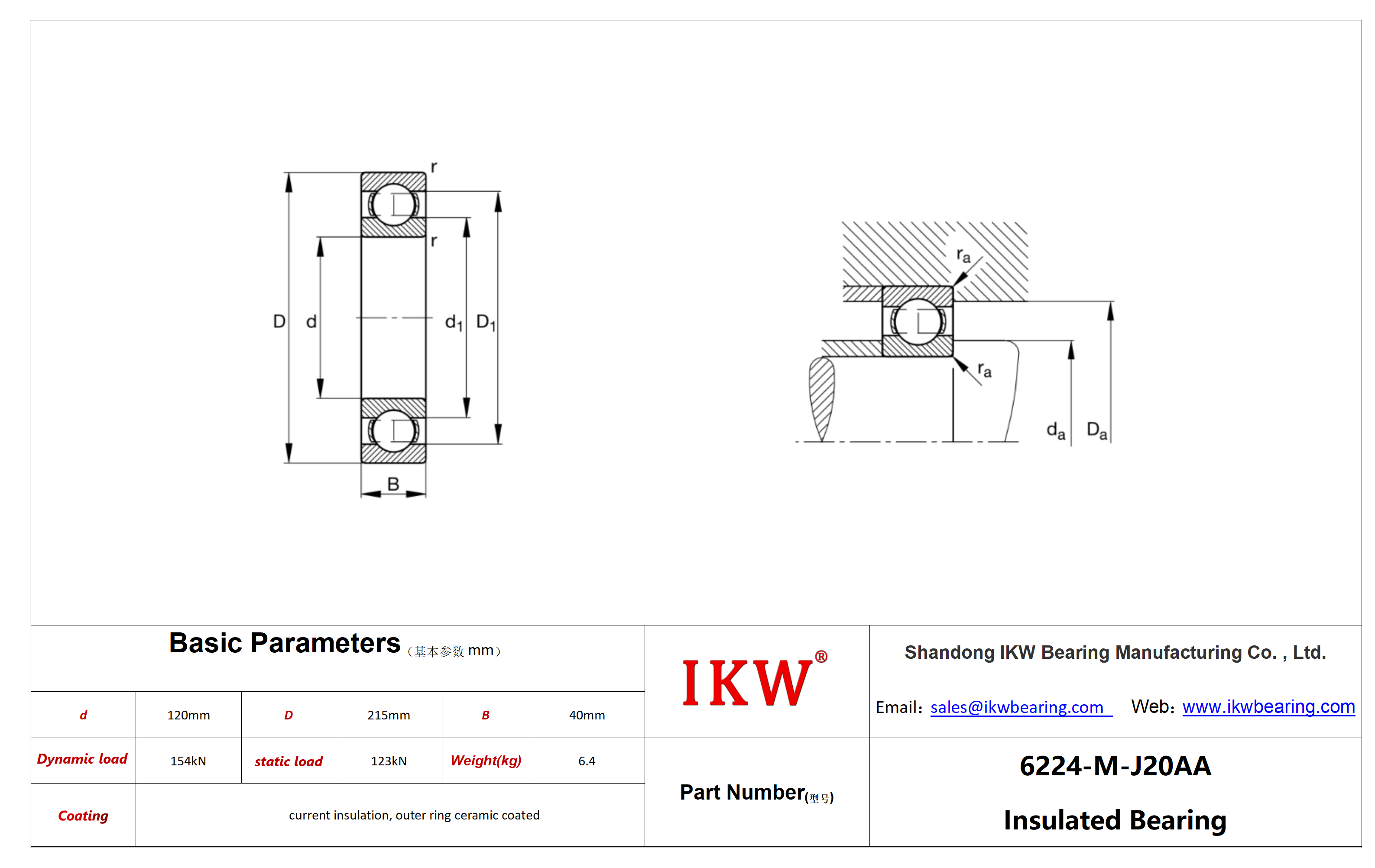

| Product Number | 6224-M-J20AA Bearing |
| Bore diameter(d) | 120 mm |
| Bore diameter(d) | 120 mm |
| Outside diameter(D) | 215 mm |
| Outside diameter(D) | 215 mm |
| Width(B) | 40 mm |
| Width(B) | 40 mm |
| Basic dynamic load rating(Cr) | 154.000 N |
| Basic dynamic load rating(Cr) | 154.000 N |
| Basic static load rating(Cor) | 123.000 N |
| Basic static load rating(Cor) | 123.000 N |
| Limiting speed(nG) | 5.500 1/min |
| Limiting speed(nG) | 5.500 1/min |
| Reference speed(nϑr) | 4.250 1/min |
| Reference speed(nϑr) | 4.250 1/min |
| Weight(mass) | 6,4 kg |
| Weight(mass) | 6,4 kg |
| Cage | M |
| Cage | M |
| Lubricant | without |
| Lubricant | without |
| Radial internal clearance | CN |
| Radial internal clearance | CN |
| Coating | J20AA |
| Coating | J20AA |
| da | 132 mm |
| da | 132 mm |
| Da | 203 mm |
| Da | 203 mm |
6224-M-J20AA Bearing|Insulated deep groove ball bearings|deep groove ball bearings|Insulated bearing|current insulation bearing| 6224.M.J20AA bearing
