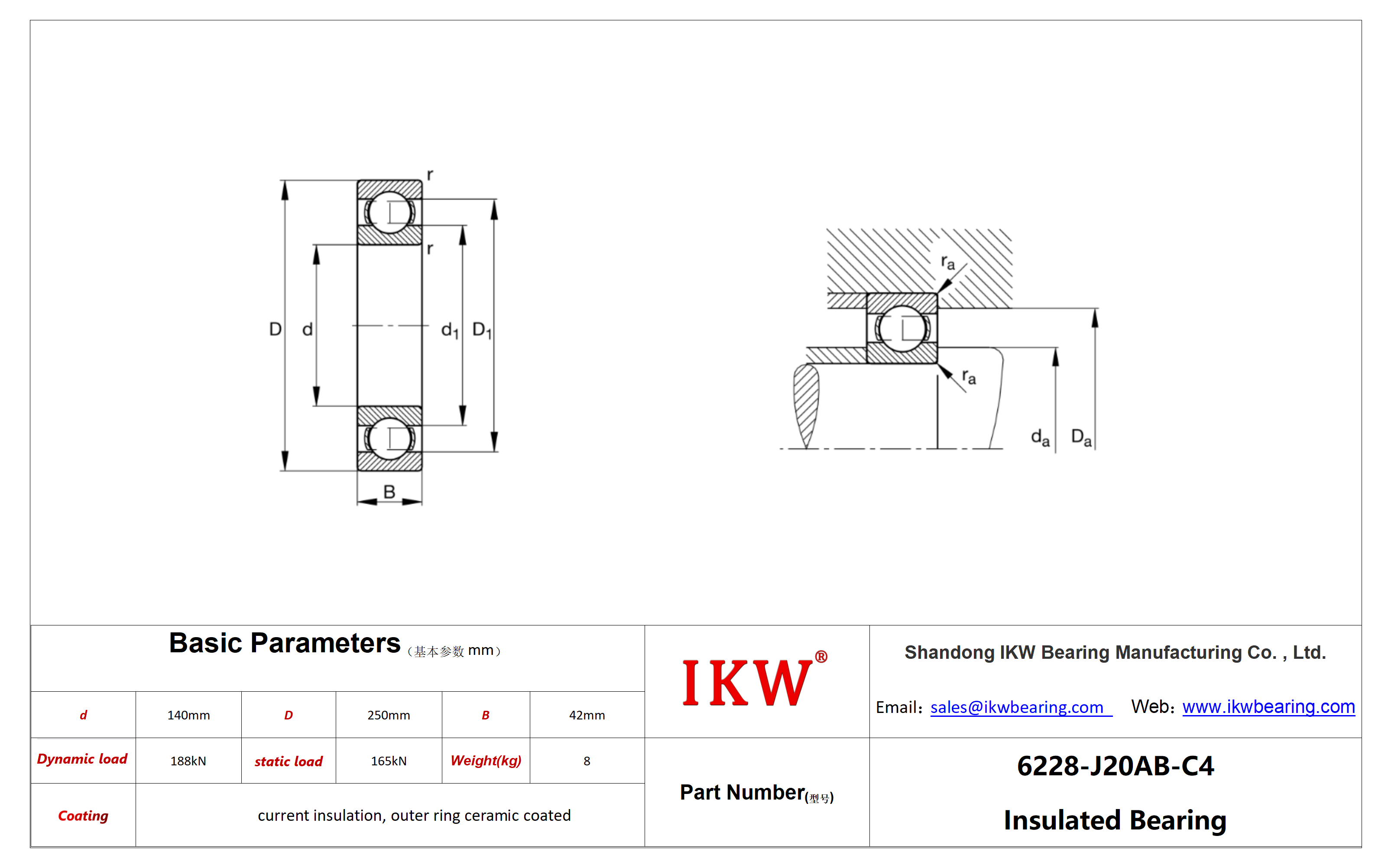

| Product Number | 6228-J20AB-C4 Bearing |
| Bore diameter(d) | 140 mm |
| Outside diameter(D) | 250 mm |
| Width(B) | 42 mm |
| Basic dynamic load rating(Cr) | 188.000 N |
| Basic static load rating(Cor) | 165.000 N |
| Limiting speed(nG) | 3.600 1/min |
| Reference speed(nϑr) | 3.600 1/min |
| Weight(mass) | 8 kg |
| Cage | JN |
| Lubricant | without |
| Radial internal clearance | C4 |
| Coating | J20AB |
| da | 154 mm |
| Da | 236 mm |
6228-J20AB-C4 Bearing|Insulated deep groove ball bearings|deep groove ball bearings|Insulated bearing|current insulation bearing| 6228.J20AB.C4 Bearing
