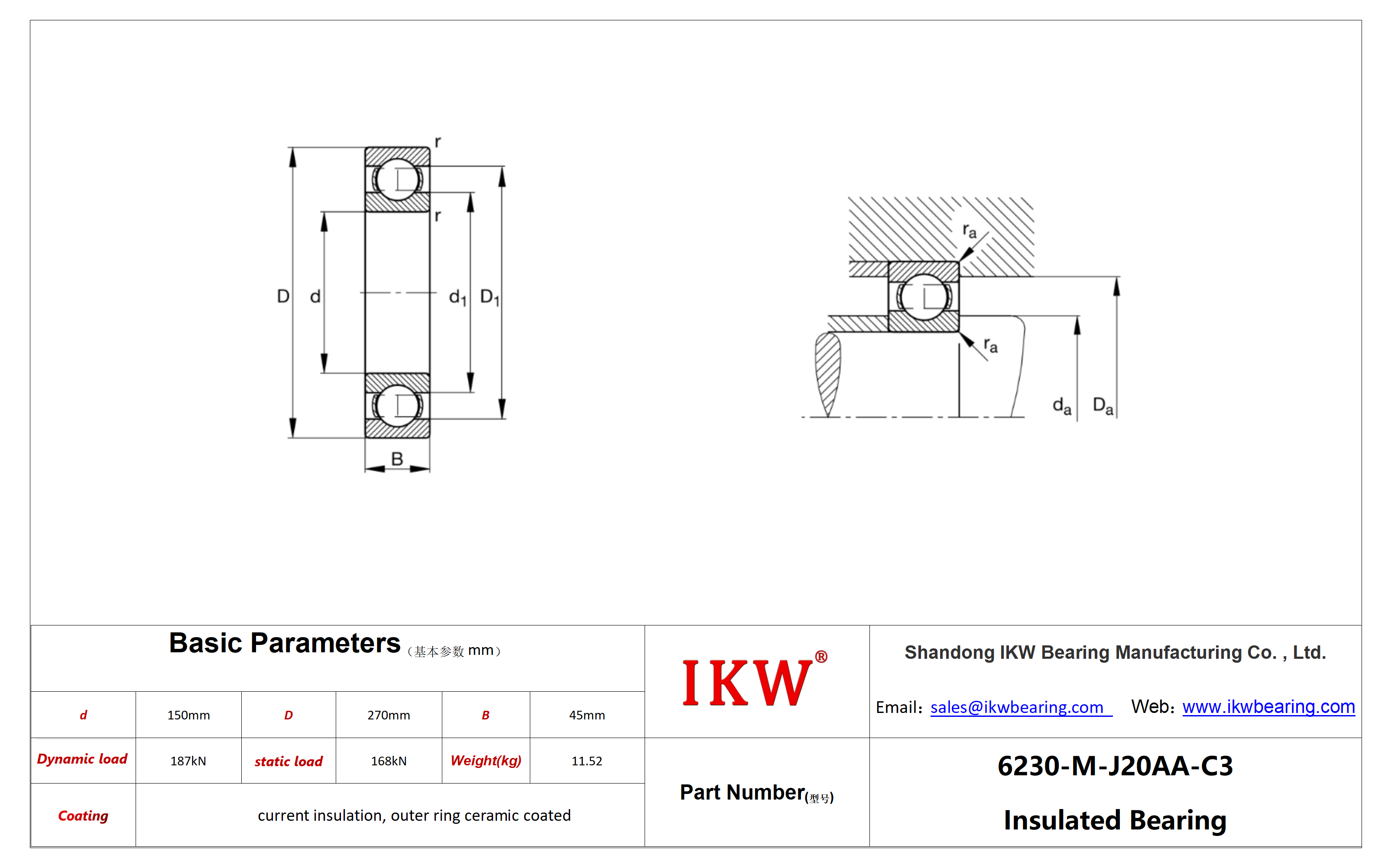

| Product Number | 6230-M-J20AA-C3 Bearing |
| Bore diameter(d) | 150 mm |
| Bore diameter(d) | 150 mm |
| Outside diameter(D) | 270 mm |
| Outside diameter(D) | 270 mm |
| Width(B) | 45 mm |
| Width(B) | 45 mm |
| Basic dynamic load rating(Cr) | 187.000 N |
| Basic dynamic load rating(Cr) | 187.000 N |
| Basic static load rating(Cor) | 168.000 N |
| Basic static load rating(Cor) | 168.000 N |
| Limiting speed(nG) | 4.350 1/min |
| Limiting speed(nG) | 4.350 1/min |
| Reference speed(nϑr) | 3.350 1/min |
| Reference speed(nϑr) | 3.350 1/min |
| Weight(mass) | 11,52 kg |
| Weight(mass) | 11,52 kg |
| Cage | M |
| Cage | M |
| Lubricant | without |
| Lubricant | without |
| Radial internal clearance | C3 |
| Radial internal clearance | C3 |
| Coating | J20AA |
| Coating | J20AA |
| da | 164 mm |
| da | 164 mm |
| Da | 256 mm |
| Da | 256 mm |
6230-M-J20AA-C3 Bearing|Insulated deep groove ball bearings|deep groove ball bearings|Insulated bearing|current insulation bearing| 6230.M.J20AA.C3 Bearing
