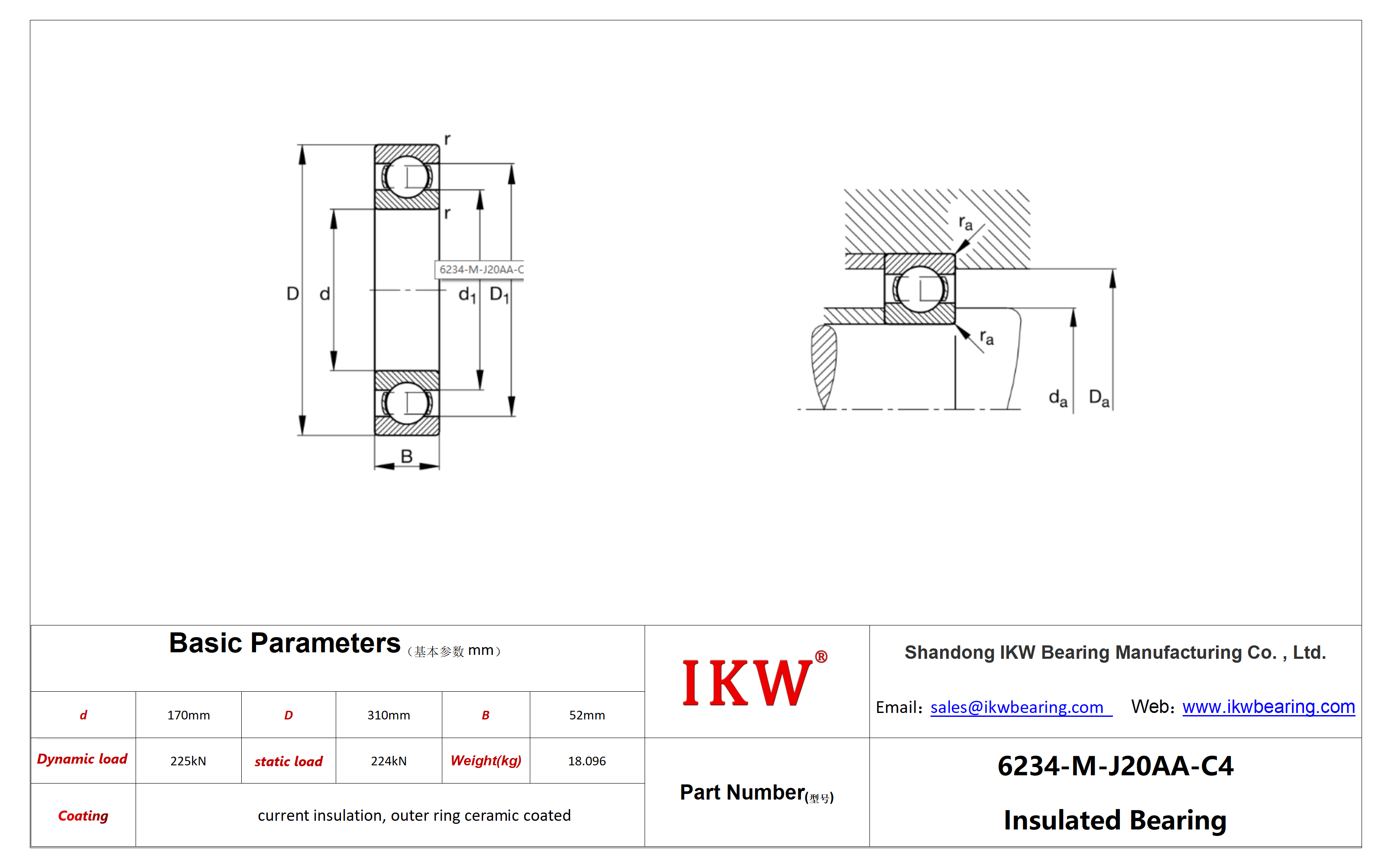

| Product Number | 6234-M-J20AA-C4 Bearing |
| Bore diameter(d) | 170 mm |
| Outside diameter(D) | 310 mm |
| Width(B) | 52 mm |
| Basic dynamic load rating(Cr) | 225.000 N |
| Basic static load rating(Cor) | 224.000 N |
| Limiting speed(nG) | 3.800 1/min |
| Reference speed(nϑr) | 2.950 1/min |
| Weight(mass) | 18,096 kg |
| Cage | M |
| Lubricant | without |
| Radial internal clearance | C4 |
| Coating | J20AA |
| da | 187 mm |
| Da | 293 mm |
6234-M-J20AA-C4 Bearing|Insulated deep groove ball bearings|deep groove ball bearings|Insulated bearing|current insulation bearing| 6234.M.J20AA.C4 Bearing
