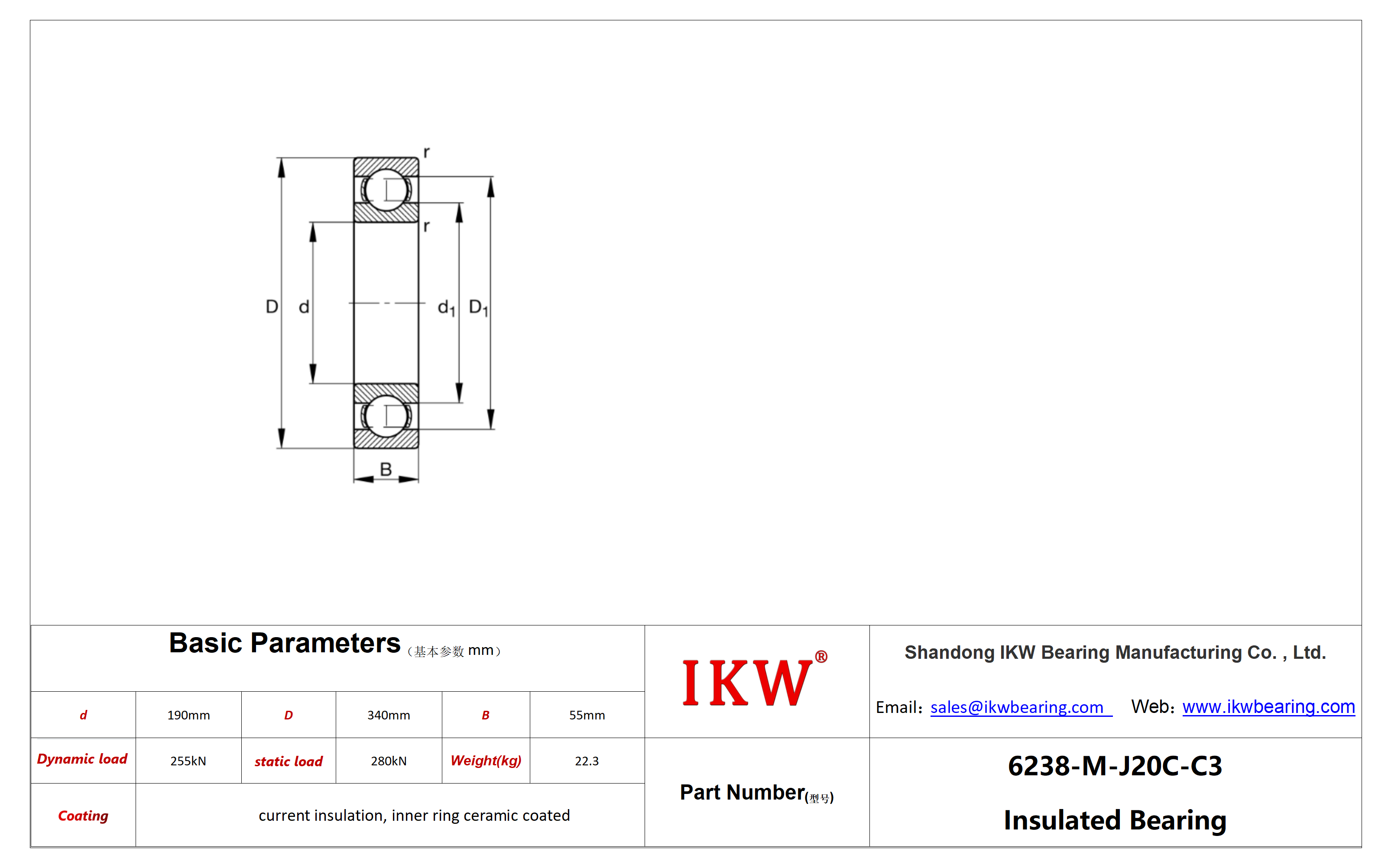

| Product Number | 6238-M-J20C-C3 Bearing |
| Bore diameter(d) | 190 mm |
| Outside diameter(D) | 340 mm |
| Width(B) | 55 mm |
| Basic dynamic load rating(Cr) | 255.000 N |
| Basic static load rating(Cor) | 280.000 N |
| Limiting speed(nG) | 3.350 1/min |
| Reference speed(nϑr) | 2.600 1/min |
| Weight(mass) | 22,3 kg |
| Cage | M |
| Lubricant | without |
| Radial internal clearance | C3 |
| Coating | J20C |
| da | 207 mm |
| Da | 323 mm |
6238-M-J20C-C3 Bearing|Insulated deep groove ball bearings|deep groove ball bearings|Insulated bearing|current insulation bearing| 6238.M.J20C.C3 Bearing
