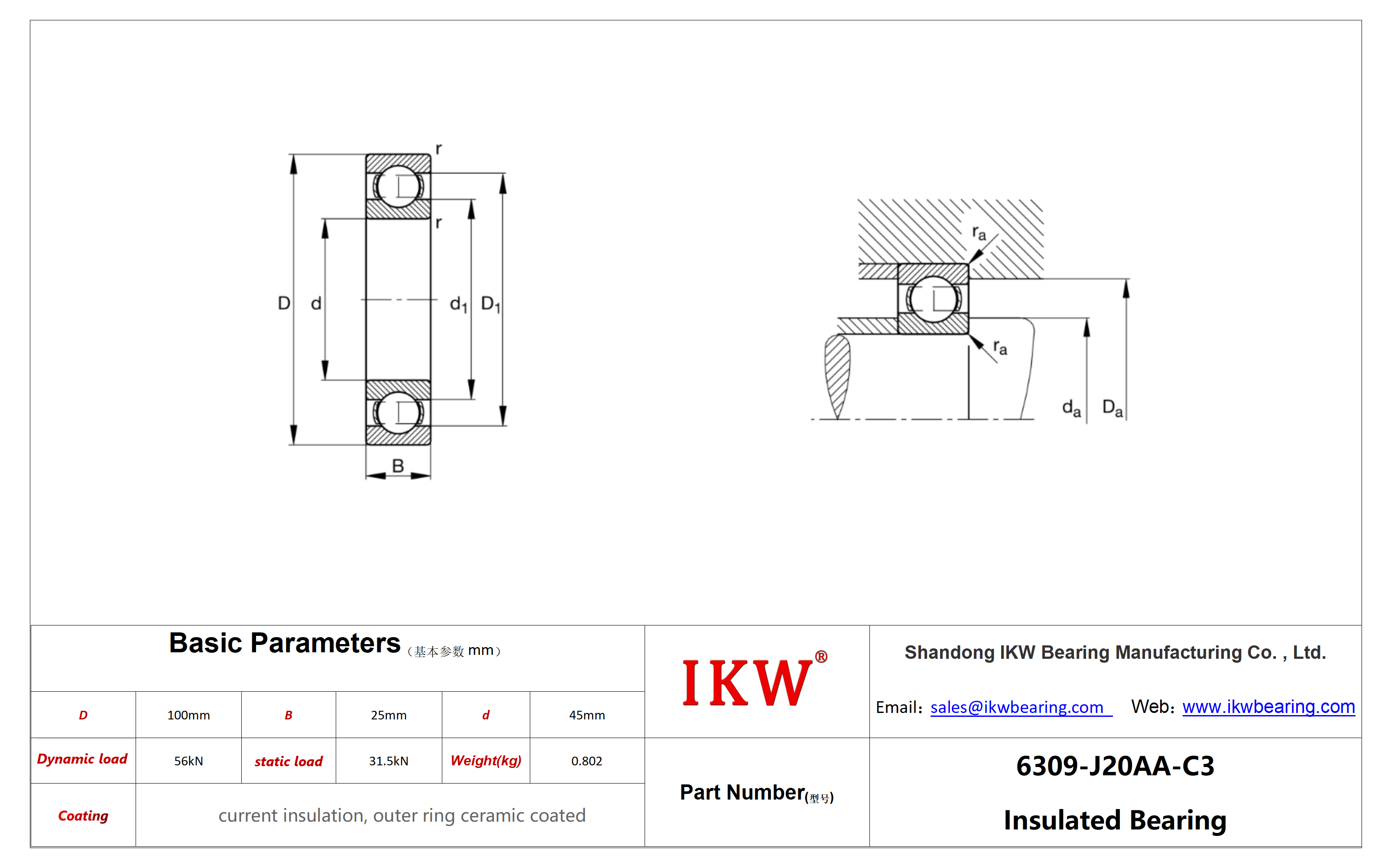

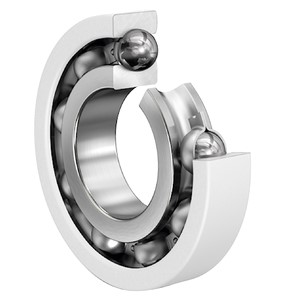

| Product Number | 6309-J20AA-C3 Bearing |
| Bore diameter(d) | 45 mm |
| Outside diameter(D) | 100 mm |
| Width(B) | 25 mm |
| Basic dynamic load rating(Cr) | 56.000 N |
| Basic static load rating(Cor) | 31.500 N |
| Limiting speed(nG) | 2.240 N |
| Reference speed(nϑr) | 9.500 1/min |
| Weight(mass) | 8.200 1/min |
| Cage | 0,802 kg |
| Lubricant | without |
| Radial internal clearance | C3 |
| Coating | J20AA |
| da | 54 mm |
| Da | 91 mm |
6309-J20AA-C3 Bearing|Insulated deep groove ball bearings|deep groove ball bearings|Insulated bearing|current insulation bearing| 6309.J20AA.C3 Bearing
