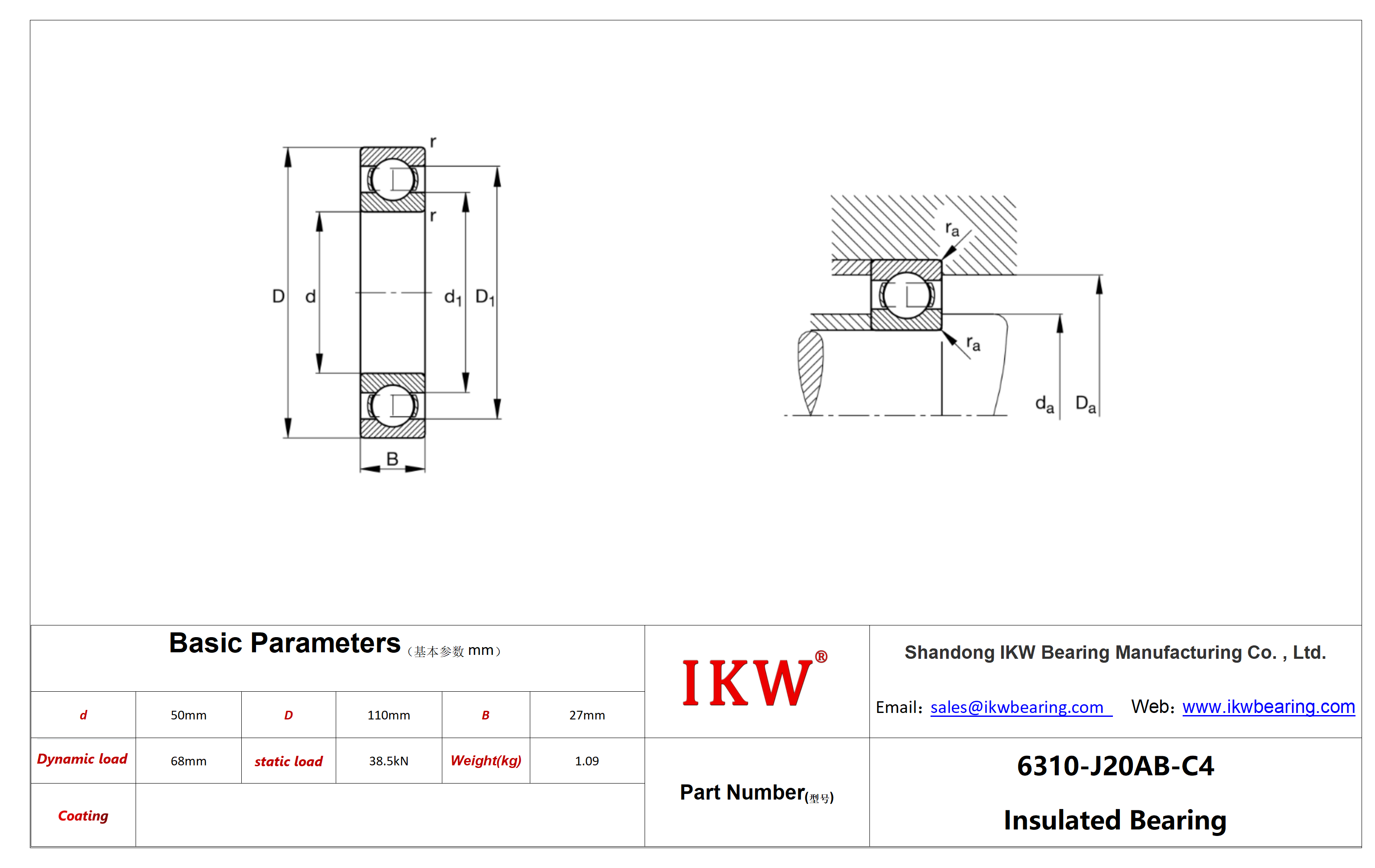

| Product Number | 6310-J20AB-C4 Bearing |
| Bore diameter(d) | 50 mm |
| Outside diameter(D) | 110 mm |
| Width(B) | 27 mm |
| Basic dynamic load rating(Cr) | 68.000 N |
| Basic static load rating(Cor) | 38.500 N |
| Limiting speed(nG) | 9.500 1/min |
| Reference speed(nϑr) | 7.700 1/min |
| Weight(mass) | 1,09 kg |
| Cage | JN |
| Lubricant | without |
| Radial internal clearance | C4 |
| Coating | Z |
| da | 61 mm |
| Da | 99 mm |
6310-J20AB-C4 Bearing|Insulated deep groove ball bearings|deep groove ball bearings|Insulated bearing|current insulation bearing| 6310.J20AB.C4 Bearing
