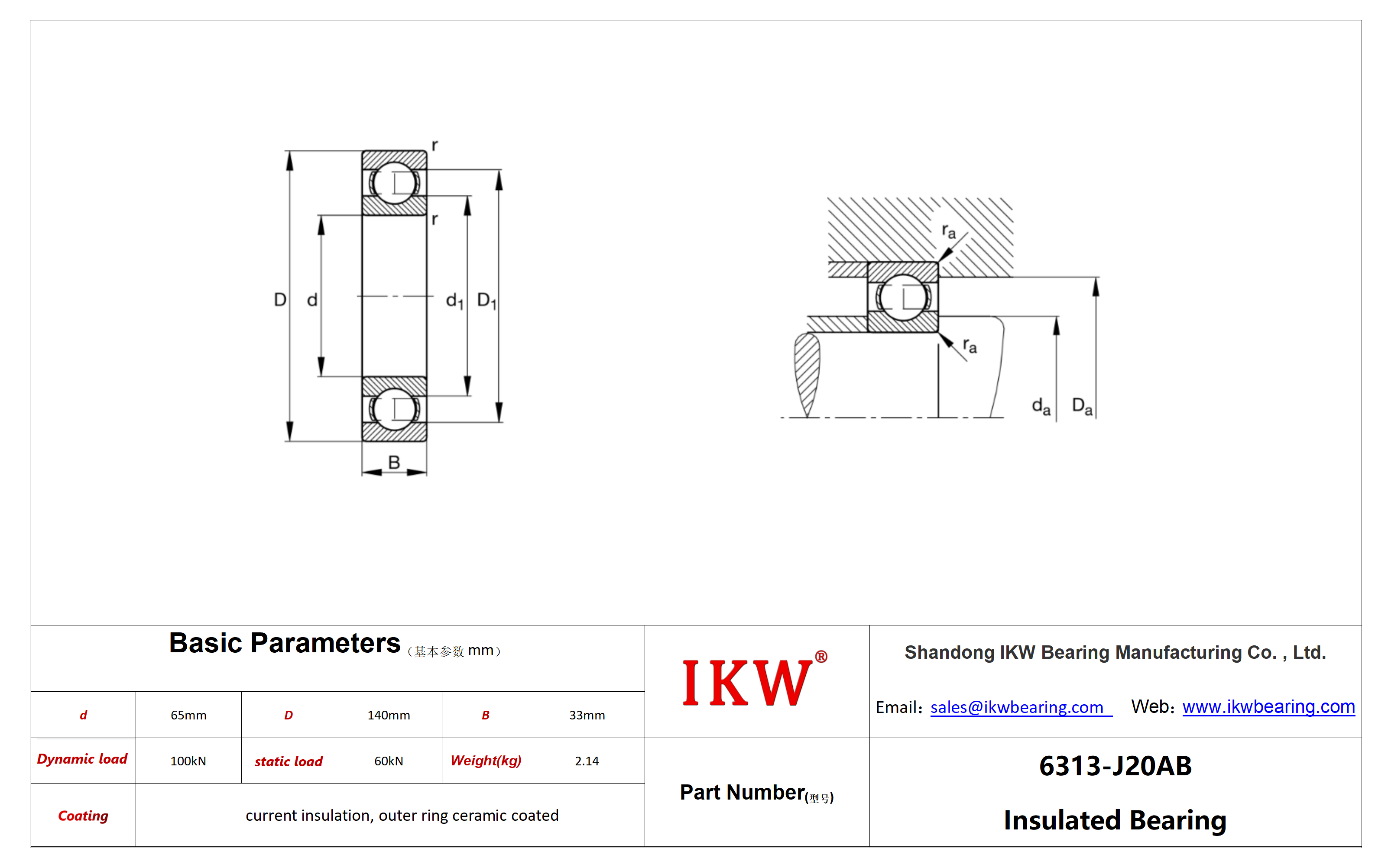

| Product Number | 6313-J20AB Bearing |
| Bore diameter(d) | 65 mm |
| Outside diameter(D) | 140 mm |
| Width(B) | 33 mm |
| Basic dynamic load rating(Cr) | 100.000 N |
| Basic static load rating(Cor) | 60.000 N |
| Limiting speed(nG) | 7.300 1/min |
| Reference speed(nϑr) | 6.400 1/min |
| Weight(mass) | 2,14 kg |
| Cage | JN |
| Lubricant | without |
| Radial internal clearance | CN |
| Coating | J20AB |
| da | 77 mm |
| Da | 128 mm |
6313-J20AB Bearing|Insulated deep groove ball bearings|deep groove ball bearings|Insulated bearing|current insulation bearing| 6313.J20AB bearing
