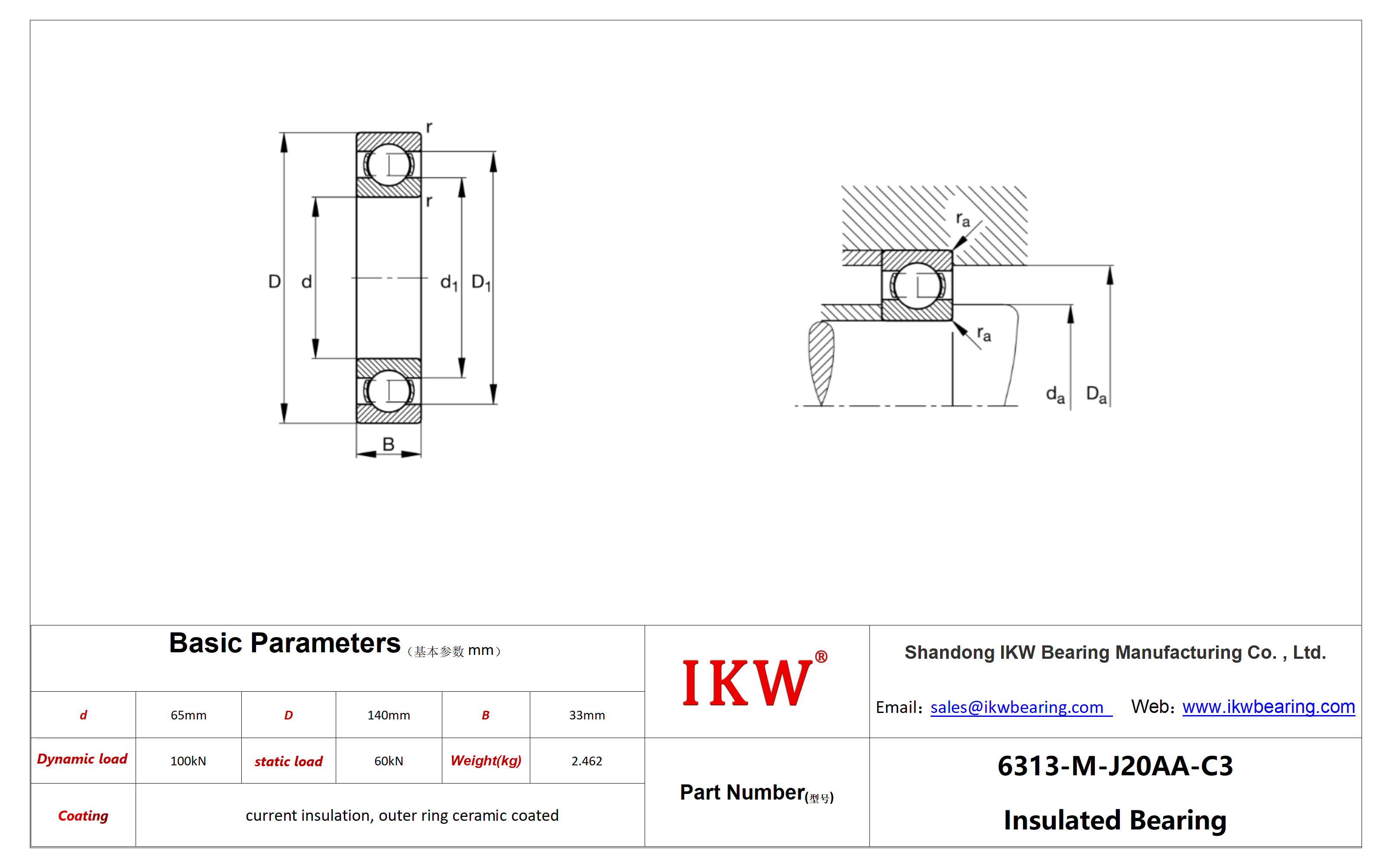

| Product Number | 6313-M-J20AA-C3 Bearing |
| Bore diameter(d) | 65 mm |
| Outside diameter(D) | 140 mm |
| Width(B) | 33 mm |
| Basic dynamic load rating(Cr) | 100.000 N |
| Basic static load rating(Cor) | 60.000 N |
| Limiting speed(nG) | 9.500 1/min |
| Reference speed(nϑr) | 6.400 1/min |
| Weight(mass) | 2,462 kg |
| Cage | M |
| Lubricant | without |
| Radial internal clearance | C3 |
| Coating | J20AA |
| da | 77 mm |
| Da | 128 mm |
| Da | 128 mm |
6313-M-J20AA-C3 Bearing|Insulated deep groove ball bearings|deep groove ball bearings|Insulated bearing|current insulation bearing| 6313.M.J20AA.C3 Bearing
