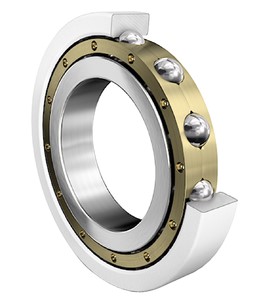

| Product Number | 6314-M-J20AB-C4 Bearing |
| Bore diameter(d) | 70 mm |
| Outside diameter(D) | 150 mm |
| Width(B) | 35 mm |
| Basic dynamic load rating(Cr) | 115.000 N |
| Basic static load rating(Cor) | 69.000 N |
| Limiting speed(nG) | 8.800 1/min |
| Reference speed(nϑr) | 6.100 1/min |
| Weight(mass) | 2,992 kg |
| Cage | M |
| Lubricant | without |
| Radial internal clearance | C4 |
| Coating | J20AB |
| da | 82 mm |
| Da | 138 mm |
6314-M-J20AB-C4 Bearing|Insulated deep groove ball bearings|deep groove ball bearings|Insulated bearing|current insulation bearing| 6314.M.J20AB.C4 Bearing
